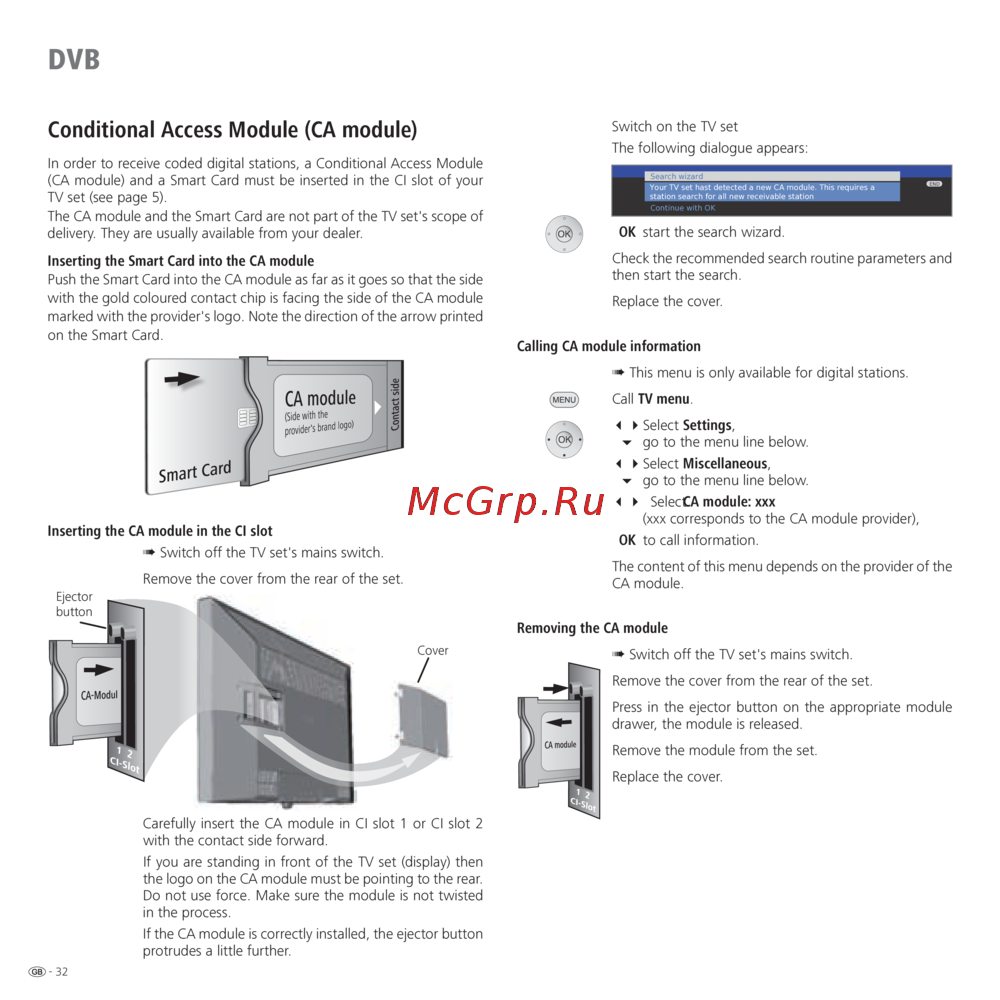

Conditional Access Module (CA module)
In order to receive coded digital stations, a Conditional Access Module
(CA module) and a Smart Card must be inserted in the CI slot of your
TV set (see page 5).
The CA module and the Smart Card are not part of the TV set's scope of
delivery. They are usually available from your dealer.
Inserting the Smart Card into the CA module
Push the Smart Card into the CA module as far as it goes so that the side
with the gold coloured contact chip is facing the side of the CA module
marked with the provider's logo. Note the direction of the arrow printed
on the Smart Card.
Inserting the CA module in the CI slot
➠ Switch off the TV set's mains switch.
Remove the cover from the rear of the set.
Carefully insert the CA module in CI slot 1 or CI slot 2
with the contact side forward.
If you are standing in front of the TV set (display) then
the logo on the CA module must be pointing to the rear.
Do not use force. Make sure the module is not twisted
in the process.
If the CA module is correctly installed, the ejector button
protrudes a little further.
Switch on the TV set
The following dialogue appears:
OK start the search wizard
.
Check the recommended search routine parameters and
then start the search.
Replace the cover.
Calling CA module information
➠ This menu is only available for digital stations.
Call
TV menu.
34 Select Settings,
6go to the menu line below.
34 Select Miscellaneous,
6go to the menu line below.
34 Select
CA module: xxx
(xxx corresponds to the CA module provider),
OKto call information.
The content of this menu depends on the provider of the
CA module.
Removing the CA module
➠ Switch off the TV set's mains switch.
Remove the cover from the rear of the set.
Press in the ejector button on the appropriate module
drawer, the module is released.
Remove the module from the set.
Replace the cover.
DVB
END
Your TV set hast detected a new CA module. This requires a
station search for all new receivable station
Search wizard
Continue with OK
Cover
Ejector
button
