- 52

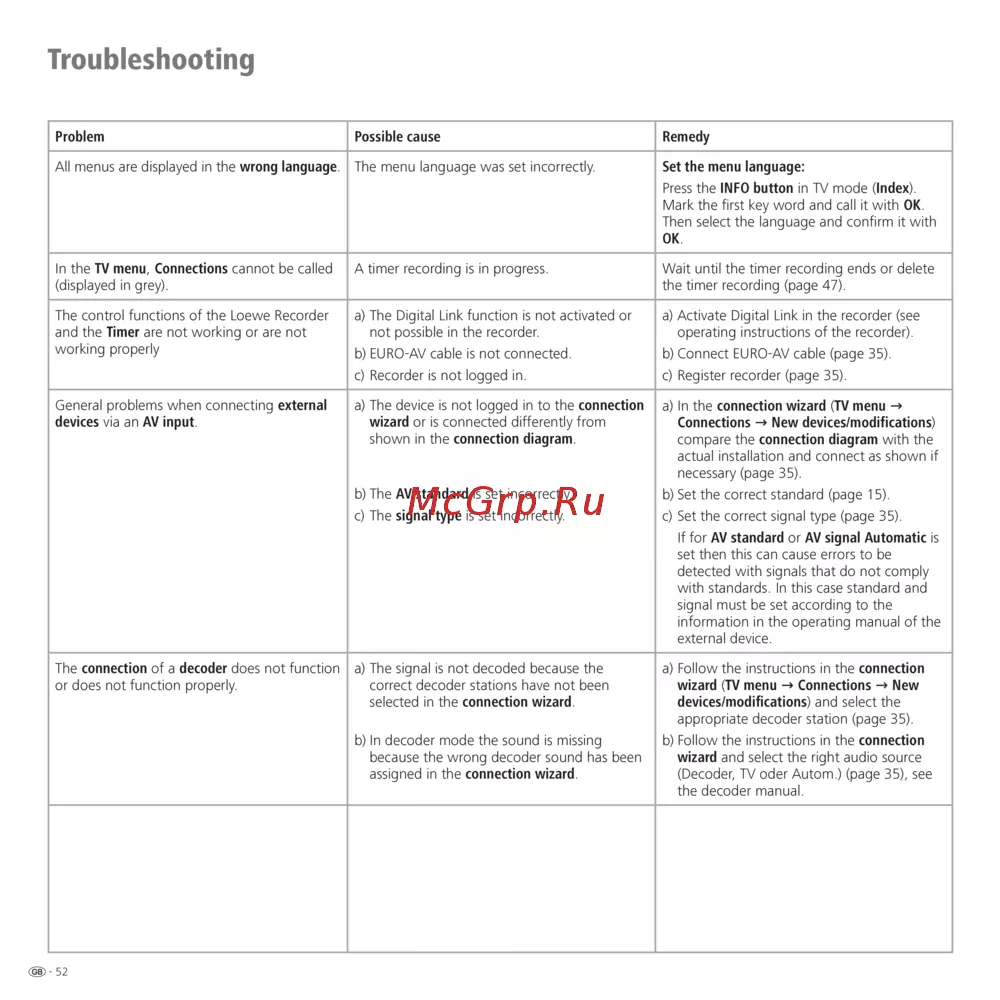

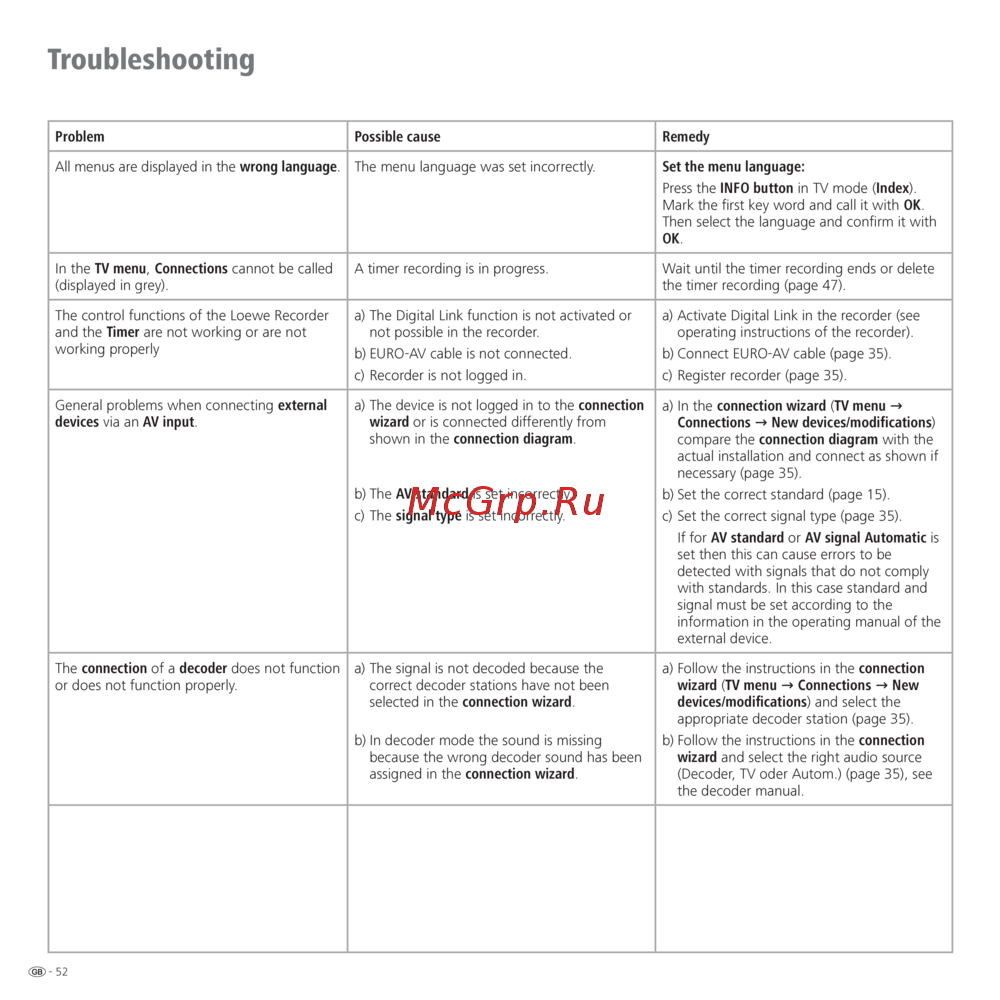

Troubleshooting
Problem Possible cause Remedy
All menus are displayed in the
wrong language. The menu language was set incorrectly. Set the menu language:
Press the
INFO button in TV mode (Index).
Mark the first key word and call it with
OK.
Then select the language and confirm it with
OK.
In the
TV menu, Connections cannot be called
(displayed in grey).
A timer recording is in progress. Wait until the timer recording ends or delete
the timer recording (page 47).
The control functions of the Loewe Recorder
and the
Timer are not working or are not
working properly
a) The Digital Link function is not activated or
not possible in the recorder.
b) EURO-AV cable is not connected.
c) Recorder is not logged in.
a) Activate Digital Link in the recorder (see
operating instructions of the recorder).
b) Connect EURO-AV cable (page 35).
c) Register recorder (page 35).
General problems when connecting
external
devices via an AV input.
a) The device is not logged in to the
connection
wizard or is connected differently from
shown in the
connection diagram.
b) The
AV standard is set incorrectly.
c) The
signal type is set incorrectly.
a) In the
connection wizard (TV menu →
Connections → New devices/modifications)
compare the
connection diagram with the
actual installation and connect as shown if
necessary (page 35).
b) Set the correct standard (page 15).
c) Set the correct signal type (page 35).
If for AV standard or AV signal Automatic is
set then this can cause errors to be
detected with signals that do not comply
with standards. In this case standard and
signal must be set according to the
information in the operating manual of the
external device.
The
connection of a decoder does not function
or does not function properly.
a) The signal is not decoded because the
correct decoder stations have not been
selected in the
connection wizard.
b) In decoder mode the sound is missing
because the wrong decoder sound has been
assigned in the
connection wizard.
a) Follow the instructions in the
connection
wizard (TV menu → Connections → New
devices/modifications) and select the
appropriate decoder station (page 35).
b) Follow the instructions in the
connection
wizard and select the right audio source
(Decoder, TV oder Autom.) (page 35), see
the decoder manual.
