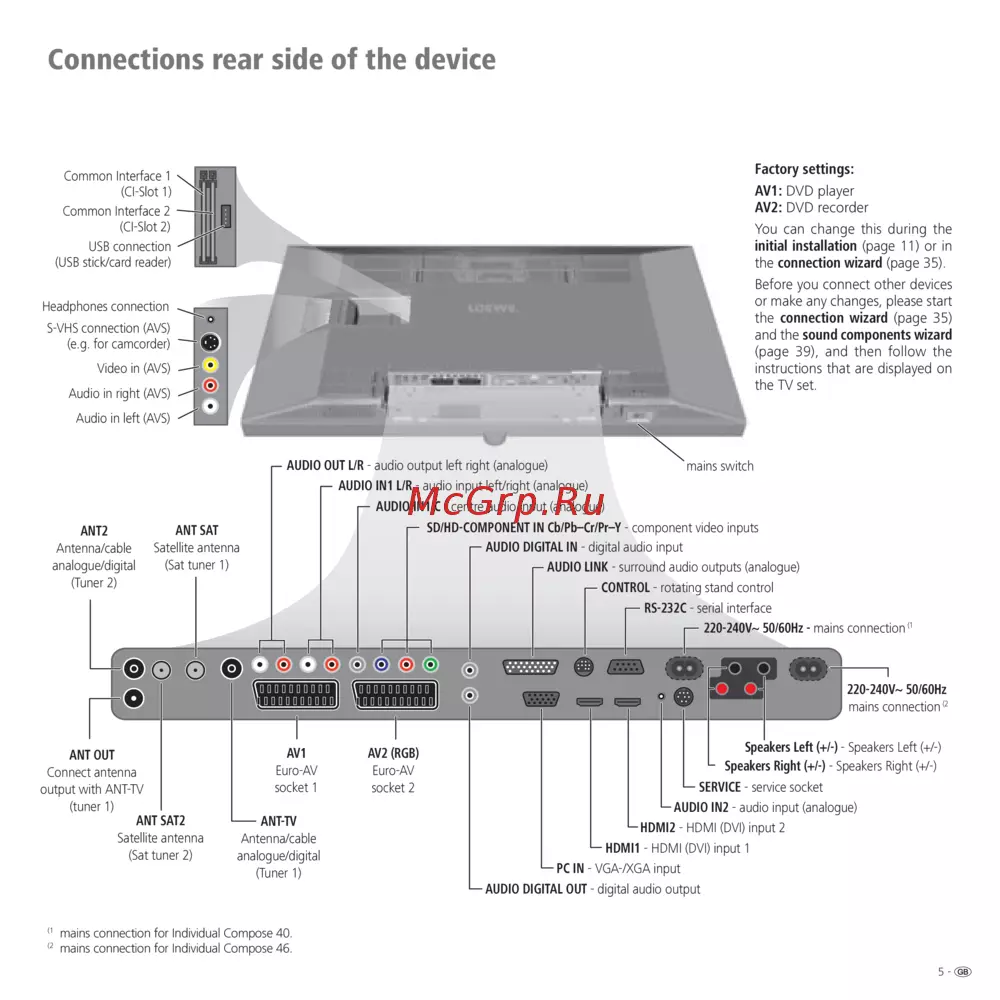

Connections rear side of the device
(1
mains connection for Individual Compose 40.
(2
mains connection for Individual Compose 46.
ANT OUT
Connect antenna
output with ANT-TV
(tuner 1)
ANT-TV
Antenna/cable
analogue/digital
(Tuner 1)
mains switch
CONTROL - rotating stand control
RS-232C - serial interface
AUDIO IN1 L/R - audio input left/right (analogue)
AUDIO OUT L/R - audio output left right (analogue)
ANT SAT2
Satellite antenna
(Sat tuner 2)
ANT2
Antenna/cable
analogue/digital
(Tuner 2)
AV1
Euro-AV
socket 1
AV2 (RGB)
Euro-AV
socket 2
220-240V~ 50/60Hz
mains connection
(2
SERVICE - service socket
PC IN - VGA-/XGA input
HDMI2 - HDMI (DVI) input 2
AUDIO DIGITAL IN - digital audio input
AUDIO DIGITAL OUT - digital audio output
SD/HD-COMPONENT IN Cb/Pb–Cr/Pr–Y - component video inputs
Headphones connection
Common Interface 1
(CI-Slot 1)
S-VHS connection (AVS)
(e.g. for camcorder)
Video in (AVS)
Audio in right (AVS)
Audio in left (AVS)
AUDIO IN1 C - centre audio input (analogue)
AUDIO LINK - surround audio outputs (analogue)
HDMI1 - HDMI (DVI) input 1
USB connection
(USB stick/card reader)
ANT SAT
Satellite antenna
(Sat tuner 1)
AUDIO IN2 - audio input (analogue)
Speakers Right (+/-) - Speakers Right (+/-)
Speakers Left (+/-) - Speakers Left (+/-)
Common Interface 2
(CI-Slot 2)
220-240V~ 50/60Hz - mains connection
(1
Factory settings:
AV1: DVD player
AV2: DVD recorder
You can change this during the
initial installation (page 11) or in
the
connection wizard (page 35).
Before you connect other devices
or make any changes, please start
the
connection wizard (page 35)
and the
sound components wizard
(page 39), and then follow the
instructions that are displayed on
the TV set.
DR+
Button +:
Station up
in the menu: to the right
On/Off button:
Switch on from the standby mode
Switch off from the standby mode
Button – :
Station down
in the menu: to the left
Display:
= Standby
= Operation
= Operation without on-screen display
(Radio, EPG data capture or timer recording)
Button R:
Radio on/off
(1
(back to TV mode).
Switch on the radio from the standby mode
in the menu: down
Button M:
Call the menu
in the menu: up/down
The mains switch is
on the bottom of the TV
DR+ = Digital Recorder integrated, but inactive
(no recording, no playback)
DR+ = Digital Recorder active (offset TV viewing
or archive playback)
DR+ = Digital Recorder active
(archive recording)
Display DR+:
