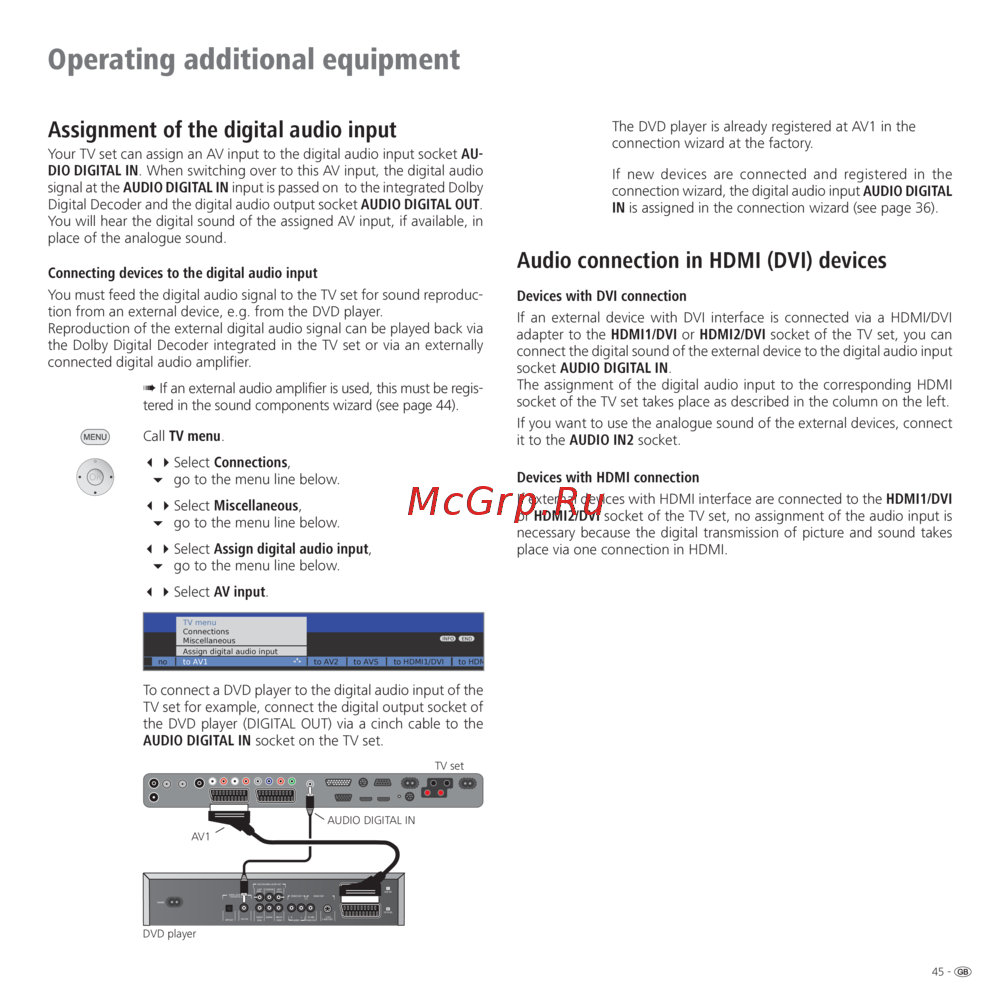

45 -
Assignment of the digital audio input
Your TV set can assign an AV input to the digital audio input socket AU-
DIO DIGITAL IN. When switching over to this AV input, the digital audio
signal at the
AUDIO DIGITAL IN input is passed on to the integrated Dolby
Digital Decoder and the digital audio output socket
AUDIO DIGITAL OUT.
You will hear the digital sound of the assigned AV input, if available, in
place of the analogue sound.
Connecting devices to the digital audio input
You must feed the digital audio signal to the TV set for sound reproduc
-
tion from an external device, e.g. from the DVD player.
Reproduction of the external digital audio signal can be played back via
the Dolby Digital Decoder integrated in the TV set or via an externally
connected digital audio amplifier.
➠ If an external audio amplifier is used, this must be regis-
tered in the sound components wizard (see page 44).
Call
TV menu.
34Select Connections,
6 go to the menu line below.
34Select Miscellaneous,
6 go to the menu line below.
34Select Assign digital audio input,
6 go to the menu line below.
34Select AV input.
To connect a DVD player to the digital audio input of the
TV set for example, connect the digital output socket of
the DVD player (DIGITAL OUT) via a cinch cable to the
AUDIO DIGITAL IN socket on the TV set.
S-VIDEO OUT
DIG OUT
REAR
MAINS
L
R
(CVBS) (Y/C)
VIDEO OUT
AUDIO
STEREO OUT VIDEO OUT
I
AUX-
I
/O
II
TO TV-
I
/O
OPT OUT
RIGHT SUBW.
REAR
RIGHT
FRONT
LEFT CENTER
MULTICHANNEL AUDIO OUT
DIGITAL AUDIO OUT
PCM/MPEG2/AC3/DTS
LEFT
FRONT
TV set
DVD player
AUDIO DIGITAL IN
AV1
The DVD player is already registered at AV1 in the
connection wizard at the factory.
If new devices are connected and registered in the
connection wizard, the digital audio input
AUDIO DIGITAL
IN is assigned in the connection wizard (see page 36).
Audio connection in HDMI (DVI) devices
Devices with DVI connection
If an external device with DVI interface is connected via a HDMI/DVI
adapter to the
HDMI1/DVI or HDMI2/DVI socket of the TV set, you can
connect the digital sound of the external device to the digital audio input
socket
AUDIO DIGITAL IN.
The assignment of the digital audio input to the corresponding HDMI
socket of the TV set takes place as described in the column on the left.
If you want to use the analogue sound of the external devices, connect
it to the
AUDIO IN2 socket.
Devices with HDMI connection
If external devices with HDMI interface are connected to the
HDMI1/DVI
or
HDMI2/DVI socket of the TV set, no assignment of the audio input is
necessary because the digital transmission of picture and sound takes
place via one connection in HDMI.
Operating additional equipment
to AV2
to AV1
Assign digital audio input
TV menu
Connections
Miscellaneous
to AVS to HDMI1/DVI to HDMI1/DVIno
END
INFO
