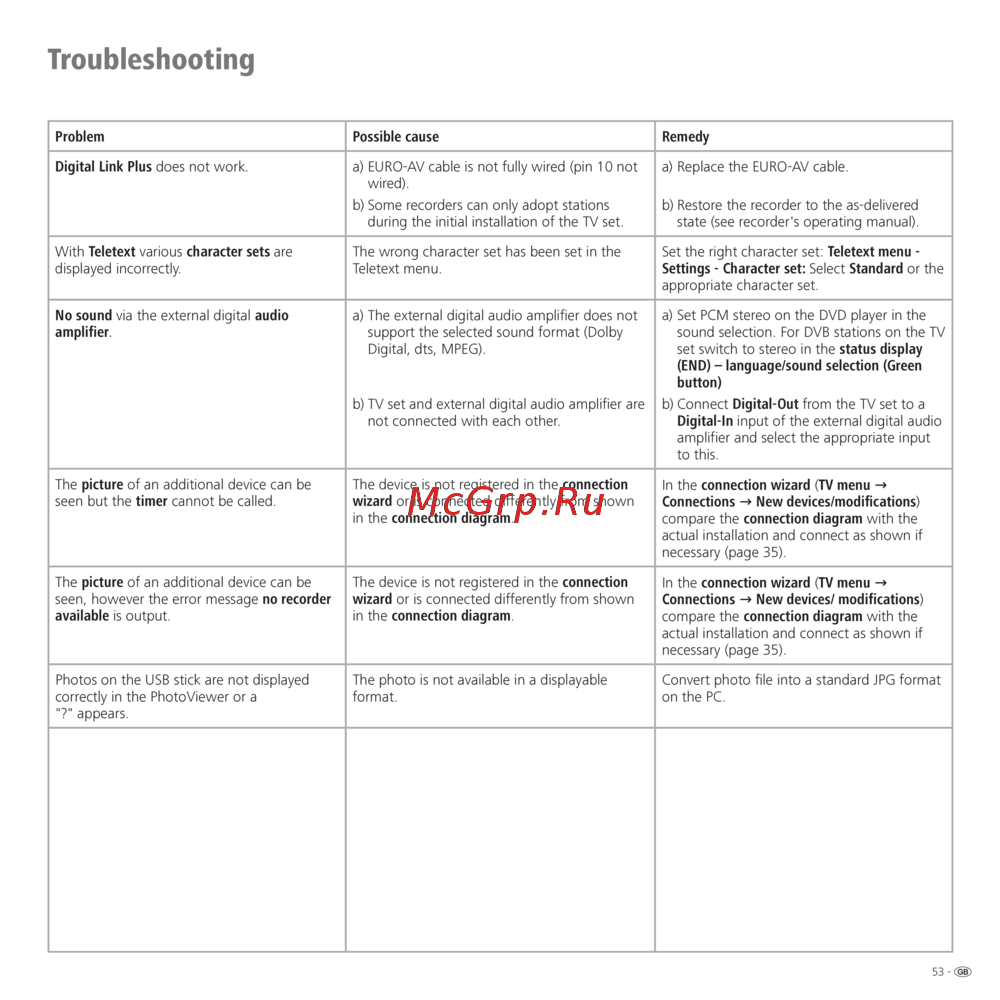

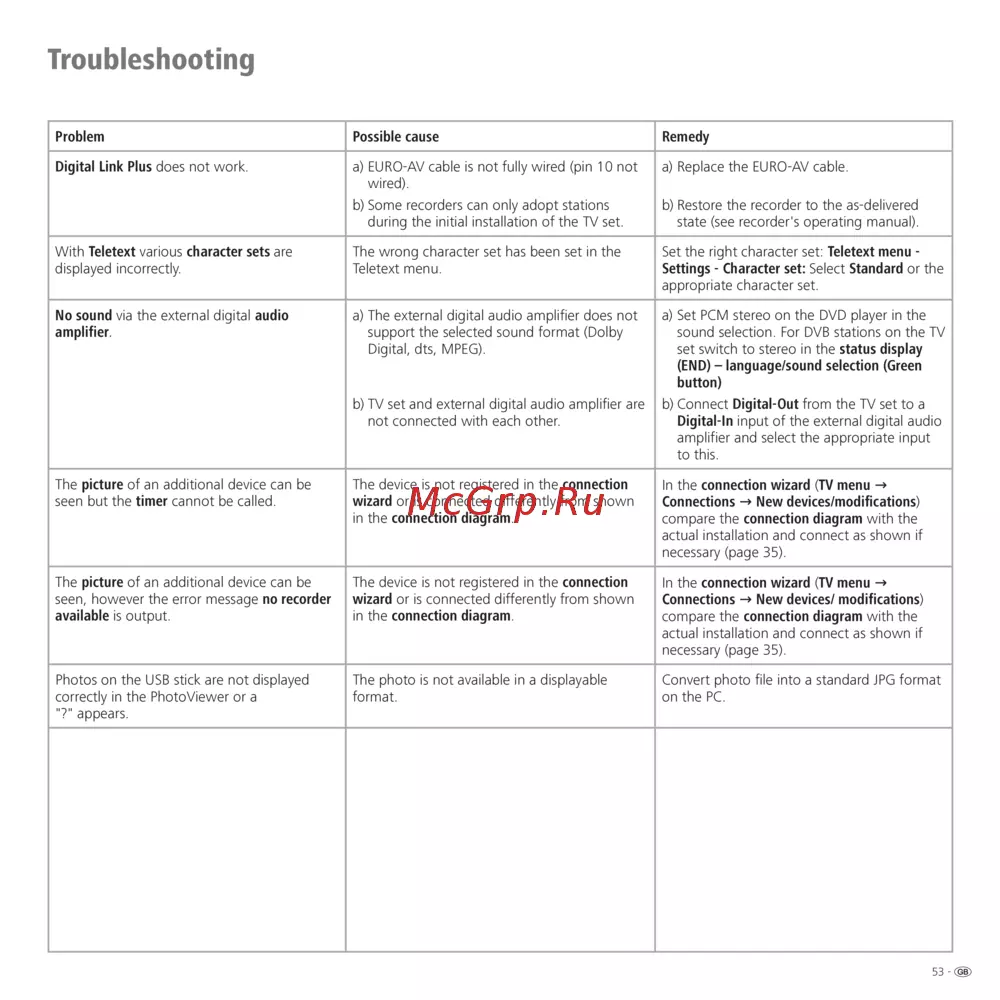

Loewe Individual 46 Compose Full-HD+ [53/60] Troubleshooting
![Loewe Individual 46 Compose Full-HD+ [53/60] Troubleshooting](/views2/1013726/page53/bg35.png)
53 -
Troubleshooting
Problem Possible cause Remedy
Digital Link Plus does not work. a) EURO-AV cable is not fully wired (pin 10 not
wired).
b) Some recorders can only adopt stations
during the initial installation of the TV set.
a) Replace the EURO-AV cable.
b) Restore the recorder to the as-delivered
state (see recorder's operating manual).
With
Teletext various character sets are
displayed incorrectly.
The wrong character set has been set in the
Teletext menu.
Set the right character set:
Teletext menu -
Settings - Character set: Select Standard or the
appropriate character set.
No sound via the external digital audio
amplifier.
a) The external digital audio amplifier does not
support the selected sound format (Dolby
Digital, dts, MPEG).
b) TV set and external digital audio amplifier are
not connected with each other.
a) Set PCM stereo on the DVD player in the
sound selection. For DVB stations on the TV
set switch to stereo in the
status display
(END) – language/sound selection (Green
button)
b) Connect
Digital-Out from the TV set to a
Digital-In input of the external digital audio
amplifier and select the appropriate input
to this.
The
picture of an additional device can be
seen but the
timer cannot be called.
The device is not registered in the
connection
wizard or is connected differently from shown
in the
connection diagram.
In the
connection wizard (TV menu →
Connections → New devices/modifications)
compare the
connection diagram with the
actual installation and connect as shown if
necessary (page 35).
The
picture of an additional device can be
seen, however the error message
no recorder
available is output.
The device is not registered in the
connection
wizard or is connected differently from shown
in the
connection diagram.
In the
connection wizard (TV menu →
Connections → New devices/ modifications)
compare the
connection diagram with the
actual installation and connect as shown if
necessary (page 35).
Photos on the USB stick are not displayed
correctly in the PhotoViewer or a
"?" appears.
The photo is not available in a displayable
format.
Convert photo file into a standard JPG format
on the PC.
