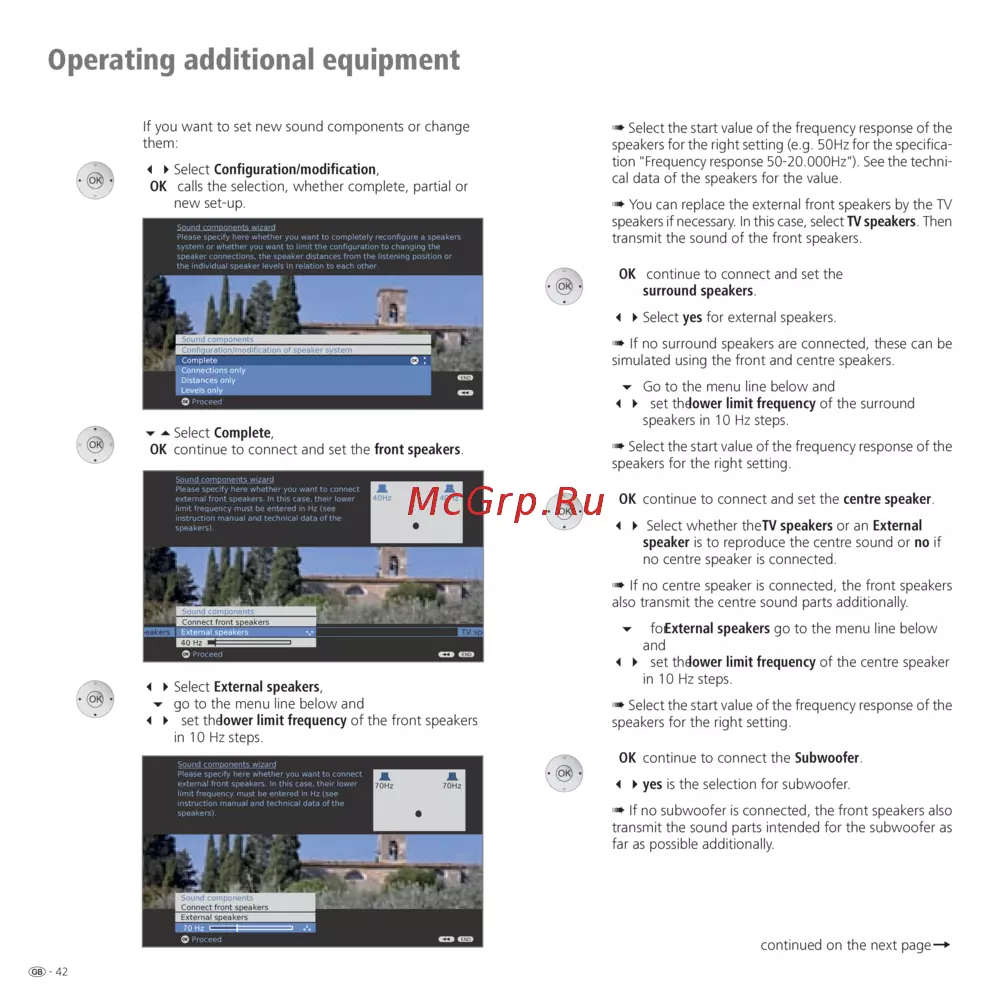

- 42
Operating additional equipment
If you want to set new sound components or change
them:
34 Select Configuration/modification,
OK calls the selection, whether complete, partial or
new set-up.
6 Select
Complete,
OK continue to connect and set the front speakers.
34 Select External speakers,
6go to the menu line below and
34set the
lower limit frequency of the front speakers
in 10 Hz steps.
➠ Select the start value of the frequency response of the
speakers for the right setting (e.g. 50Hz for the specifica
-
tion "Frequency response 50-20.000Hz"). See the techni
-
cal data of the speakers for the value.
➠ You can replace the external front speakers by the TV
speakers if necessary. In this case, select TV speakers. Then
transmit the sound of the front speakers
.
OK continue to connect and set the
surround speakers.
34 Select yes for external speakers.
➠ If no surround speakers are connected, these can be
simulated using the front and centre speakers
.
6Go to the menu line below and
34set the
lower limit frequency of the surround
speakers in 10 Hz steps
.
➠ Select the start value of the frequency response of the
speakers for the right setting.
OK continue to connect and set the
centre speaker.
34 Select whether the TV speakers or an External
speaker is to reproduce the centre sound or no if
no centre speaker is connected
.
➠ If no centre speaker is connected, the front speakers
also transmit the centre sound parts additionally.
6for
External speakers go to the menu line below
and
34set the
lower limit frequency of the centre speaker
in 10 Hz steps
.
➠ Select the start value of the frequency response of the
speakers for the right setting.
OK continue to connect the
Subwoofer.
34 yes is the selection for subwoofer.
➠ If no subwoofer is connected, the front speakers also
transmit the sound parts intended for the
subwoofer as
far as possible additionally.
continued on the next page
