11 -

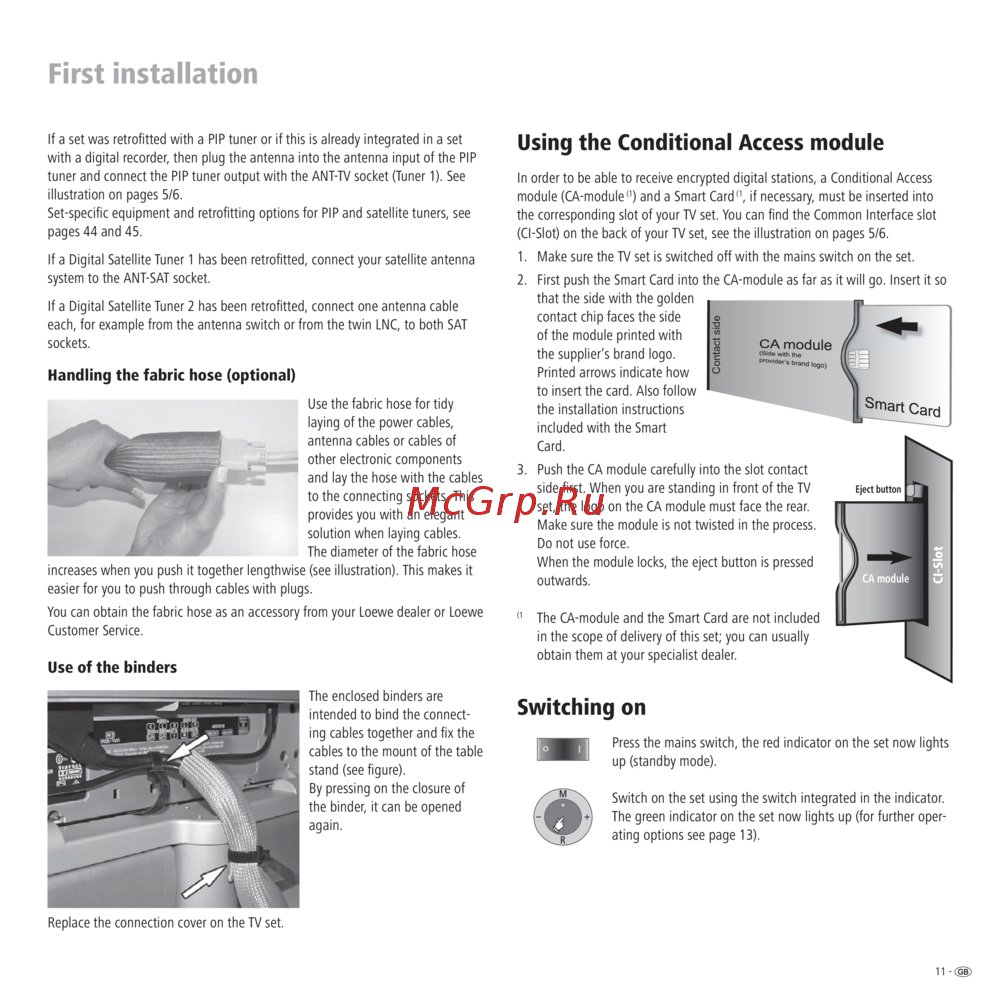

First installation
If a set was retrofitted with a PIP tuner or if this is already integrated in a set
with a digital recorder, then plug the antenna into the antenna input of the PIP
tuner and connect the PIP tuner output with the ANT-TV socket (Tuner 1). See
illustration on pages 5/6.
Set-specific equipment and retrofitting options for PIP and satellite tuners, see
pages 44 and 45.
If a Digital Satellite Tuner 1 has been retrofitted, connect your satellite antenna
system to the ANT-SAT socket.
If a Digital Satellite Tuner 2 has been retrofitted, connect one antenna cable
each, for example from the antenna switch or from the twin LNC, to both SAT
sockets.
Handling the fabric hose (optional)
Use the fabric hose for tidy
laying of the power cables,
antenna cables or cables of
other electronic components
and lay the hose with the cables
to the connecting sockets. This
provides you with an elegant
solution when laying cables.
The diameter of the fabric hose
increases when you push it together lengthwise (see illustration). This makes it
easier for you to push through cables with plugs.
You can obtain the fabric hose as an accessory from your Loewe dealer or Loewe
Customer Service.
Use of the binders
The enclosed binders are
intended to bind the connect-
ing cables together and fix the
cables to the mount of the table
stand (see figure).
By pressing on the closure of
the binder, it can be opened
again.
Replace the connection cover on the TV set.
Using the Conditional Access module
In order to be able to receive encrypted digital stations, a Conditional Access
module (CA-module
(1
) and a Smart Card
(1
, if necessary, must be inserted into
the corresponding slot of your TV set. You can find the Common Interface slot
(CI-Slot) on the back of your TV set, see the illustration on pages 5/6.
1. Make sure the TV set is switched off with the mains switch on the set.
2. First push the Smart Card into the CA-module as far as it will go. Insert it so
that the side with the golden
contact chip faces the side
of the module printed with
the supplier‘s brand logo.
Printed arrows indicate how
to insert the card. Also follow
the installation instructions
included with the Smart
Card.
3. Push the CA module carefully into the slot contact
side first. When you are standing in front of the TV
set, the logo on the CA module must face the rear.
Make sure the module is not twisted in the process.
Do not use force.
When the module locks, the eject button is pressed
outwards.
(1
The CA-module and the Smart Card are not included
in the scope of delivery of this set; you can usually
obtain them at your specialist dealer.
Switching on
Press the mains switch, the red indicator on the set now lights
up (standby mode).
Switch on the set using the switch integrated in the indicator.
The green indicator on the set now lights up (for further oper-
ating options see page 13).
Contact side
Eject button
CA module
CI-Slot
