Loewe Individual 26 Selection [5/46] Connections to rear panel
![Loewe Individual 26 Selection [5/46] Connections to rear panel](/views2/1013744/page5/bg5.png)
5 -
89374.003
SE RV IC E
VGA/XG A
HDTV/P C I N
AUDIO OUT
AUDI O D IGIT AL
IN
LR
OUT
AUDI O I N
L
SD/HD-COMPONENT IN
C/ P
rr
Y C/ P
bb
R
C
AV 2
RGB / Y UV
()
AV
1
ANT
-TV
ANT -S AT
13/18 V /350
mA
5 V /80
mA
HDMI DVI
()
220-240V~
50/60
Hz
Audio output left/right (analogue)
Audio input left/right (analogue)
Center Audio input (analogue)
Antenna/cable PIP tuner
(1
or satellite antenna
(Sat tuner 1)
(1
Euro-AV-
socket 1
Euro-AV-
socket 2
Socket for
power cable
Service socket
VGA/XGA input
HDMI (DVI) input
Digital audio input
Digital audio output
Component
video inputs
(Cb/Pb–Cr/Pr–Y)
Antenna output PIP tuner
(1
connect to tuner 1
Antenna/cable
analogue/digital
(tuner 1)
Common Interface
(CI-Slot)
Headphone connection
S-VHS connection (AVS)
(i.e. for camcorders)
Video input (AVS)
Audio input right
Audio input left
Rotating stand control
Satellite antenna
(Sat tuner 2)
(1
Individual 32:
Cover cannot
be opened.

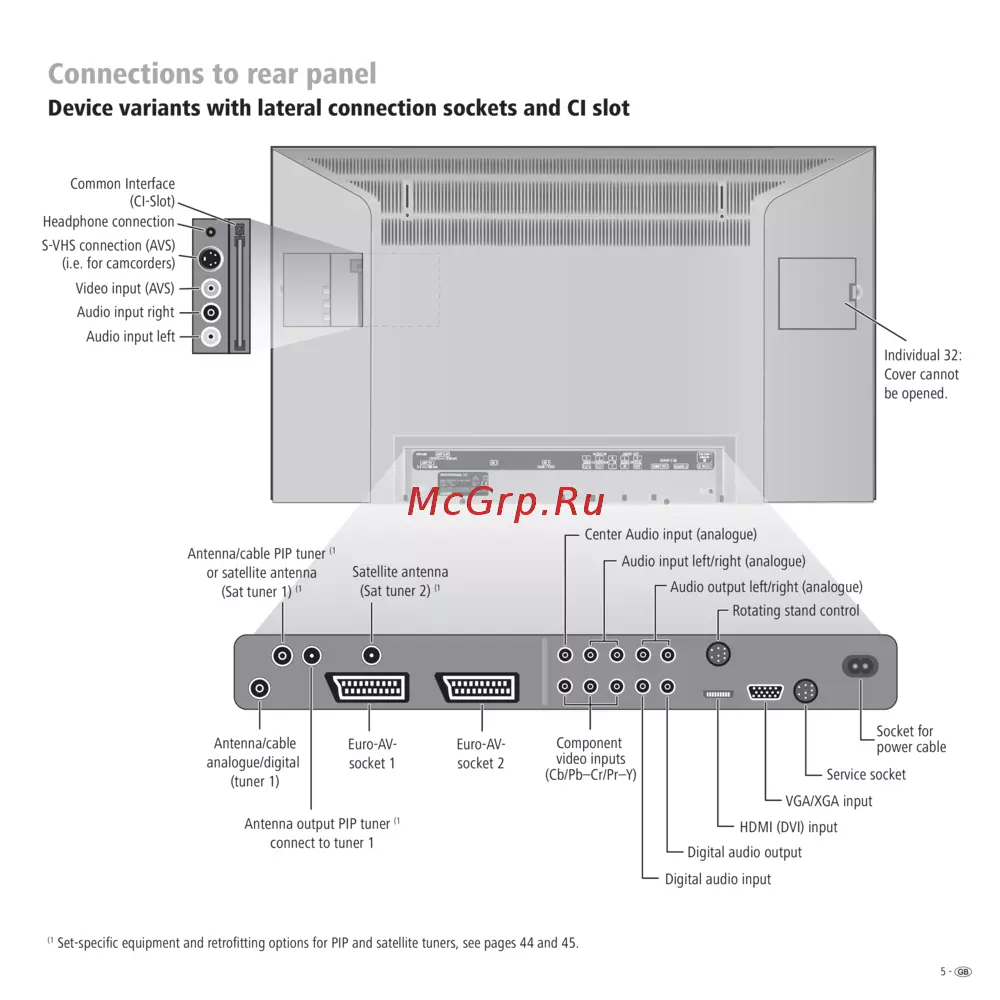

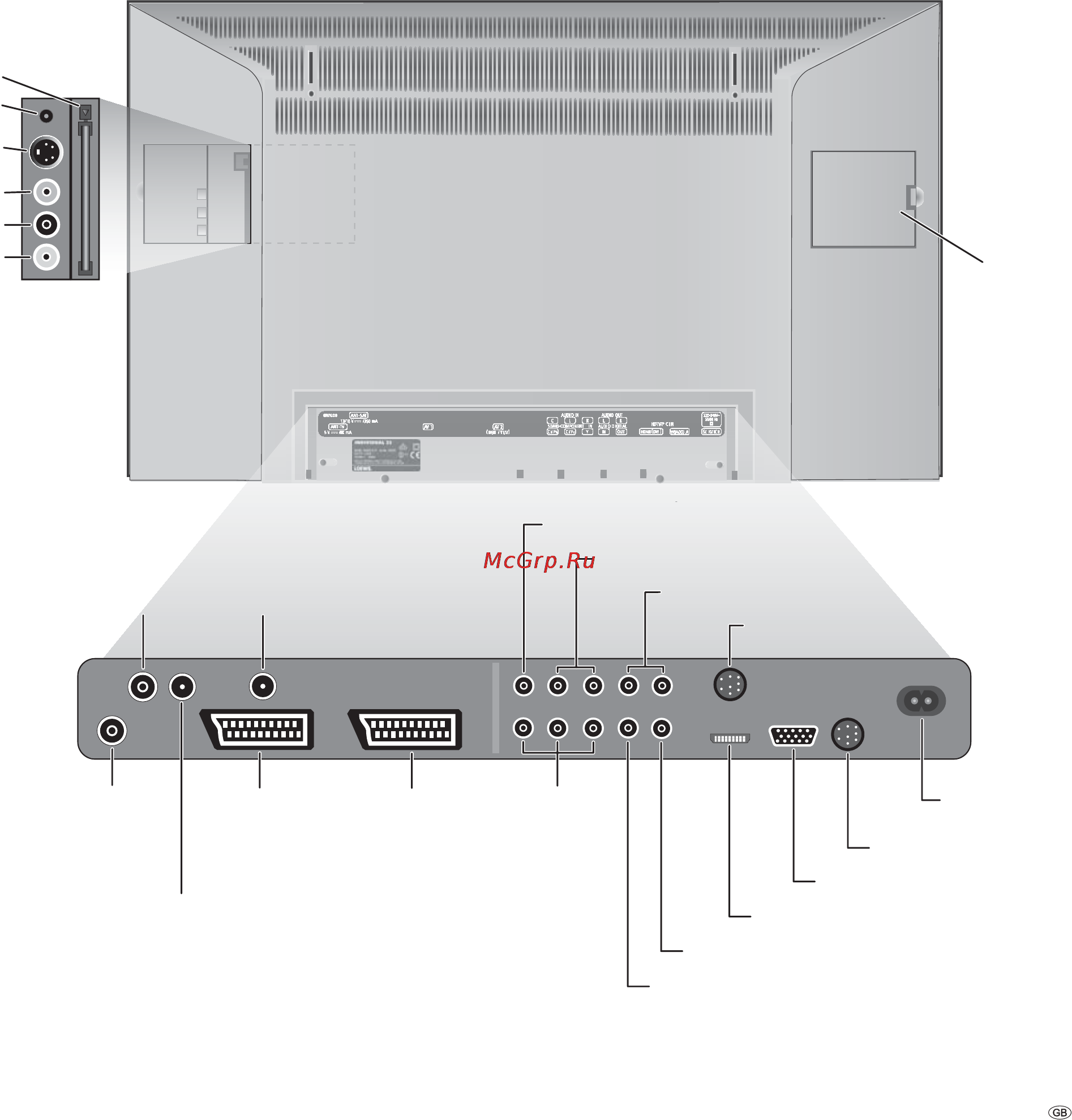

Connections to rear panel
(1
Set-specific equipment and retrofitting options for PIP and satellite tuners, see pages 44 and 45.
Device variants with lateral connection sockets and CI slot
