23 -

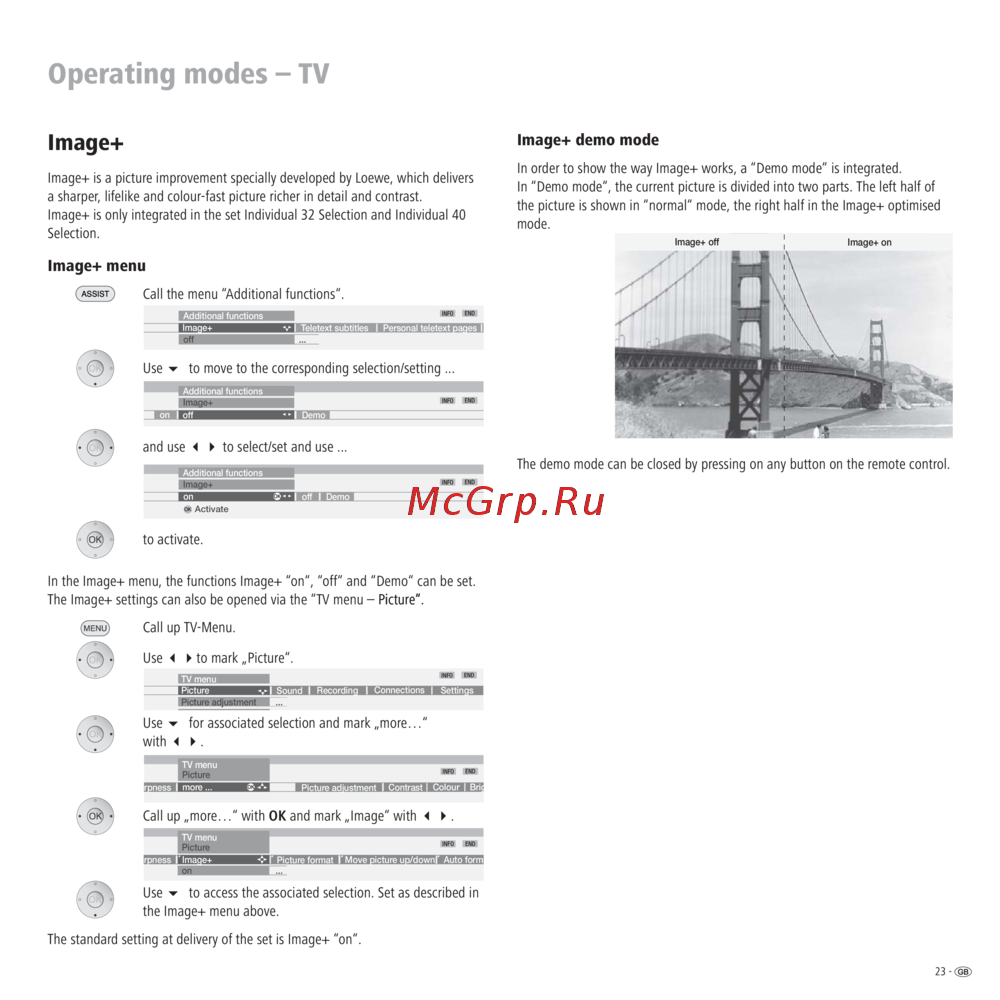

Operating modes – TV
Image+ demo mode
In order to show the way Image+ works, a “Demo mode“ is integrated.
In “Demo mode“, the current picture is divided into two parts. The left half of
the picture is shown in “normal“ mode, the right half in the Image+ optimised
mode.
The demo mode can be closed by pressing on any button on the remote control.
Image+
Image+ is a picture improvement specially developed by Loewe, which delivers
a sharper, lifelike and colour-fast picture richer in detail and contrast.
Image+ is only integrated in the set Individual 32 Selection and Individual 40
Selection.
Image+ menu
Call the menu “Additional functions“.
Use to move to the corresponding selection/setting ...
and use to select/set and use ...
to activate.
In the Image+ menu, the functions Image+ “on“, “off“ and “Demo“ can be set.
The Image+ settings can also be opened via the “TV menu – Picture“.– Picture“. Picture“.
Call up TV-Menu.
Use to mark „Picture“.
Use for associated selection and mark „more…“
with .
Call up „more…“ with OK and mark „Image“ with .
Use to access the associated selection. Set as described in
the Image+ menu above.
The standard setting at delivery of the set is Image+ “on“.
Image+
Teletext subtitles Personal teletext pages
Additional functions
off ...
INFO
END
Image+
Demo
INFO
END
Additional functions
off
on
Image+
Demo
on
INFO
END
Additional functions
off
OK
Activate
OK
Image+ off
Image+ on
Picture adjustment ...
INFO
END
Settings
Connections
Recording
Sound
TV menu
INFO
END
on ...
TV menu
Picture format
Move picture up/down
a
rpness Auto form
Image+
INFO
END
TV menu
Picture adjustment
Colour Bri
g
Contrast
a
rpness
more ...
OK
