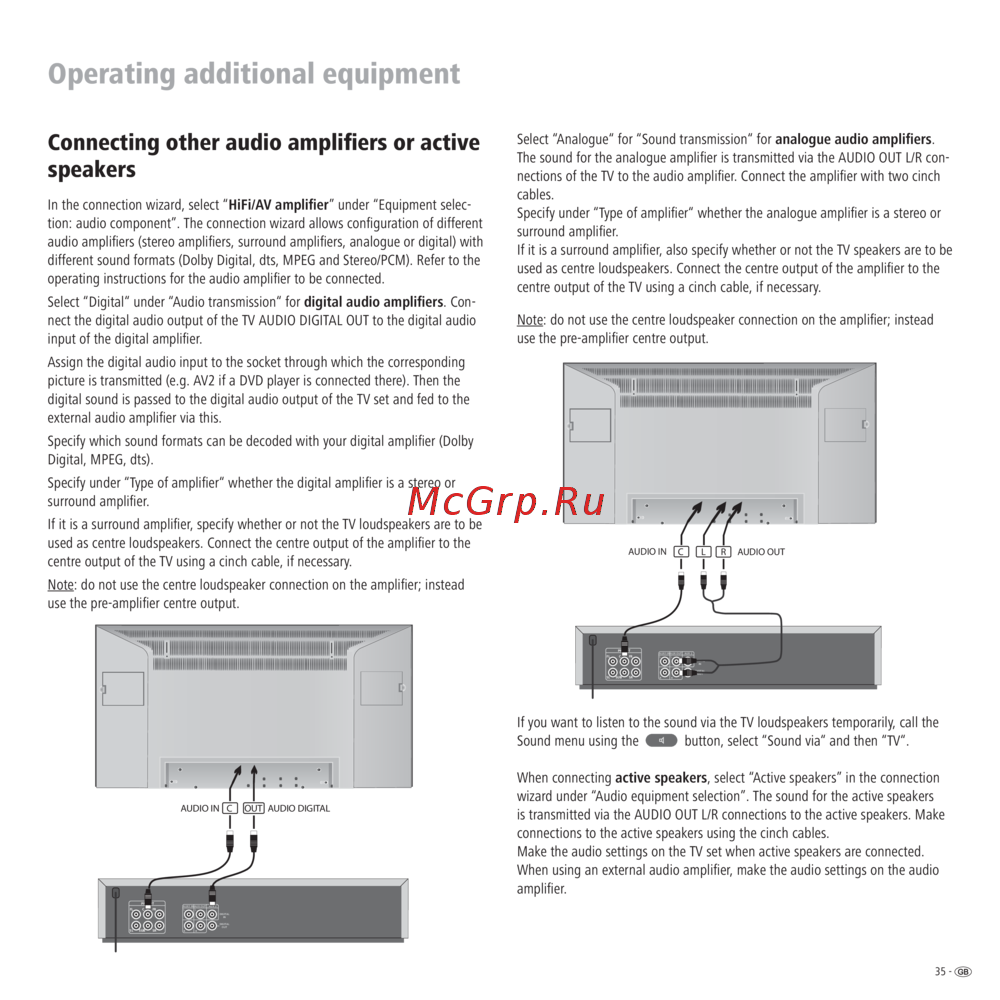

Operating additional equipment
Connecting other audio amplifiers or active
speakers
In the connection wizard, select “HiFi/AV amplifier” under “Equipment selec-
tion: audio component”. The connection wizard allows configuration of different
audio amplifiers (stereo amplifiers, surround amplifiers, analogue or digital) with
different sound formats (Dolby Digital, dts, MPEG and Stereo/PCM). Refer to the
operating instructions for the audio amplifier to be connected.
Select “Digital“ under “Audio transmission“ for digital audio amplifiers. Con-
nect the digital audio output of the TV AUDIO DIGITAL OUT to the digital audio
input of the digital amplifier.
Assign the digital audio input to the socket through which the corresponding
picture is transmitted (e.g. AV2 if a DVD player is connected there). Then the
digital sound is passed to the digital audio output of the TV set and fed to the
external audio amplifier via this.
Specify which sound formats can be decoded with your digital amplifier (Dolby
Digital, MPEG, dts).
Specify under “Type of amplifier“ whether the digital amplifier is a stereo or
surround amplifier.
If it is a surround amplifier, specify whether or not the TV loudspeakers are to be
used as centre loudspeakers. Connect the centre output of the amplifier to the
centre output of the TV using a cinch cable, if necessary.
Note: do not use the centre loudspeaker connection on the amplifier; instead
use the pre-amplifier centre output.
Select “Analogue“ for “Sound transmission“ for analogue audio amplifiers.
The sound for the analogue amplifier is transmitted via the AUDIO OUT L/R con-
nections of the TV to the audio amplifier. Connect the amplifier with two cinch
cables.
Specify under “Type of amplifier“ whether the analogue amplifier is a stereo or
surround amplifier.
If it is a surround amplifier, also specify whether or not the TV speakers are to be
used as centre loudspeakers. Connect the centre output of the amplifier to the
centre output of the TV using a cinch cable, if necessary.
Note: do not use the centre loudspeaker connection on the amplifier; instead
use the pre-amplifier centre output.
If you want to listen to the sound via the TV loudspeakers temporarily, call the
Sound menu using the
button, select “Sound via“ and then “TV“.
When connecting active speakers, select “Active speakers” in the connection
wizard under “Audio equipment selection”. The sound for the active speakers
is transmitted via the AUDIO OUT L/R connections to the active speakers. Make
connections to the active speakers using the cinch cables.
Make the audio settings on the TV set when active speakers are connected.
When using an external audio amplifier, make the audio settings on the audio
amplifier.
C
PREOUT
FR
FL
SL SR SUB
C
L L
R R
AUX1 IN
DIGI T A L
IN
DIGI T A L
OUT
AUX OUT AUX 2
OUT
AUDIO DIGITAL
AUDIO IN
PREOUT
FR
FL
SL SR SUB
C
L L
R R
AUX1 IN
DIGI T A L
IN
DIGI T A L
OUT
AUX OUT AUX 2
C
AUDIO OUT
R
L
AUDIO IN
