43 -

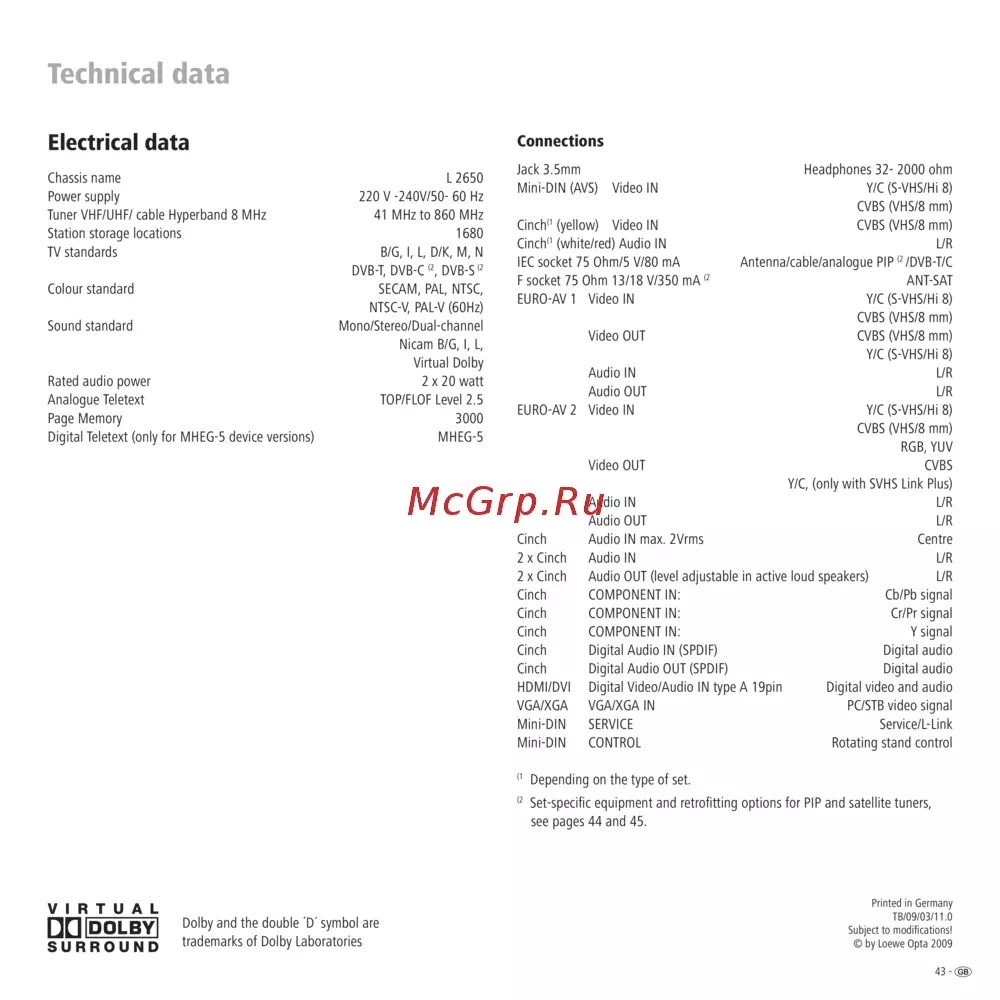

Technical data
Electrical data
Chassis name L 2650
Power supply 220 V -240V/50- 60 Hz
Tuner VHF/UHF/ cable Hyperband 8 MHz 41 MHz to 860 MHz
Station storage locations 1680
TV standards B/G, I, L, D/K, M, N
DVB-T, DVB-C
(2
, DVB-S
(2
Colour standard SECAM, PAL, NTSC,
NTSC-V, PAL-V (60Hz)
Sound standard Mono/Stereo/Dual-channel
Nicam B/G, I, L,
Virtual Dolby
Rated audio power 2 x 20 watt
Analogue Teletext TOP/FLOF Level 2.5
Page Memory 3000
Digital Teletext (only for MHEG-5 device versions) MHEG-5
Connections
Jack 3.5mm Headphones 32- 2000 ohm
Mini-DIN (AVS) Video IN Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
Cinch
(1
(yellow) Video IN CVBS (VHS/8 mm)
Cinch
(1
(white/red) Audio IN L/R
IEC socket 75 Ohm/5 V/80 mA Antenna/cable/analogue PIP
(2
/DVB-T/C
F socket 75 Ohm 13/18 V/350 mA
(2
ANT-SAT
EURO-AV 1 Video IN Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
Video OUT CVBS (VHS/8 mm)
Y/C (S-VHS/Hi 8)
Audio IN L/R
Audio OUT L/R
EURO-AV 2 Video IN Y/C (S-VHS/Hi 8)
CVBS (VHS/8 mm)
RGB, YUV
Video OUT CVBS
Y/C, (only with SVHS Link Plus)
Audio IN L/R
Audio OUT L/R
Cinch Audio IN max. 2Vrms Centre
2 x Cinch Audio IN L/R
2 x Cinch Audio OUT (level adjustable in active loud speakers) L/R
Cinch COMPONENT IN: Cb/Pb signal
Cinch COMPONENT IN: Cr/Pr signal
Cinch COMPONENT IN: Y signal
Cinch Digital Audio IN (SPDIF) Digital audio
Cinch Digital Audio OUT (SPDIF) Digital audio
HDMI/DVI Digital Video/Audio IN type A 19pin Digital video and audio
VGA/XGA VGA/XGA IN PC/STB video signal
Mini-DIN SERVICE Service/L-Link
Mini-DIN CONTROL Rotating stand control
(1
Depending on the type of set.
(2
Set-specific equipment and retrofitting options for PIP and satellite tuners,
see pages 44 and 45.
Printed in Germany
TB/09/03/11.0
Subject to modifications!
© by Loewe Opta 2009
Dolby and the double ´D´ symbol are
trademarks of Dolby Laboratories
