- 42

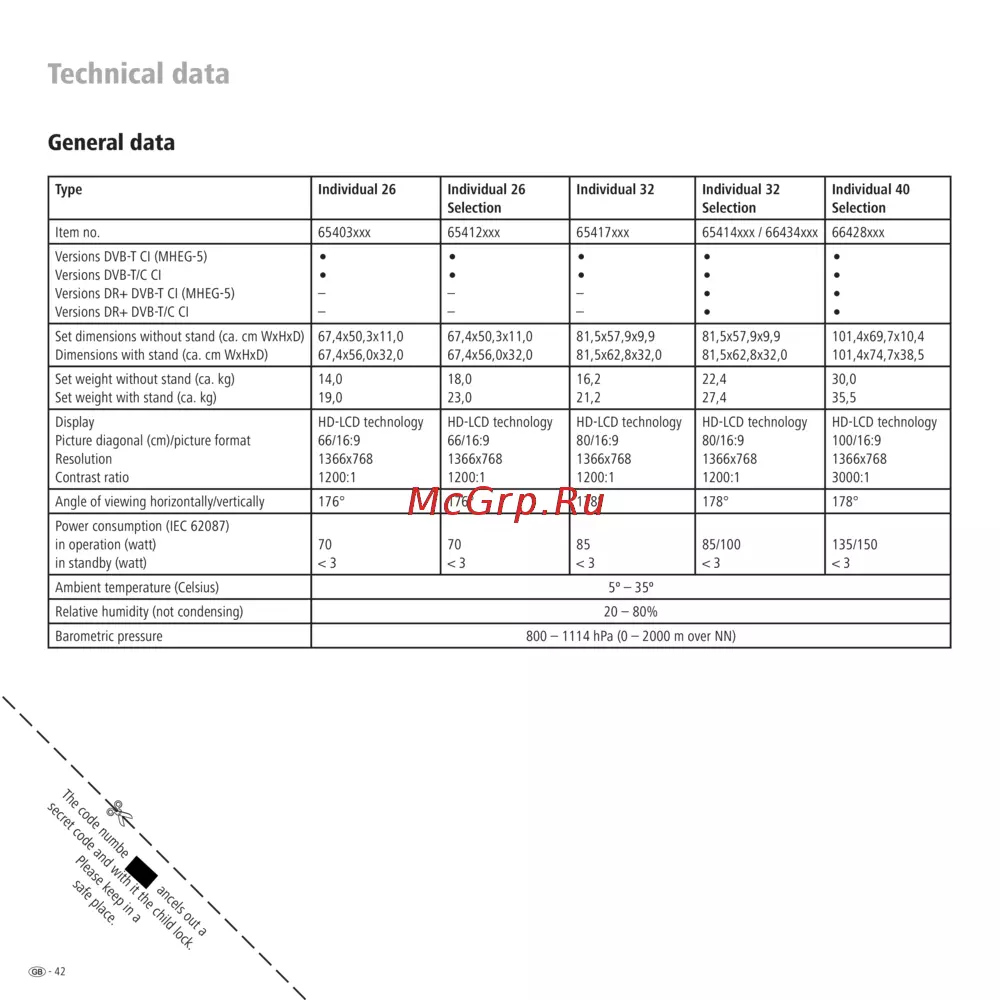

General data
Type Individual 26 Individual 26
Selection
Individual 32 Individual 32
Selection
Individual 40
Selection
Item no. 65403xxx 65412xxx 65417xxx 65414xxx / 66434xxx 66428xxx
Versions DVB-T CI (MHEG-5)
Versions DVB-T/C CI
Versions DR+ DVB-T CI (MHEG-5)
Versions DR+ DVB-T/C CI
•
•
–
–
•
•
–
–
•
•
–
–
•
•
•
•
•
•
•
•
Set dimensions without stand (ca. cm WxHxD)
Dimensions with stand (ca. cm WxHxD)
67,4x50,3x11,0
67,4x56,0x32,0
67,4x50,3x11,0
67,4x56,0x32,0
81,5x57,9x9,9
81,5x62,8x32,0
81,5x57,9x9,9
81,5x62,8x32,0
101,4x69,7x10,4
101,4x74,7x38,5
Set weight without stand (ca. kg)
Set weight with stand (ca. kg)
14,0
19,0
18,0
23,0
16,2
21,2
22,4
27,4
30,0
35,5
Display
Picture diagonal (cm)/picture format
Resolution
Contrast ratio
HD-LCD technology
66/16:9
1366x768
1200:1
HD-LCD technology
66/16:9
1366x768
1200:1
HD-LCD technology
80/16:9
1366x768
1200:1
HD-LCD technology
80/16:9
1366x768
1200:1
HD-LCD technology
100/16:9
1366x768
3000:1
Angle of viewing horizontally/vertically 176° 176° 178° 178° 178°
Power consumption (IEC 62087)
in operation (watt)
in standby (watt)
70
< 3
70
< 3
85
< 3
85/100
< 3
135/150
< 3
Ambient temperature (Celsius) 5º – 35º
Relative humidity (not condensing) 20 – 80%
Barometric pressure 800 – 1114 hPa (0 – 2000 m over NN)
Technical data
The code numbe ancels out a
secret code and with it the child lock.
Please keep in a
safe place.
