Loewe Individual 26 Selection [6/46] Connections to rear panel
![Loewe Individual 26 Selection [6/46] Connections to rear panel](/views2/1013744/page6/bg6.png)
- 6
(1
Set-specific equipment and retrofitting options for PIP and satellite tuners, see pages 44 and 45.

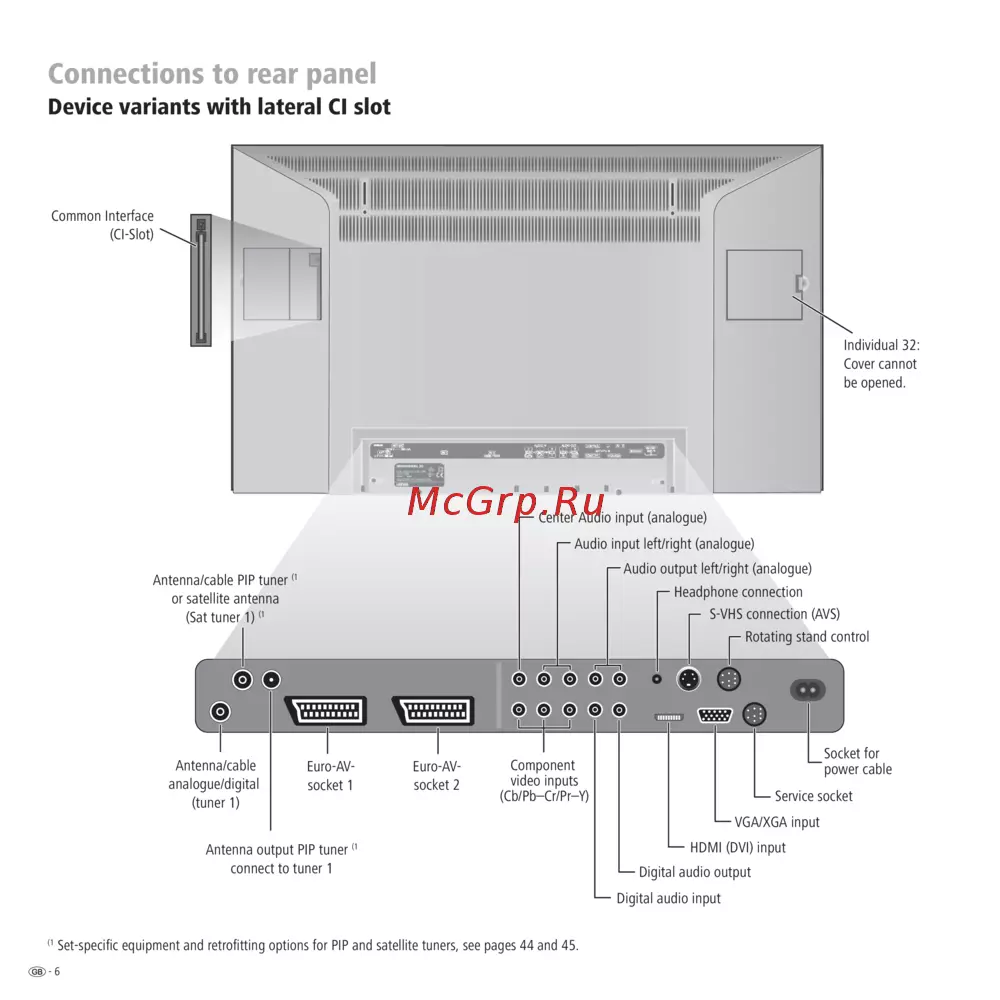

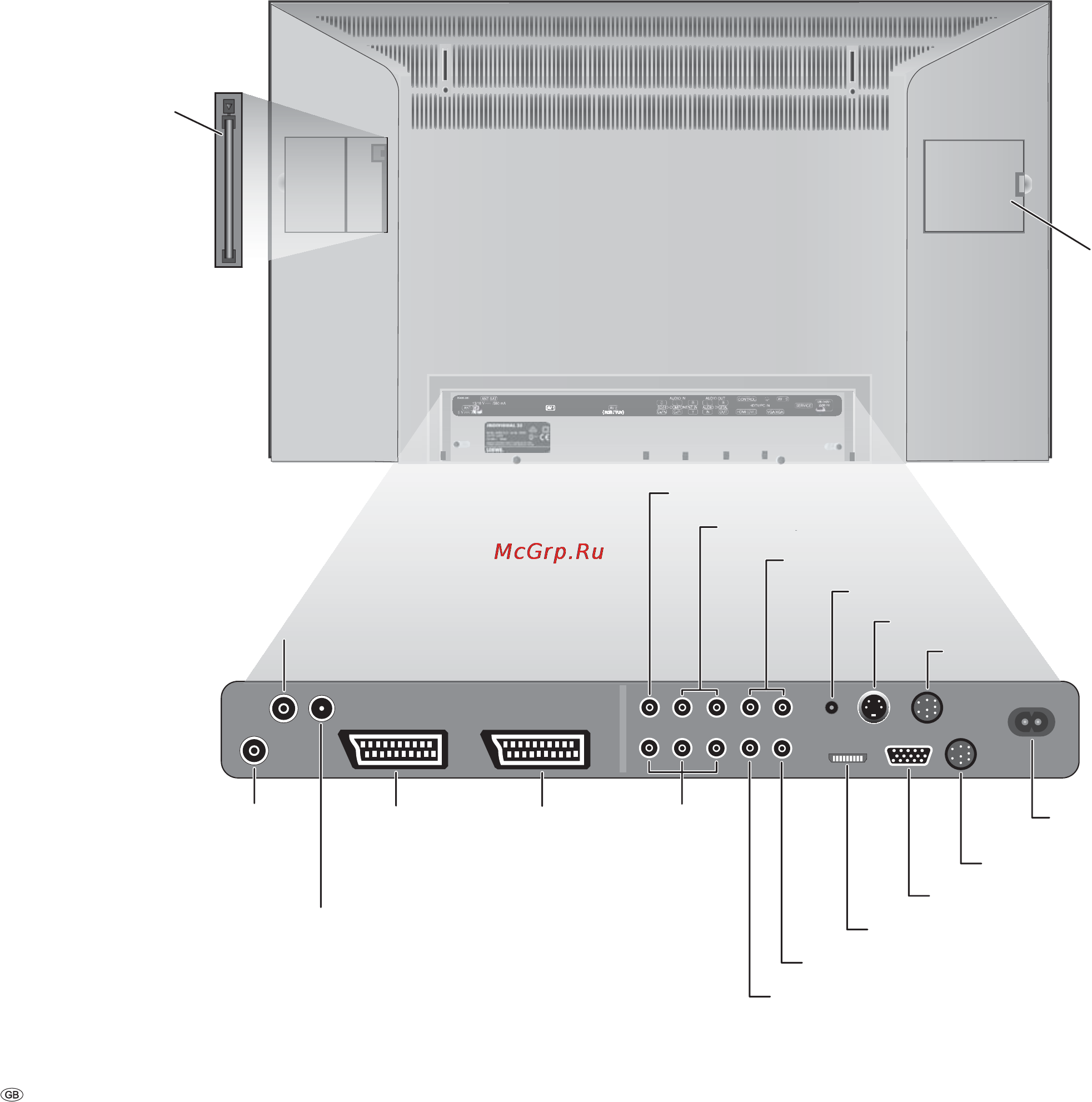

Connections to rear panel
Audio output left/right (analogue)
Audio input left/right (analogue)
Center Audio input (analogue)
Antenna/cable PIP tuner
(1
or satellite antenna
(Sat tuner 1)
(1
Euro-AV-
socket 1
Euro-AV-
socket 2
Socket for
power cable
Service socket
VGA/XGA input
HDMI (DVI) input
Digital audio input
Digital audio output
Component
video inputs
(Cb/Pb–Cr/Pr–Y)
Antenna output PIP tuner
(1
connect to tuner 1
Antenna/cable
analogue/digital
(tuner 1)
Common Interface
(CI-Slot)
Headphone connection
S-VHS connection (AVS)
Rotating stand control
Individual 32:
Cover cannot
be opened.
Device variants with lateral CI slot
