AR-440
2
Frequency Configuration
The receiver utilizes double conversion. The first IF is
49.95MHz and the second IF is 450kHz. The first local oscil-
lator signal is supplied from the PLL circuit.
The PLL circuit in the transmitter generates the necessary
frequencies. Figure 1 shows the frequencies.
CIRCUIT DESCRIPTION
Receiver System
The receiver is double conversion superheterodyne. The
frequency configuration is shown in Figure 1.
■ Front-end RF Amplifier
An incoming signal from the antenna is applied to an RF
amplifier (Q353) after passing through a transmit/receive
switch circuit (D603, D604 and D605 are off) and a BPF
(L359, L358 L360, L361 and varactor diodes : D353, D354,
D355). After the signal is amplified (Q353), the signal is fil-
tered by a BPF (L354, L355 and varactor diodes: D351, D352)
to eliminate unwanted signals before it is passed to the first
mixer.
The voltage of these diodes are controlled by tracking the
CPU (IC101) center frequency of the band pass filter. (See
Fig. 2.)
■ First Mixer
The signal from the RF amplifier is heterodyned with the
first local oscillator signal from the PLL frequency synthesizer
circuit at the first mixer (Q352) to create a 49.95MHz first
intermediate frequency (1st IF) signal. The first IF signal is
then fed through one pair of monolithic crystal filter (MCF :
XF351) to further remove spurious signals.
ANT
SW
RF
AMP
1st
MIX
AF
PA
TCXO
MIC
AMP
X3
multiply
RF
AMP
POWER
AMP
CF 450kHz
MCF
49.95MHz
IF SYSTEM
PLL/VCO
16.8MHz
50.4MHz
ANT
RX
TX
SP
MIC

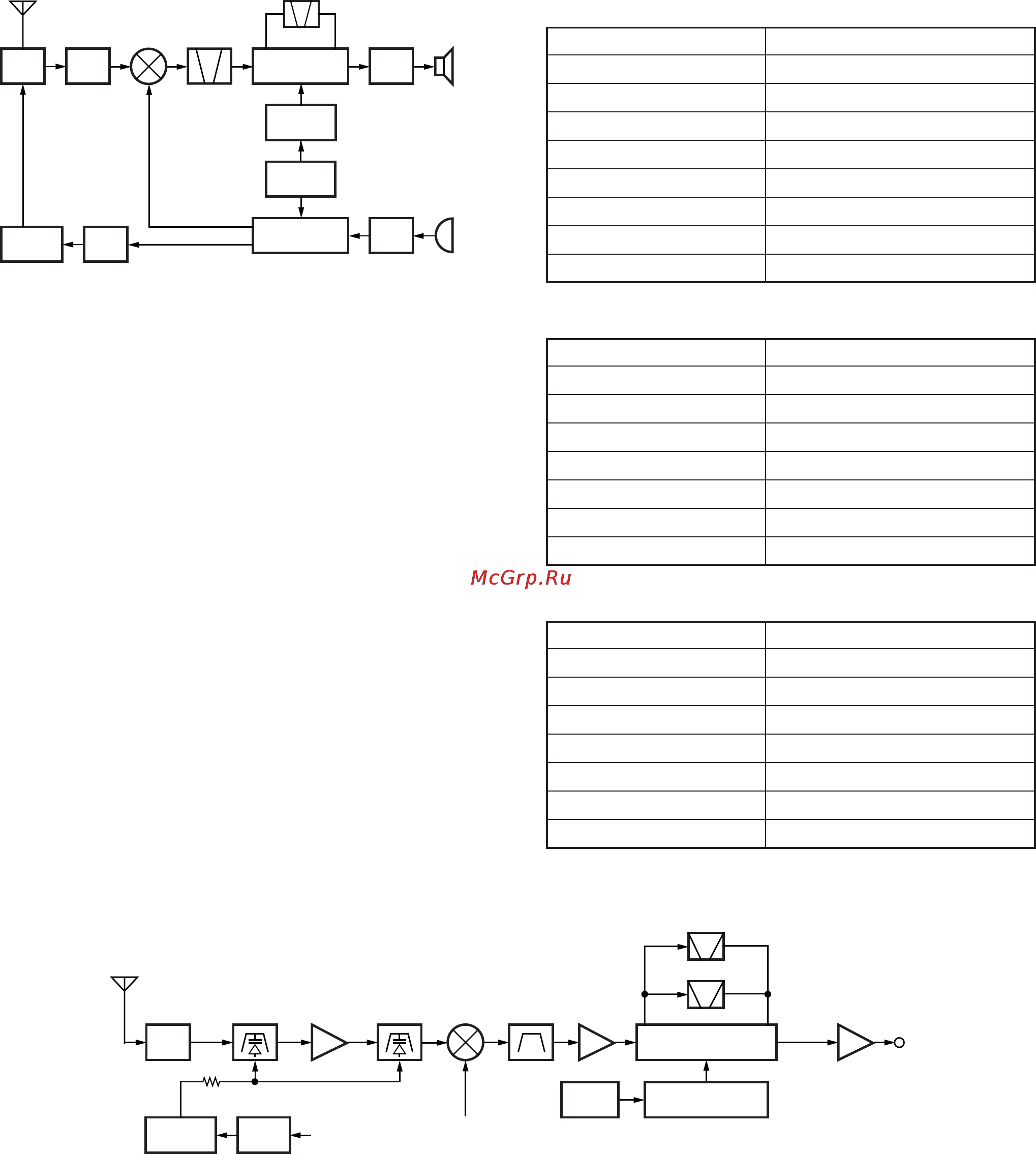

Fig. 1 Frequency configuration
■ IF Amplifier
The first IF signal is amplified by Q351, and then goes to
IC301 (FM processing IC). The signal is heterodyned again
with a second local oscillator signal within IC301 to create a
450kHz second IF signal. The second IF signal is then fed
through a 450kHz ceramic filter (Wide : CF301, Narrow :
CF302) to further eliminate unwanted signals before it is am-
plified and FM detected in IC301.
Item Rating
Nominal center frequency 49.95MHz
Pass bandwidth ±5.0kHz or more at 3dB
35dB stop bandwidth ±20.0kHz or less
Ripple 1.0dB or less
Insertion loss 5.0dB or less
Guaranteed attenuation 80dB or more at fo±1MHz
Spurious 40dB or more
Terminal impedance 350Ω / 5.5pF
Table 1 Crystal filter (L71-0620-05) : XF351
Item Rating
Nominal center frequency 450kHz
6dB bandwidth ±6.0kHz or more
50dB bandwidth ±12.5kHz or less
Ripple 2.0dB or less
Insertion loss 6.0dB or less
Guaranteed attenuation 35.0dB or more within fo±100kHz
Terminal impedance 2.0kΩ
Table 2 Ceramic filter (L72-0993-05) : CF301
Item Rating
Nominal center frequency 450kHz
6dB bandwidth ±4.5kHz or more
50dB bandwidth ±10.0kHz or less
Ripple 2.0dB or less
Insertion loss 6.0dB or less
Guaranteed attenuation 60.0dB or more within fo±100kHz
Terminal impedance 2.0kΩ
Table 3 Ceramic filter (L72-0999-05) : CF302
ANT
L358~361
D353~355
BPF
Q353
RF AMP
Q351
IF AMP
IC161
D/A CONVERTER
Q352
MIX
XF351
MCF
D601~
D604
ANT
SW
IC203
DC AMP
IC161
D/A
Q302
X3 multiply
X401
TCXO
IC301
IF system
1st local
OSC (VCO/PLL)
W/NO
(EVOL2)
CF301 (Wide)
CF302 (Narrow)
TV
CPU
L354,355
D351,352
BPF
Fig. 2 Receiver system
