A
R-440
23
ADJUSTMENT

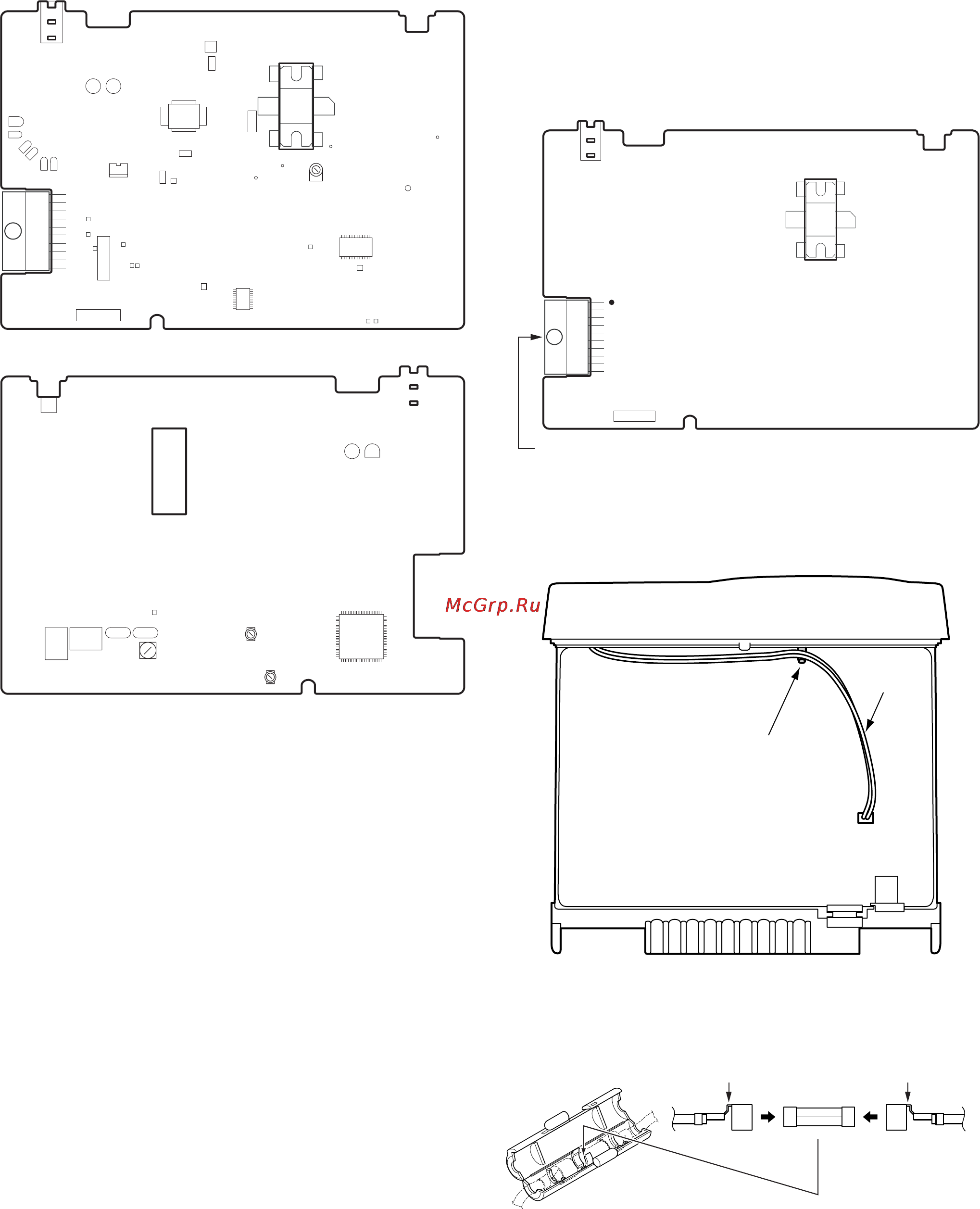

Adjustment Location
■ Adjustment Points
■ Notes
• EEPROM
The tuning data (Deviation, Squelch, etc.) for the EEP-
ROM, is stored in memory. When parts are changed, re-
adjust the transceiver.
• AF PA IC (IC252)
How to mounting the IC252.
• Speaker Cable
The speaker cable should be formed before mounting the
shield cover as below.
• Fuse
To mount the fuse, the cable terminal direction must be as
follow.
Locator
Speaker
cable
This side up This side up
Cable terminal Cable terminal
Fuse
Pin 1 marker
Part name label face down
IC252
TX-RX UNIT
Component side
R822
F501
VR601
Q504
R525
R536
5M
GND
PR9
PR1
PKS
SQC
PKD
IC252
RXD
TXD
CNVSS
RESET
POWER
+B
E
RF
CV
Q503
DC
PC
8T
BPF
TEMP1
AFV
8T
TEMP2
TX-RX unit
Component side
ANT
TC401
TC402
L301
BPF
+B
E
TX-RX unit
Foil side
