8 RC-13TC - Using Your Video Transport Controller

5.2 The RC-13TC as an Auxiliary Control Panel

When the RC-13TC is used as an auxiliary control panel, as illustrated in Figure 5:

• It requires only a K-NET connection to another auxiliary device

• A power supply unit is not required as the K-Net connection carries the

power supply

Power supplies are sold separately. Consult your Kramer dealer for details.

• No programming of the auxiliary panel is needed

• Depending on the setup, the device ID may need setting using the K-Config

application

• The RS-232 and IR ports may be used to control devices

5.2.1 Connecting Multiple RC-13TC Devices as System Controllers

Connect the RC-13TC devices to the SV-552 as illustrated in Figure 5.

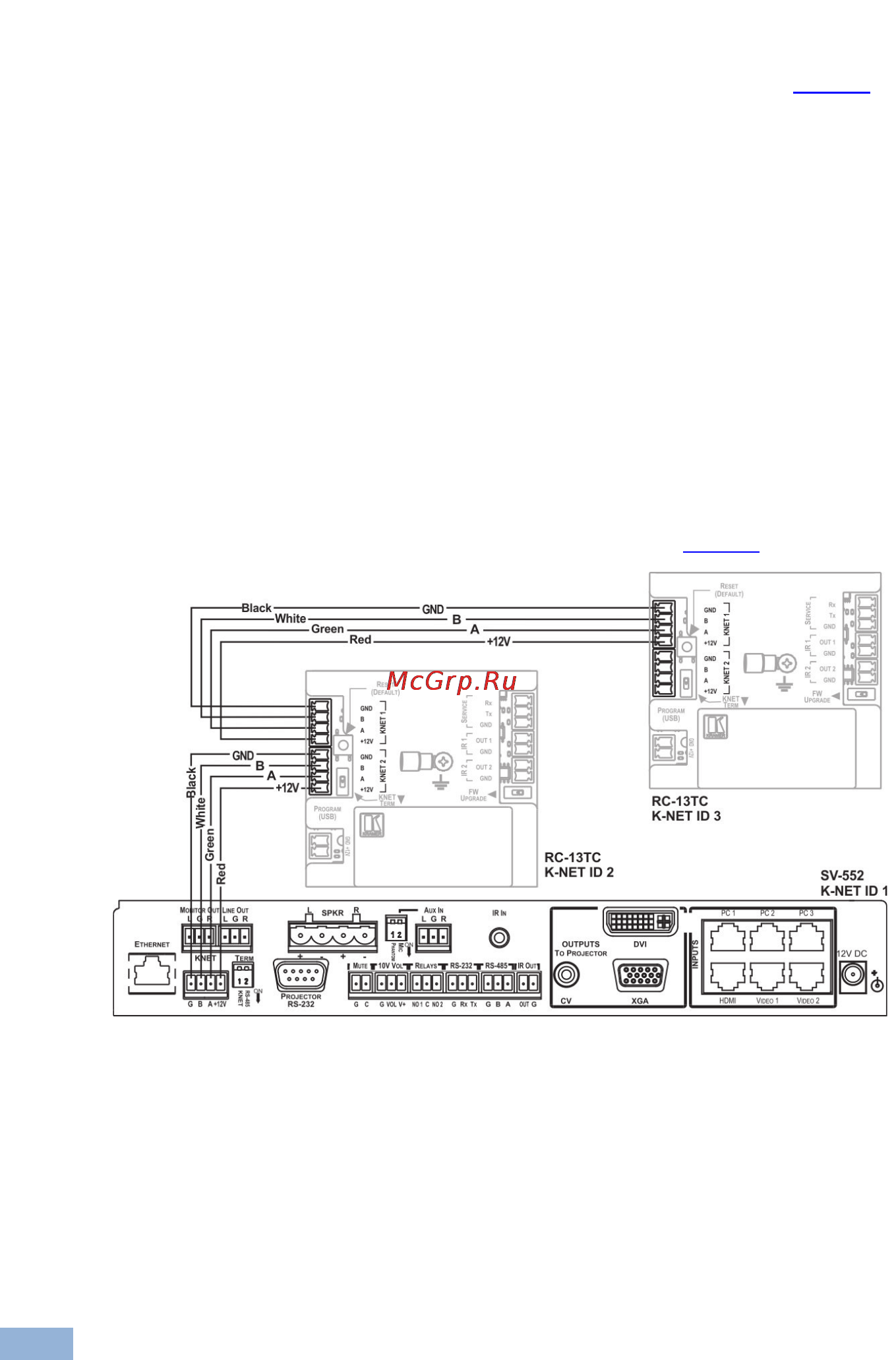

Figure 5: RC-13TC Connections when used as part of a K-NET System

5.2.2 Setting the K-NET Termination

The first and last physical devices on a K-NET bus must be terminated (in this

example, devices 1 and 3).
