6 RC-13TC - Using Your Video Transport Controller
5 Using Your Video Transport Controller
This user manual is applicable once the unit is configured and installed (by your
system integrator), therefore the following procedures are not detailed in this
manual:
• Hardware installation
• Programming the LCD readout using K-Config Configuration software
(described in the K-Config Configuration Guide)
• Programming the button actions using K-Config Configuration software
5.1 The RC-13TC as a Standalone Video Transport
Controller

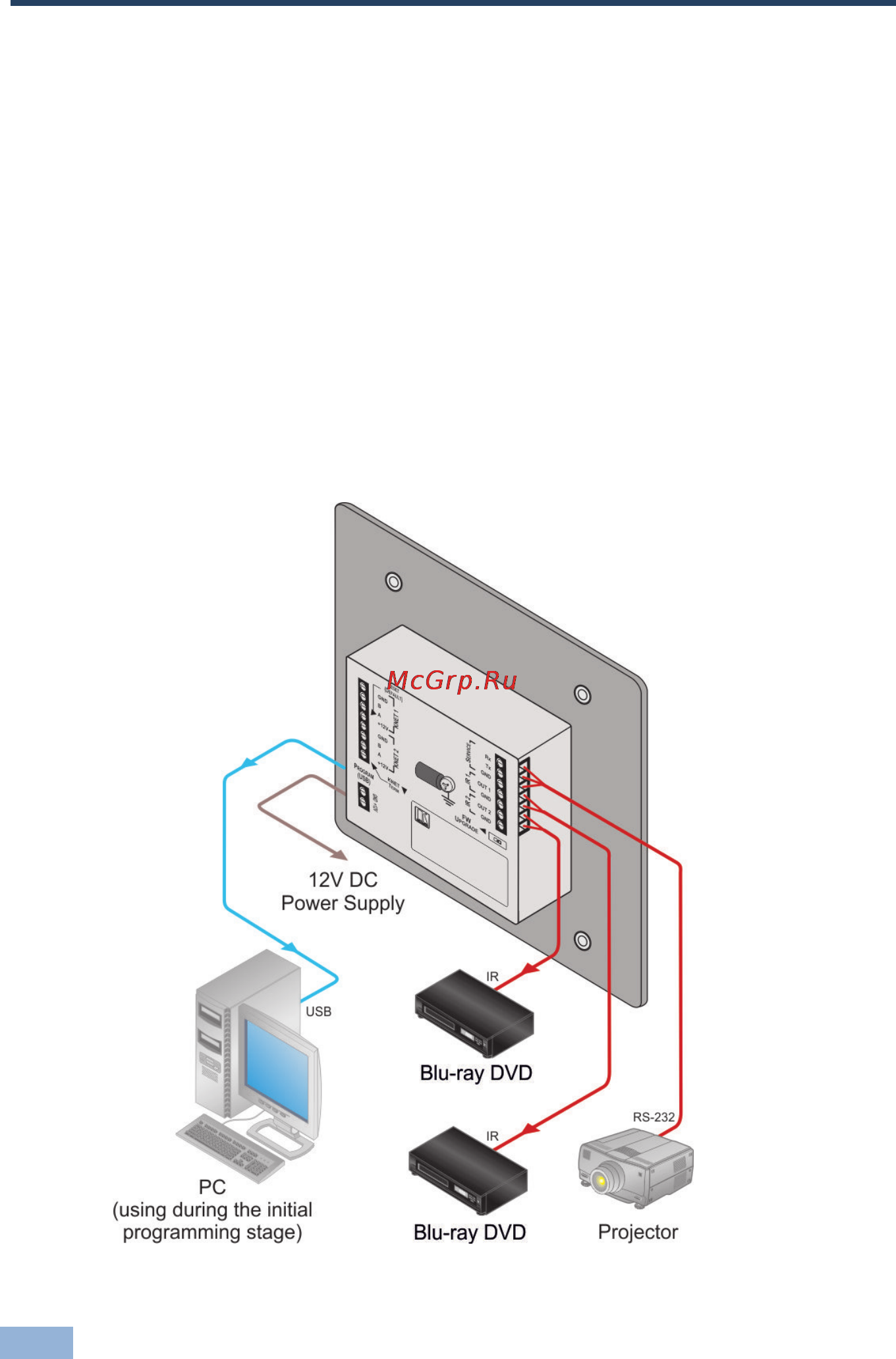

Figure 3: Sample RC-13TC Standalone Video Transport Controller Configuration
