RC-13TC - Using Your Video Transport Controller 9

To terminate the RC-13TC:

• Slide the K-NET termination switch down

The factory default is down (terminated).

5.3 Operating the RC-13TC Video Transport Controller

The RC-13TC is delivered with no button functions preprogrammed. For the

buttons to perform any functions, they must be programmed first.

Once a button is programmed to suit the source or display that is connected, the

other button functions are related to the specific device and are context sensitive,

that is, the function of a button depends on the specific characteristics of the

source or display.

In the example illustrated in

Figure 6, the RC-13TC LCD has been programmed

with text and the buttons have been programmed (by your system integrator) to

perform the functions that are relevant to the sources. Individual buttons can be

programmed with one or more actions (called a macro).

This is only one example among numerous possibilities as the LCD and each button can be

programmed as required.

When pressing a button that has been programmed with a macro, each action is

performed sequentially and it may take some time until the macro terminates.

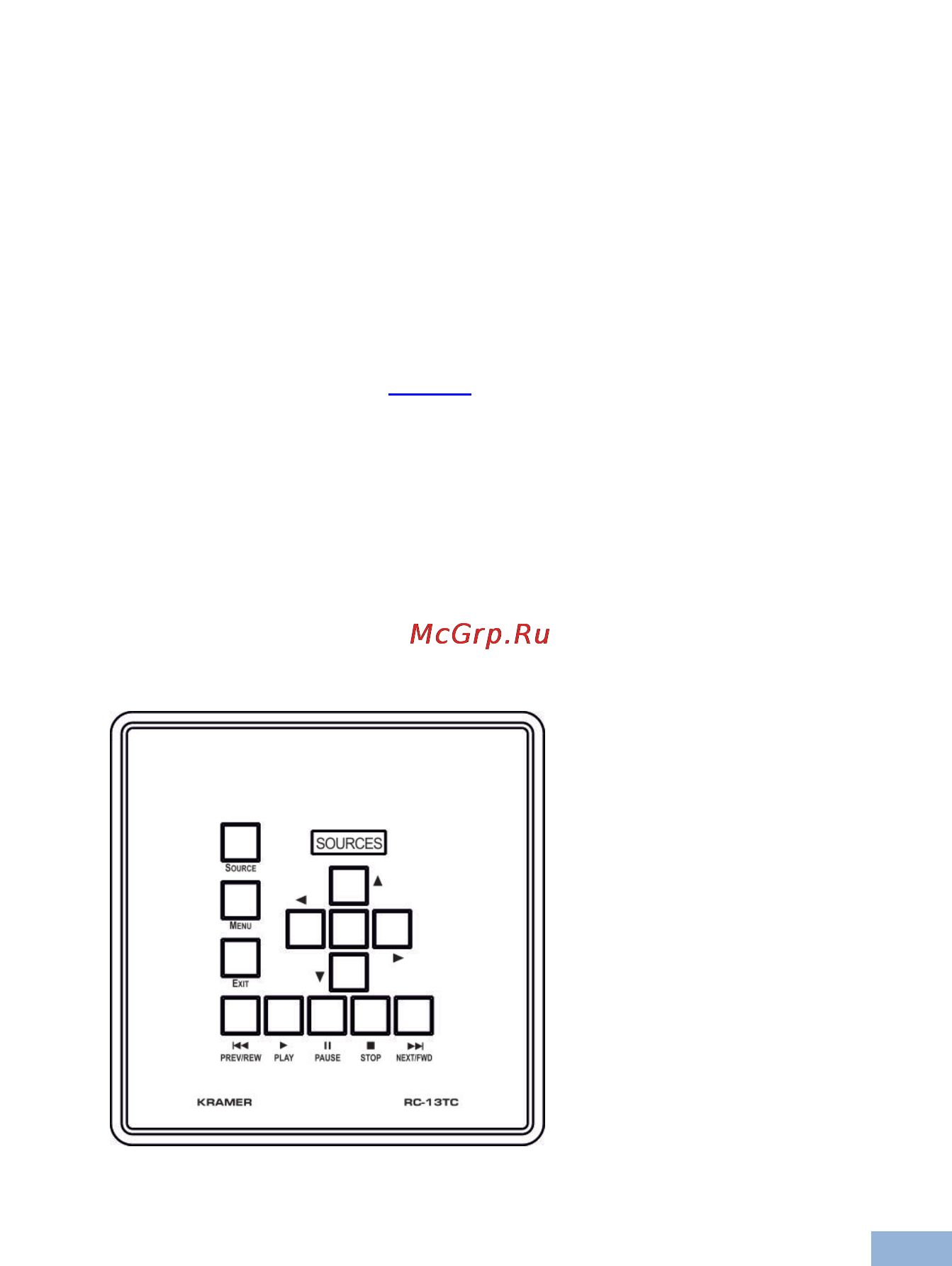

Figure 6: RC-13TC LCD Programmed with Text
