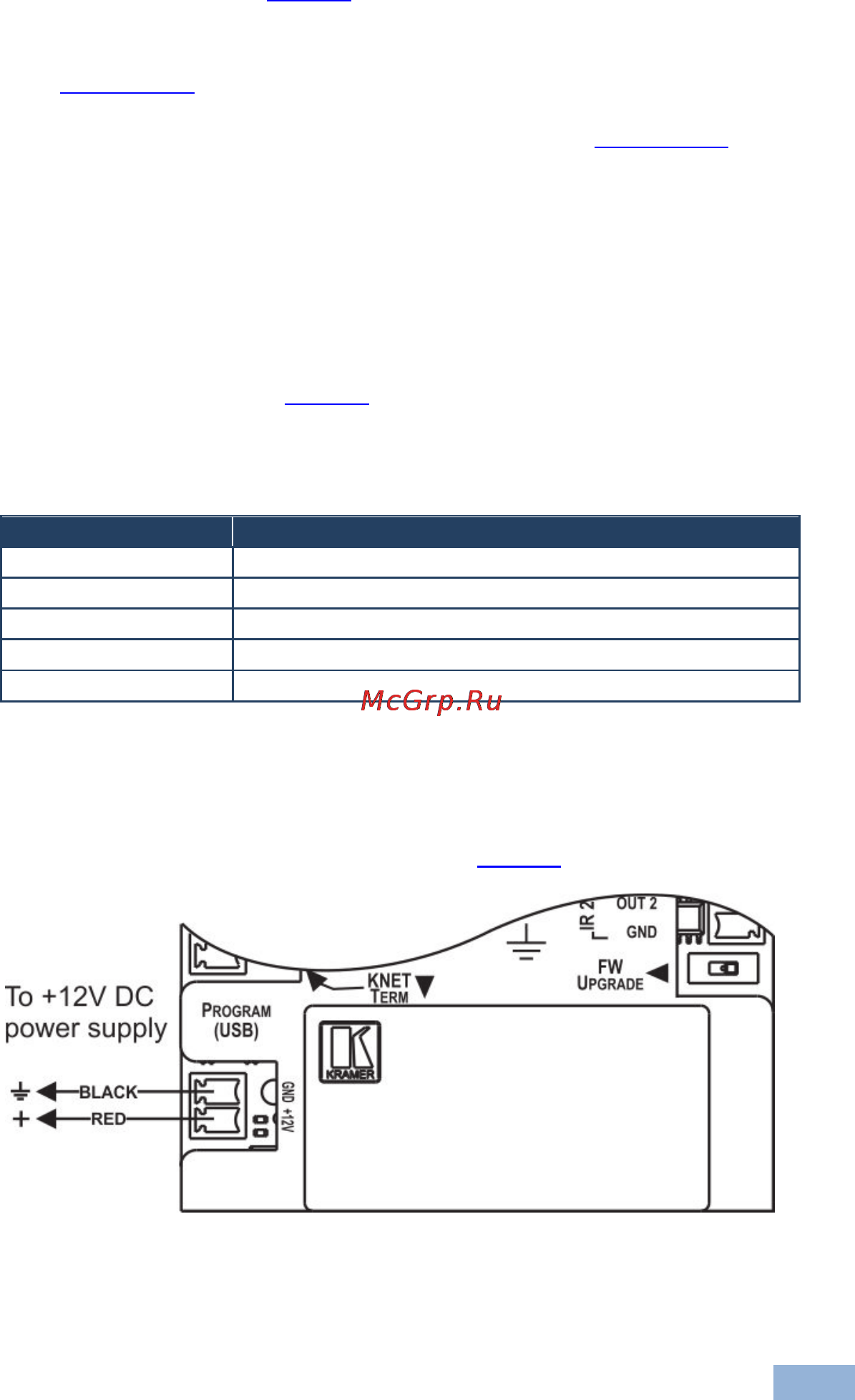

Kramer RC-13TC [9/16] Connecting the rc 13tc as a standalone video transport controller
![Kramer RC-13TC [9/16] Connecting the rc 13tc as a standalone video transport controller](/views2/1152618/page9/bg9.png)
RC-13TC - Using Your Video Transport Controller 7
When the RC-13TC functions as a standalone, wall mounted video transport
controller, as illustrated in
Figure 3:
• The RC-13TC is connected directly to the controlled devices (see
Section
5.1.1)
• A +12V DC power supply to the unit is required (see Section
5.1.2)
• The RC-13TC requires programming
5.1.1 Connecting the RC-13TC as a Standalone Video Transport
Controller
The RC-13TC can be connected as a standalone video transport controller as
illustrated in the example in
Figure 3 with connections as described in the following
table:
Your system integrator configures and installs your room controller to suit your requirements.
This example describes only one possible configuration.
Connector Connect to:
GND/+12V Power adapter
IR 1 Blu-ray DVD player 1
IR 2 Blu-ray DVD player 2
PROGRAM (USB)
PC—required only for configuring the RC-13TC
RS-232 Display or switcher
5.1.2 Connecting a Standalone RC-13TC to a Power Supply
When the RC-13TC is employed as a standalone room controller it should be
connected to the power supply as illustrated in
Figure 4.
Figure 4: RC-13TC Standalone Power Supply Connection
