26
VP-553 - Controlling the VP-553
6. Select Use the following IP Address for static IP addressing and fill in the
details as shown in Figure 10.
For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to
192.168.1.255 (excluding 192.168.1.39) that is provided by your IT
department.

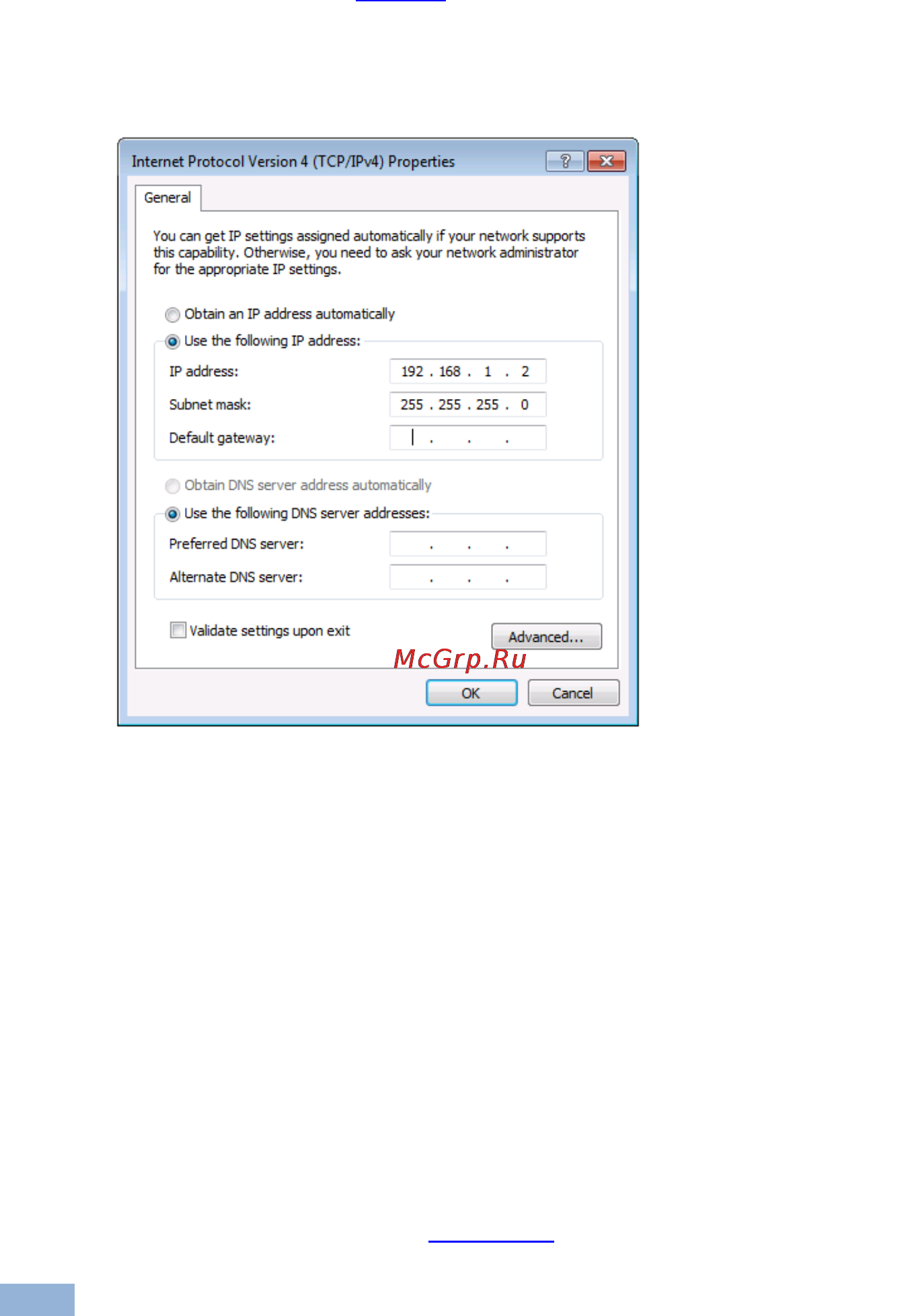

Figure 10: Internet Protocol Properties Window
7. Click OK.
8. Click Close.
6.4.2 Connecting the Ethernet Port via a Network Hub or Switch
You can connect the Ethernet port of the VP-553 to the Ethernet port on a network
hub or using a straight-through cable with RJ-45 connectors.
6.4.3 Control Configuration via the Ethernet Port
To control several units via Ethernet, connect the Master unit (Device 1) via the
Ethernet port to the Ethernet port of your PC. Use the OSD menu to provide initial
configuration of the settings (see Section 6.2.1).
