Kramer VP-553 [46/81] The usb routing page

VP-553 - Using the Embedded Web Pages

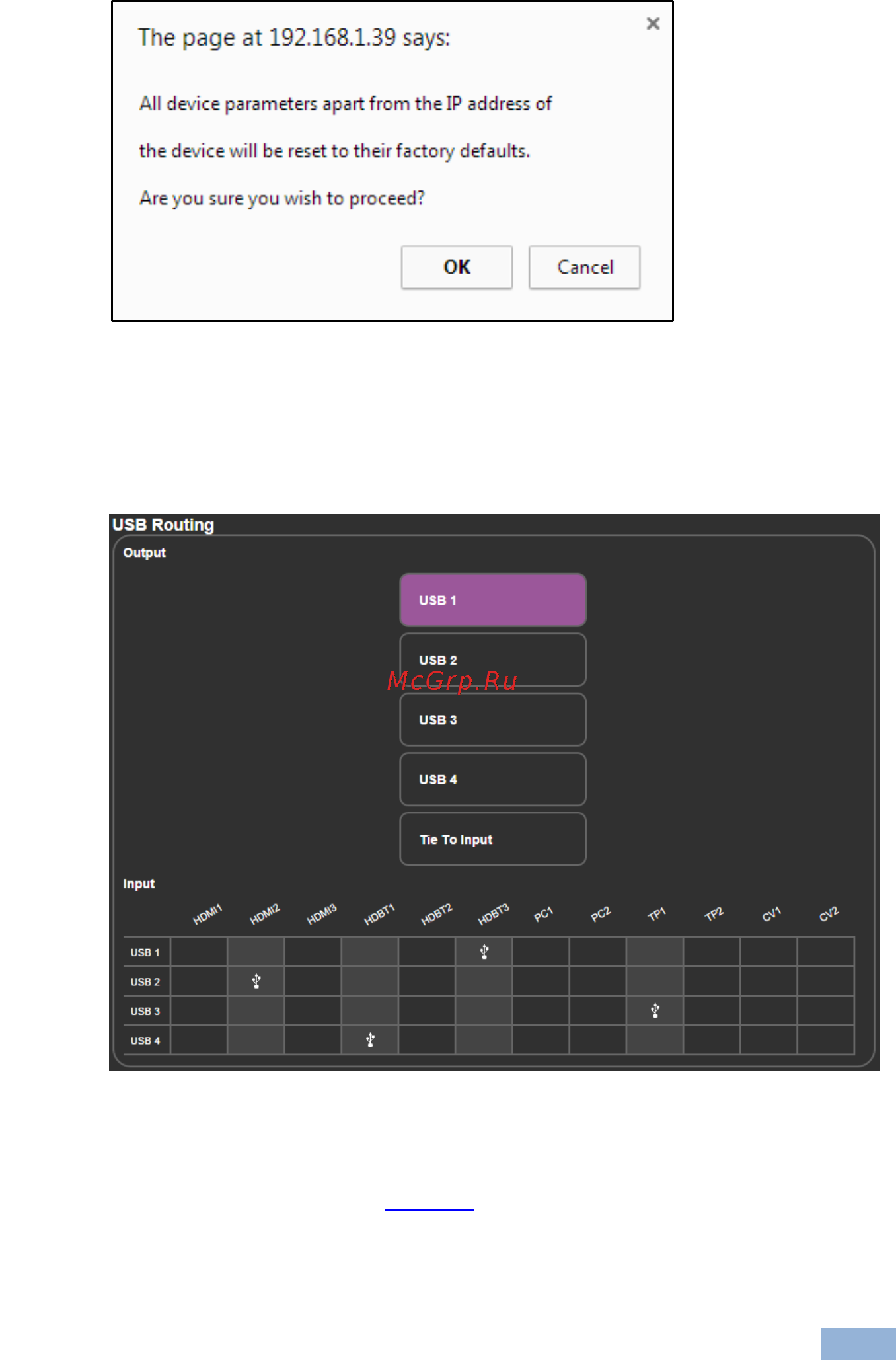

Figure 32: The Device Settings Page – Soft Factory Reset Message

Click OK to proceed.

7.5 The USB Routing Page

Figure 33: The USB Routing Page

The USB page lets you select one of the USB hosts (buttons USB 1, USB 2, USB 3

or USB 4 – in the example in Figure 33, USB 1 is selected). The selected button is

routed to the USB client.
