VP-553 - Controlling the VP-553
27
27
6.5 Controlling via the Infrared Remote Control Transmitter
You can control the VP-553 from the infrared remote control transmitter:

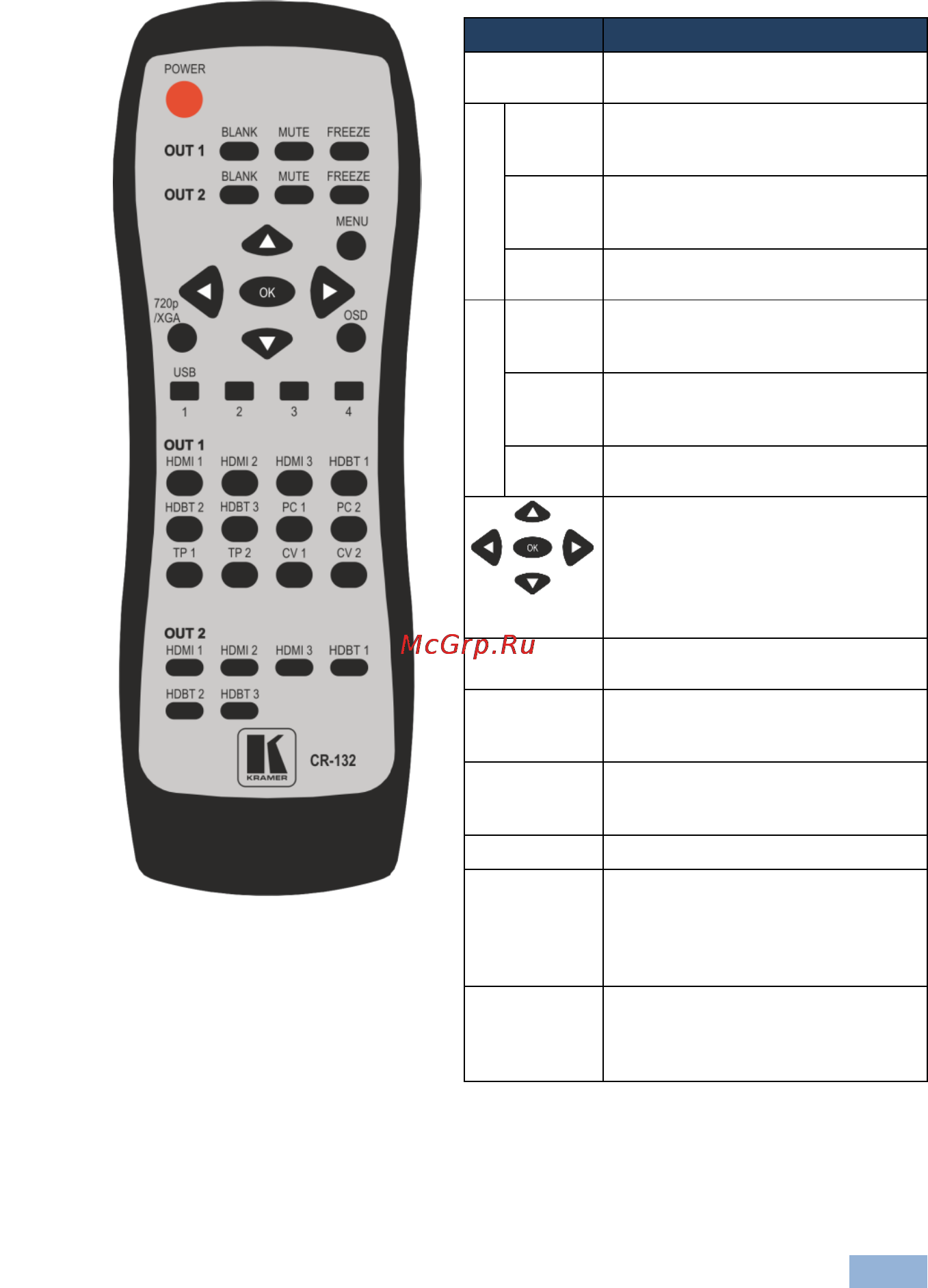

Figure 11: Infrared Remote
Control Transmitter
Keys
Function
POWER
Toggle the power save mode ON or
OFF
OUT 1
BLANK
Toggle between a blank screen
black screen and the display (for
both windows)
MUTE
Toggle between muting (blocking
out the sound) and enabling the
audio output
FREEZE
Freeze/unfreeze the output video
image (for both windows)
OUT 2
BLANK
Toggle between a blank screen
black screen and the display (for
both windows)
MUTE
Toggle between muting (blocking
out the sound) and enabling the
audio output
FREEZE
Freeze/unfreeze the output video
image (for both windows)
Press ENTER to access menu
levels (when in the OSD)
Use the up and down arrows to
adjust numerical values and adjust
the output volume level (when not
within the OSD)
MENU
Enter/Exit the OSD menu and return
to the previous menu level
OSD
Select whether the OSD will appear
on OUT 1, OUT 2, both or none of
them
720p/XGA
Press to reset to the default
resolution (toggles between XGA
and 720p)
USB
Select a USB input:1, 2, 3 or 4
OUT 1
Select one of the following inputs to
switch to output 1: HDMI 1, HDMI 2,
HDMI 3, HDBT 1, HDBT 2, HDBT 3,
PC 1, PC 2, TP 1, TP 2, CV 1 or
CV 2
OUT 2
Select one of the following inputs to
switch to output 2: HDMI 1, HDMI 2,
HDMI 3, HDBT 1, HDBT 2 or
HDBT 3
