Kramer VP-553 [44/81] The device settings page

VP-553 - Using the Embedded Web Pages

7.4 The Device Settings Page

The device Settings window (in Figure 28) lets you upgrade the firmware and set

the Ethernet parameters.

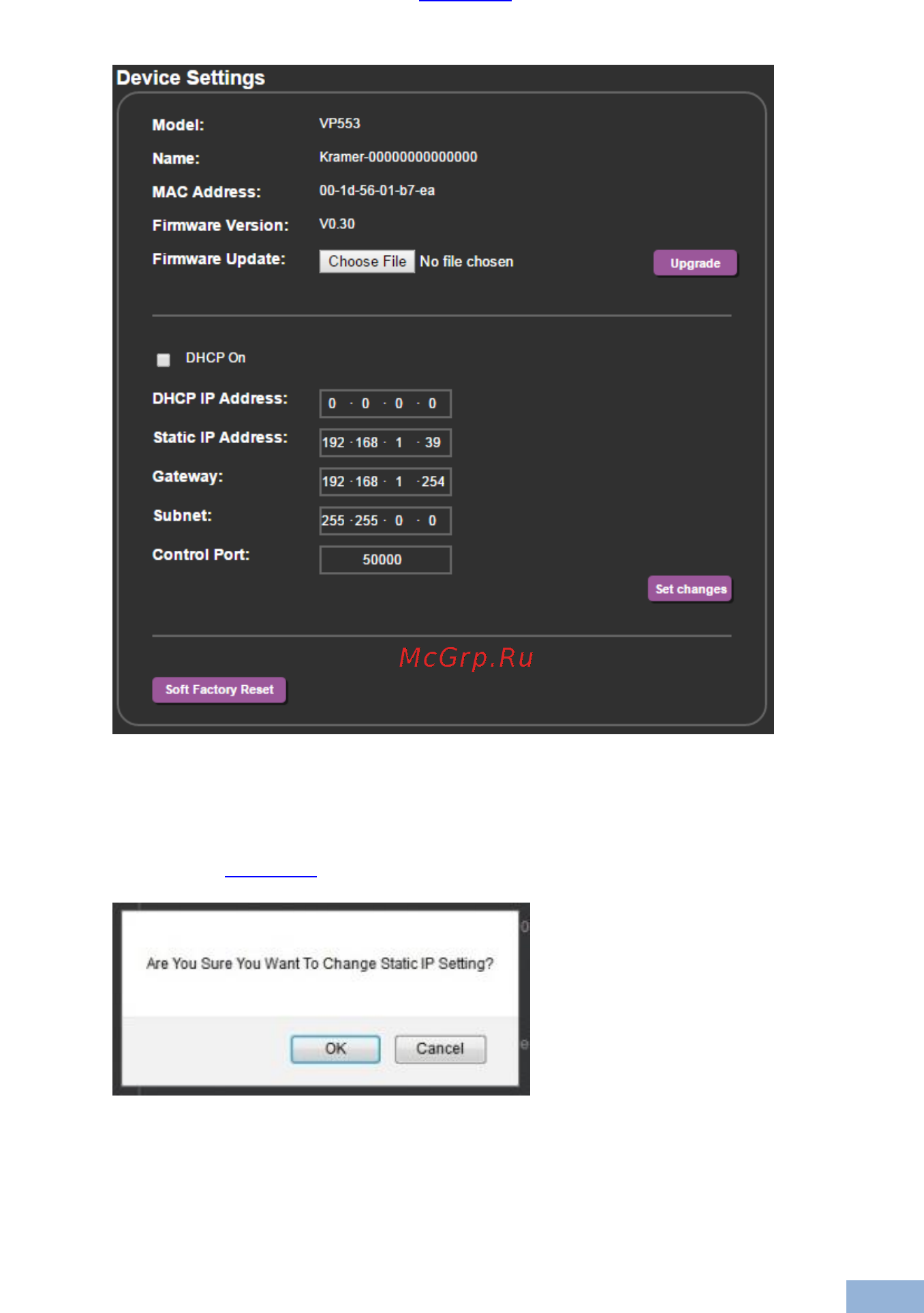

Figure 28: The Device Settings Page

Any change in the device settings requires confirmation, as illustrated in the

example in Figure 29.

Figure 29: The Device Settings Page – Static IP Confirmation
