Kramer K-ABLE-BOX [10/18] Mounting a single k able box vertically

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Mounting the K-Able Box

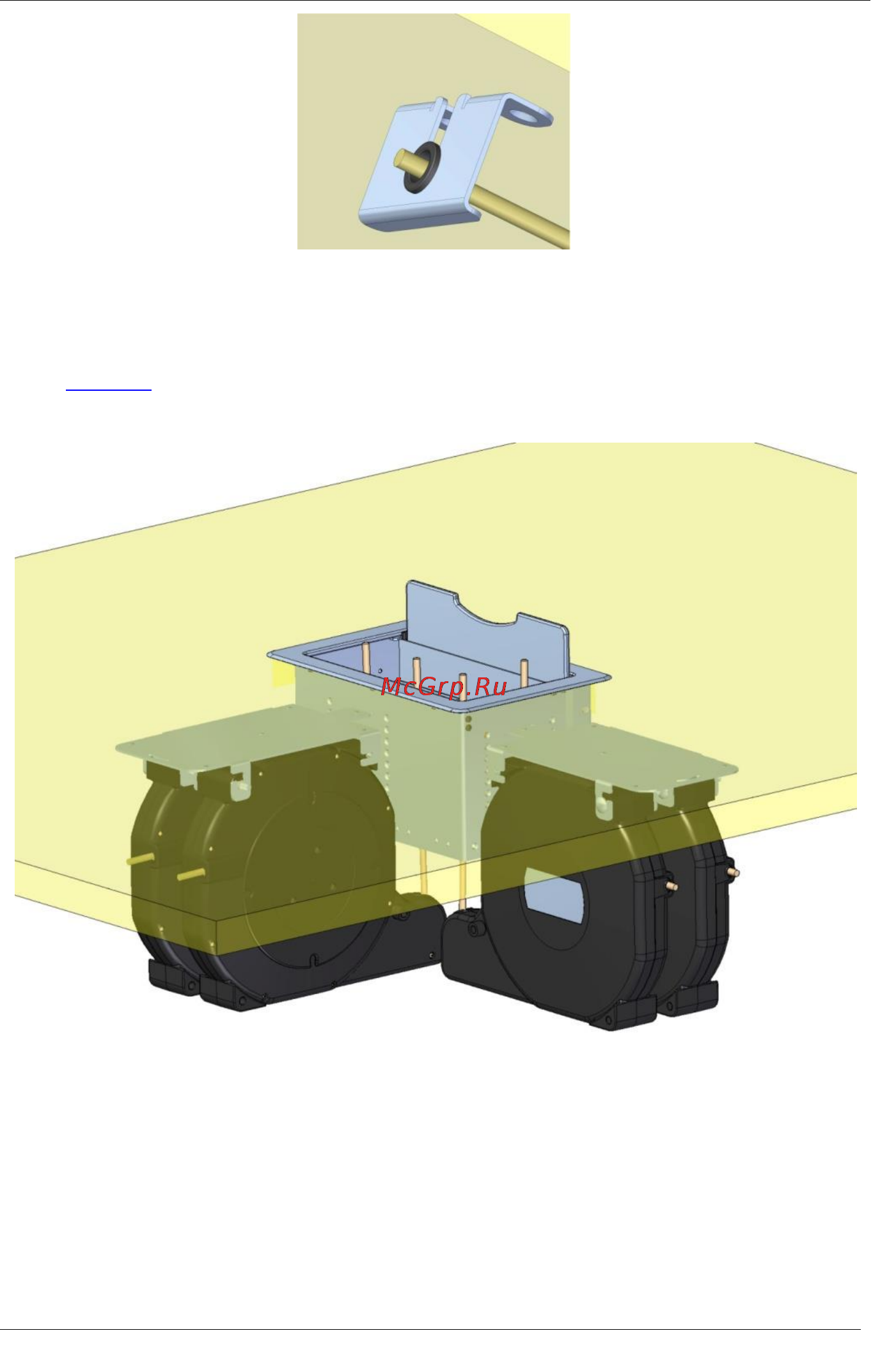

Figure 3: Cable Exit Bracket Showing the Plastic Friction Bush in Place

5.2 Mounting a Single K-Able Box Vertically

Figure 4 shows various vertical mounting options of one or two K-Able Box

units.

Figure 4: Various Vertical Mounting Options
