Defining the K-Able Box

4 Defining the K-Able Box

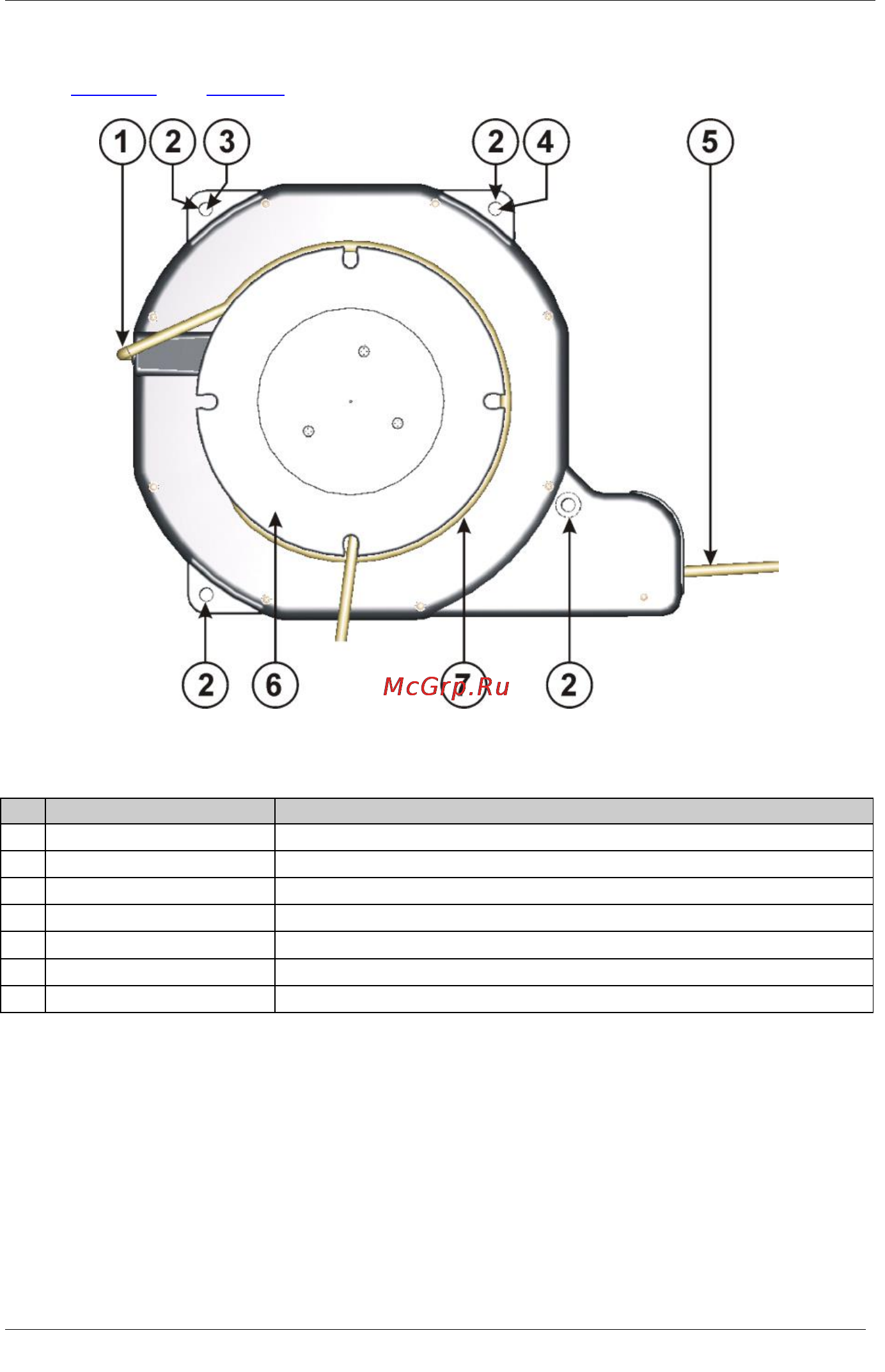

Figure 1 and Table 2 define the K-Able Box unit.

Figure 1: K-Able Box

Table 2: K-Able Box Features

Feature

Function

Cable—Fixed End

Connect to room wiring infrastructure, for example, leading to a projector

Mounting Holes (4)

For mounting horizontally to the underneath of a surface

Mounting Hole (1)

For mounting vertically using locking nut/bolt in the mounting bracket

Mounting Hole (1)

For mounting vertically using the pin in the mounting bracket

Cable—Extendable End

Connect to the mobile user device, for example, a laptop PC

Spool

For storage of the fixed cable end when not in use

Wrapped Cable

Fixed end of cable wrapped around the storage spool

If there is restricted space, it is possible to remove the cable storage spool by

removing the three screws securing it to the housing.

Note: When winding the fixed end of the cable around the storage spool,

keep a bend radius of at least 2cm (0.8in) where the cable exits the housing to

as avoid damaging the cable.
