Mounting the K-Able Box

5 Mounting the K-Able Box

This section consists of:

 Mounting the K-Able Box horizontally (See Section 5.1)

 Mounting a single K-Able Box vertically (see Section 5.2)

 Mounting multiple K-Able Box units vertically (see Section 5.3)

5.1 Mounting the K-Able Box Horizontally

The K-Able Box can be mounted horizontally to the underneath of a surface

(such as, a table) using the supplied screws.

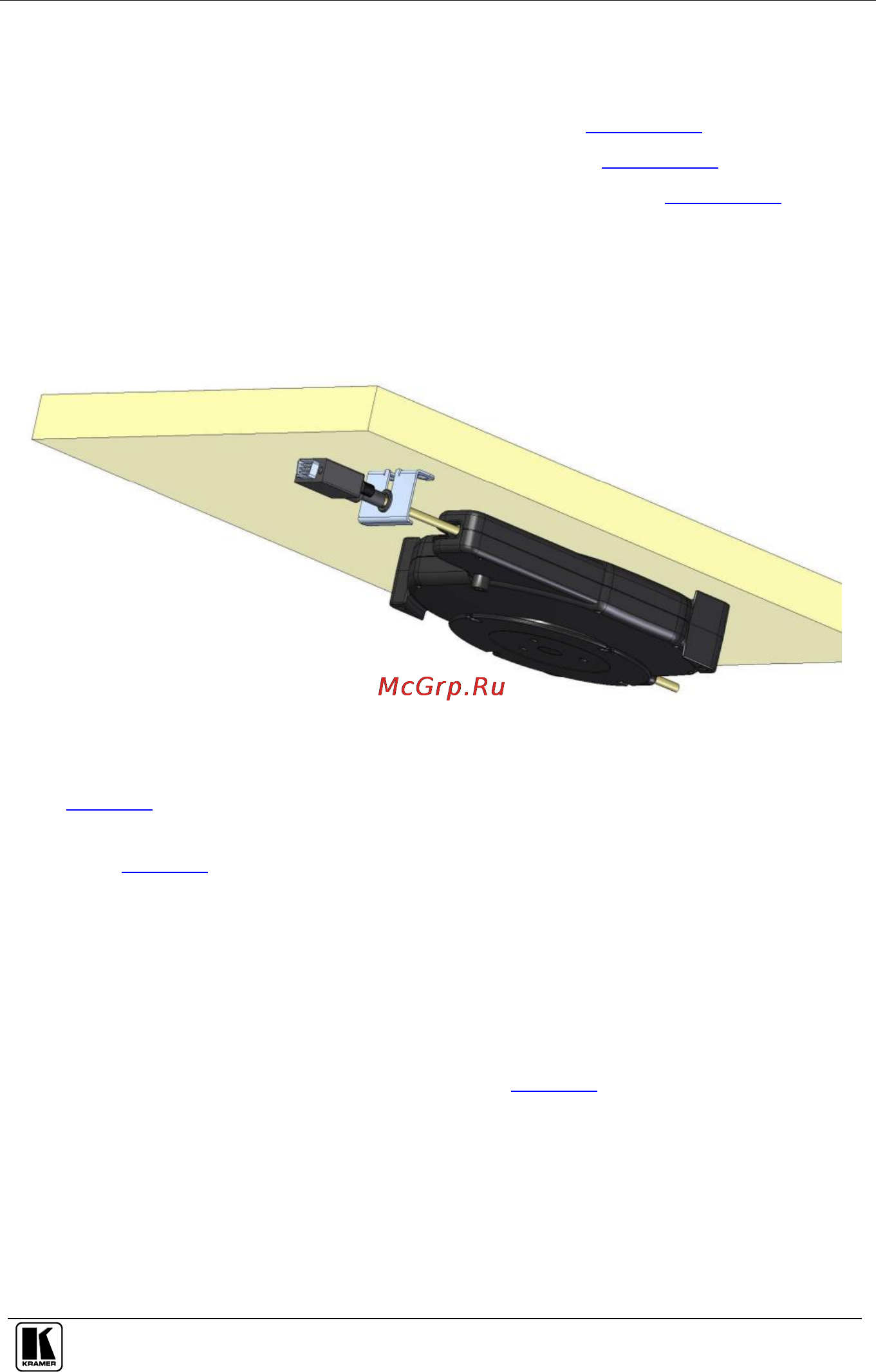

Figure 2: Mounting the K-Able Box and Cable Exit Bracket Horizontally

To mount the K-Able Box horizontally as illustrated in the example in

Figure 2:

1. Position the K-Able Box relative to the edge of the table as shown in

Figure 2 and secure it using the four wood screws supplied.

2. Feed the cable through the cable exit bracket.

3. Position the cable exit bracket underneath the table such that the cable

connector will not protrude beyond the edge of the table.

4. Secure the cable exit bracket using the two of the short wood screws

supplied.

5. Slide the plastic friction bush around the cable and press it into the

opening in the cable exit bracket (see Figure 3).
