5.2 Installing the Inner Frame

To install the inner frame:

1. Place the inner frame inside the TBUS-3xl enclosure.

2. Set the required height using your fingers to bring the inner frame to the

desired position, screw and tighten it in place using the height adjustment

screws (supplied with the inner frame).

Inner frame kits come with assembly instructions.

5.3 Cutting an Opening in the Table

To cut an opening in the table:

1. Place the included cut out template (that is included with your TBUS-3xl) on

the surface of the table exactly where you want to install the TBUS-3xl.

2. Attach the template to the table with the included screws (if using the cut out

template).

3. Following the

inside edge of the template, cut a hole in the table surface

with a sabre or keyhole saw according to the dimensions shown in

Figure

(not to scale).

The thickness of the table should be 76.2mm / 3 inches or less.

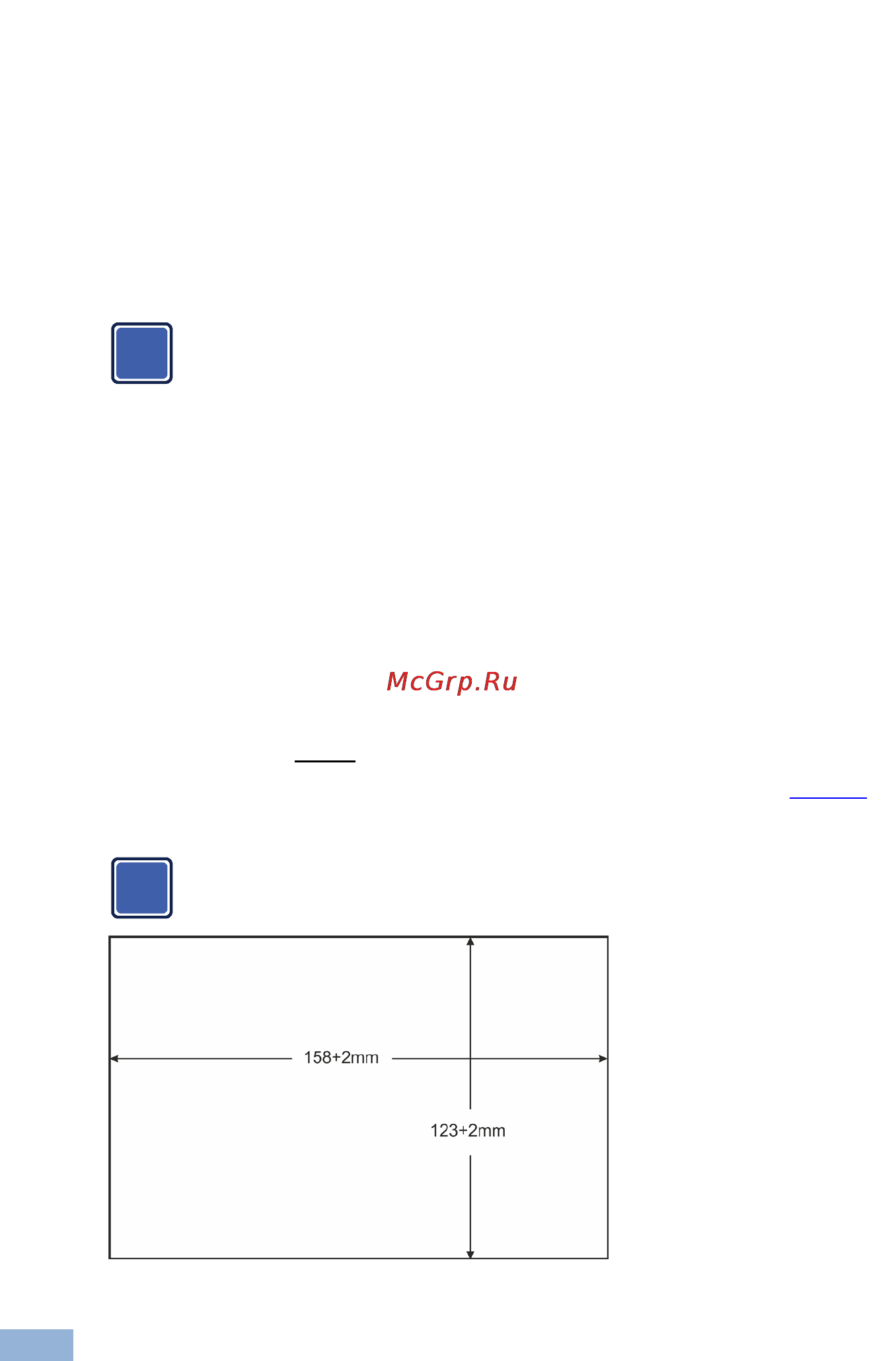

Figure 4: Cut out Dimensions
