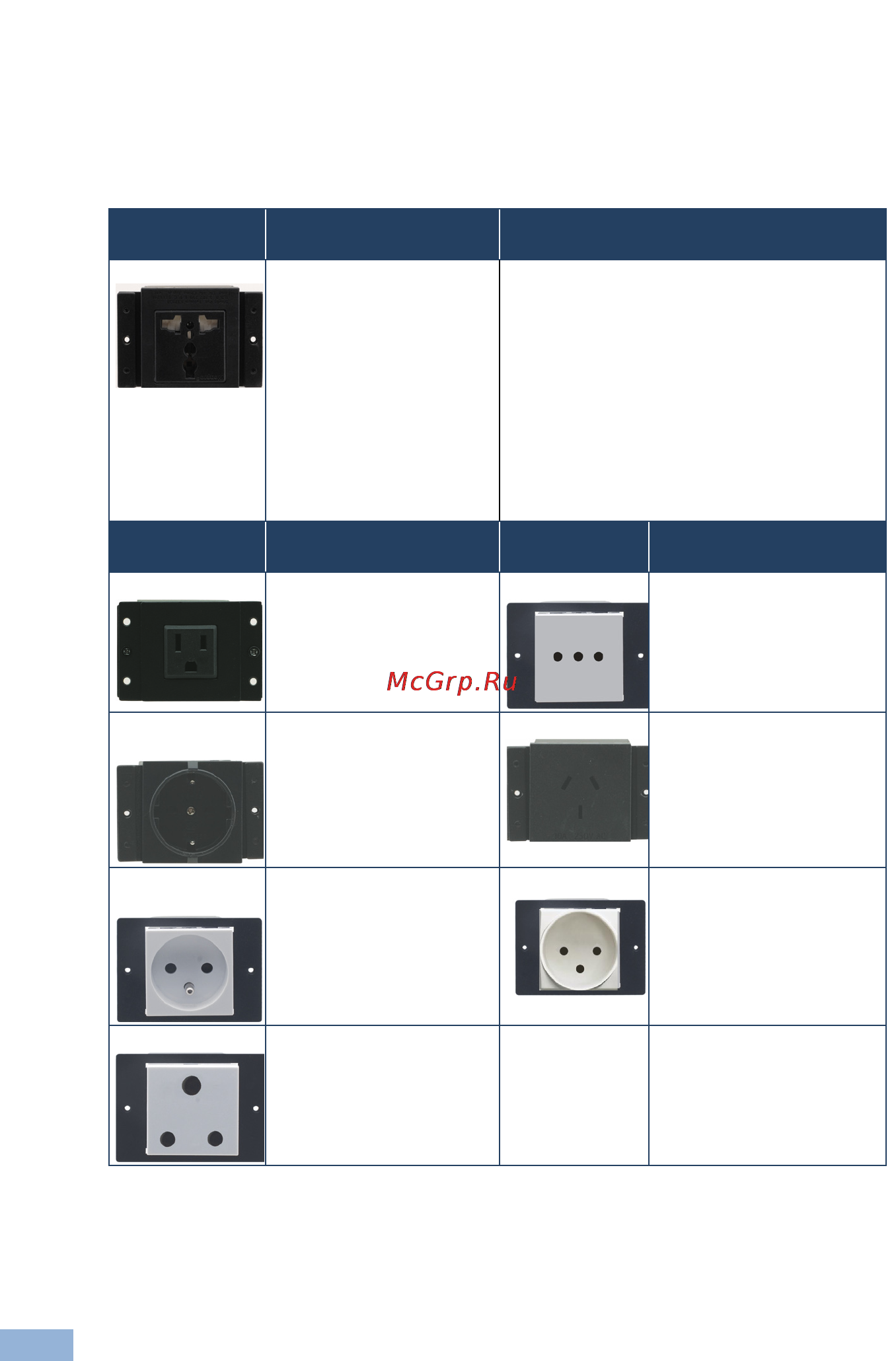

6 TBUS-3xl - Your TBUS-3xl Enclosure
4.3 Power Socket Options
A choice of power sockets per inner frame are available in several versions,
including power sockets for the USA, Germany (the Europlug), Belgium-France,
Italy, South Africa, Israel and Australia. A “Universal” socket for general use is also
available (see the compatibility restrictions in the table below).
Power Socket
Type
Power Specs Power Socket
Type
Power Specs
Universal:
TS/1U (80-000899)
100-240V AC, 50/60Hz,
5A
Maximum 5A per power
outlet
Fully compatible with power plugs in the
UK, India, Italy and Denmark, as well as
with the 2-prong Europlug.
Partially compatible (if the polarity is
reversed) with plugs in China, Switzerland,
Israel and the USA. The universal socket
does not supply grounding to plugs in
Central Europe and France and so you
should order country specific sockets
instead.
Not compatible with South African plugs.
Power Socket
Type
Power Specs Power
Socket Type
Power Specs
USA:
TS-1US (80-000999)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power
outlet
Italy:
TS-1IT (80-001499)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power
outlet
Germany and
EU:
TS-1DE (80-001299)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power
outlet
Australia:
TS-1AU (80-001599)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power
outlet
Belgium and
France:
TS-1FR (80-001399)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power
outlet
Israel:
TS-1IL (80-001799)
220V AC, 50/60Hz, 5A
Maximum 5A per power
outlet
South Africa
TS-1ZA (80-001699)
100-240V AC, 50/60Hz, 5A
Maximum 5A per power
outlet
