4 TBUS-3xl - Your TBUS-3xl Enclosure

4 Your TBUS-3xl Enclosure

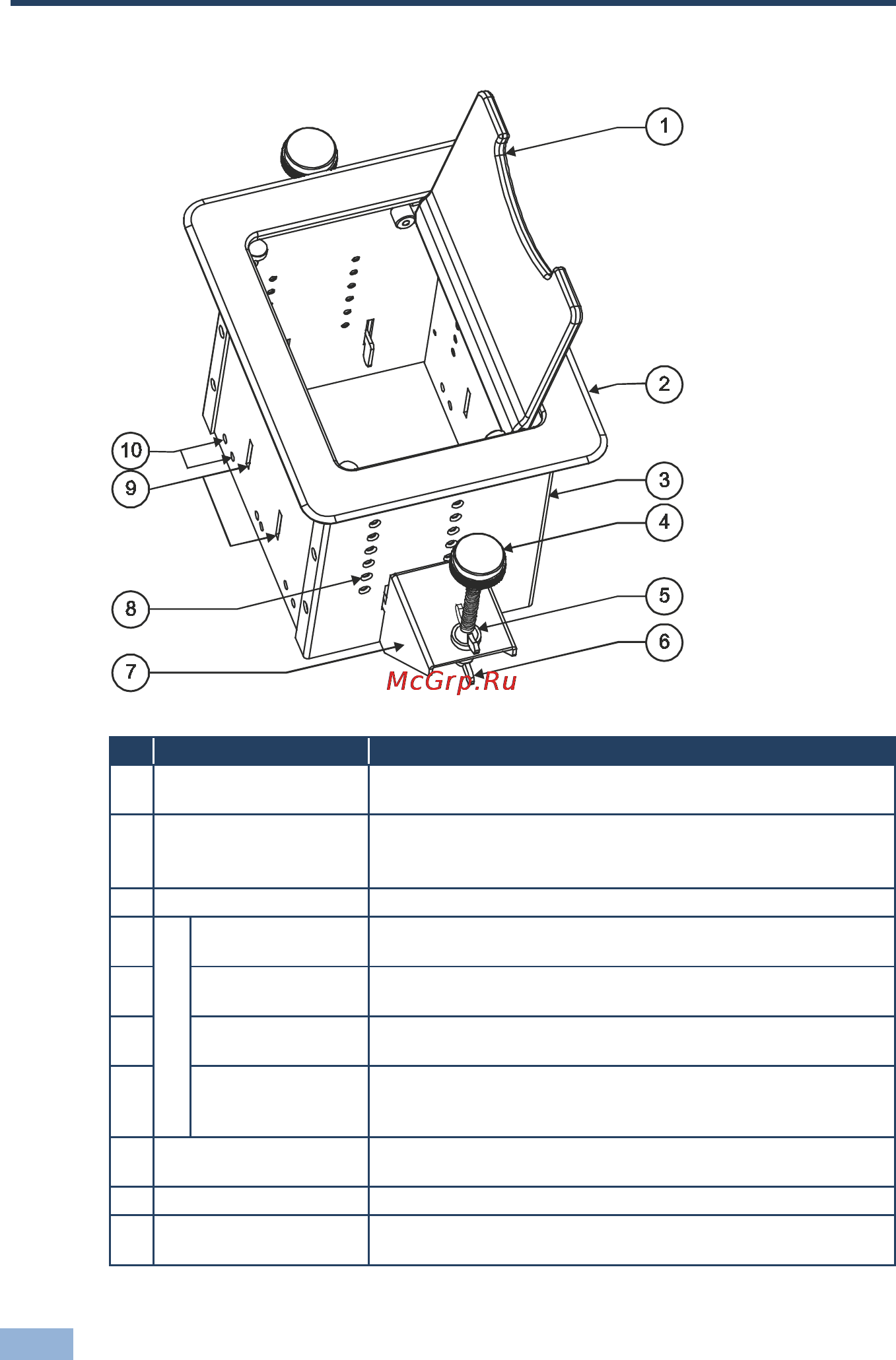

Figure 2: TBUS-3xl Enclosure Top View

# Feature Function

1 Black Anodized/Brushed

Clear Textured Lid

Includes an opening for cable pass-through; covers the inner

frame, leaving the table surface neat and tidy

2 Outer Rim Fits over the table surface.

A protective rubber guard protects the outer rim during

shipping. Remove it before installing the unit

3 Enclosure Inserted into the table cut out

Table Clamping Set

Rubber Protectors Protect the table surface when mounting the unit and ensure

soft tightening to the table underside (one for each clamp)

5 Locking Butterfly

Screws

Tighten to lock the mounting butterfly screw (one for each

clamp)

6 Mounting Butterfly

Screws

Tighten to secure the unit to the table surface (one for each

clamp)

7 Mounting Brackets

(2 units)

Fit in the bracket slits after inserting the enclosure into the

table – to secure the unit to the table surface (one for each

clamp)

8 Height Adjustment

Screw holes

The screw holes on each side panel are used for adjusting the

height of the inner frame

9 Bracket Slits For attaching the two mounting brackets on opposite sides

10 Tie Holes Insert the self-locking tie through the holes to fix the pass-

through cables to the inside walls of the unit
