TBUS-3xl - Installing the TBUS-3xl 13

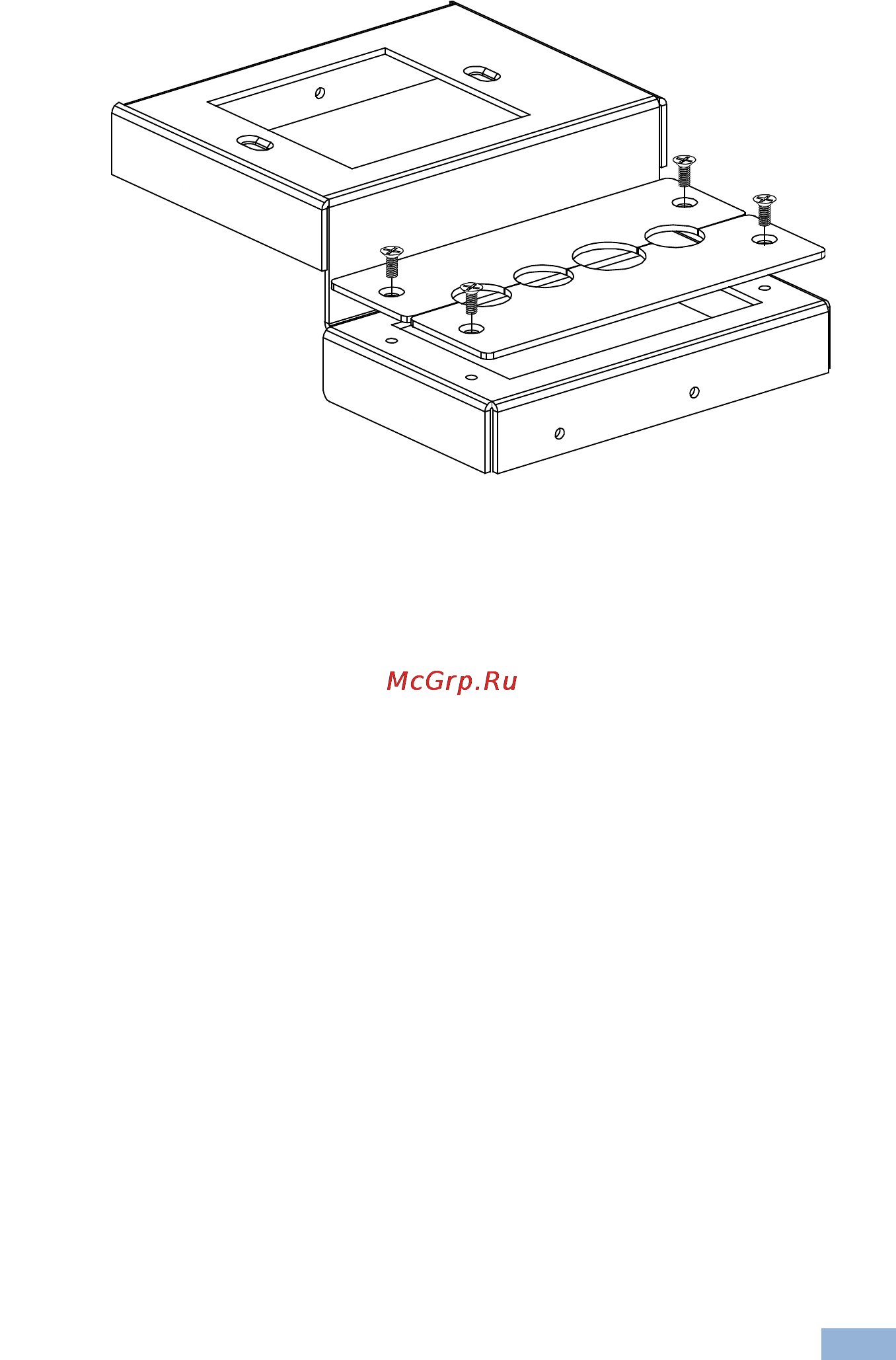

Figure 6: 4-cable Pass-through Insert (P/N: 80-003199)

5.7 Inserting the Pass-through Cables

When replacing a blank insert with the pass-through insert, for example, to

connect a laptop, do the following:

1. Remove the two screws attaching the split pass-through bracket.

2. Remove the split grommet.

3. Insert the cable through the rectangular opening.

4. Open the split grommet slightly and insert the required cables.

5. Place the split bracket around the grommet and position this assembly over

the Inner Frame.

6. Place the two screws appropriately and tighten the split bracket together

with the grommet and inserted cables to the inner frame.

7. Insert the self-locking ties through the tie holes to secure the cables to the

inside walls of the enclosure.
