TBUS-4xl - Installing the TBUS-4xl 9

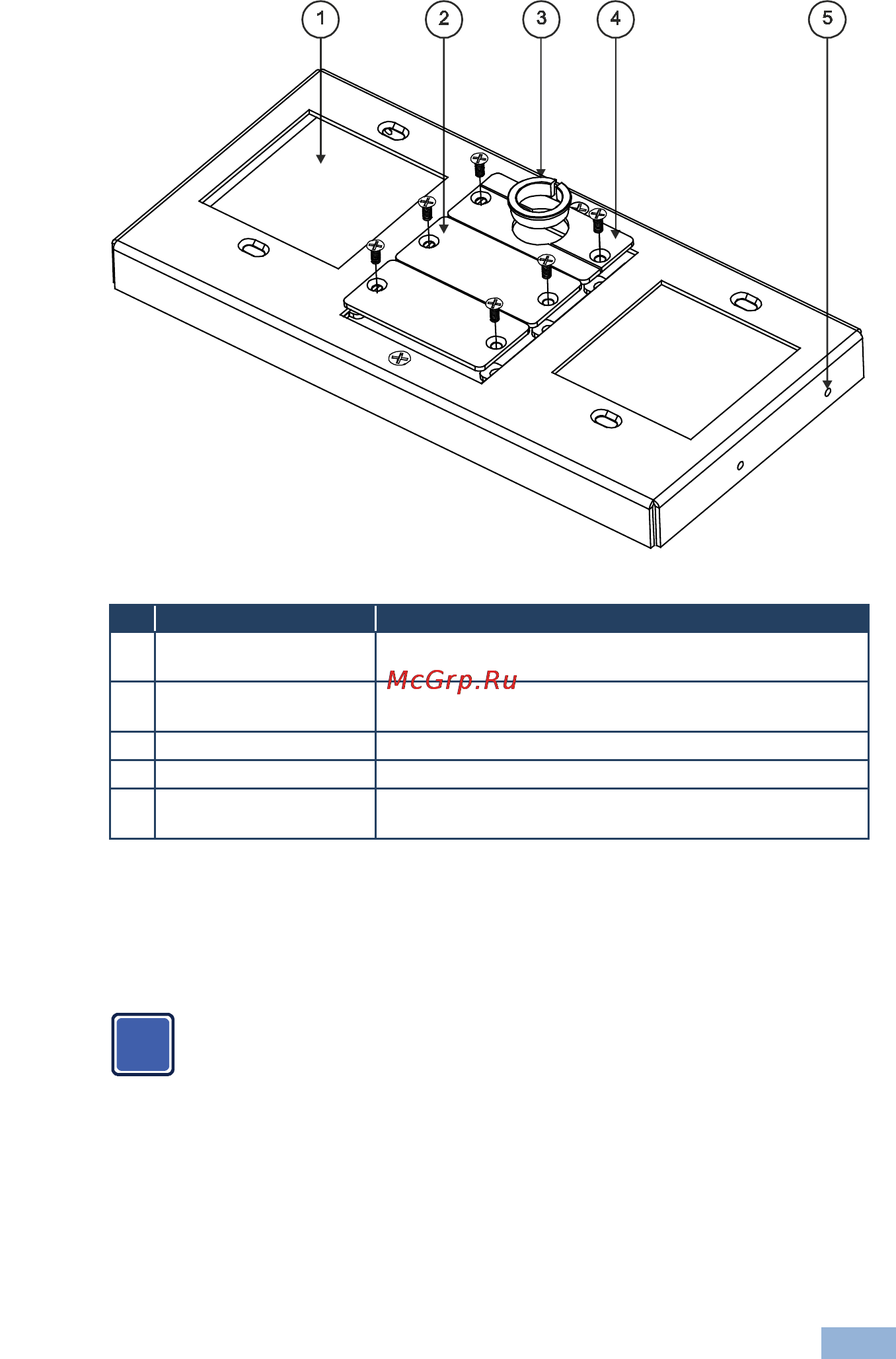

Figure 3: TBUS-4xl Inner Frame (P/N: 80-003699)

Feature

Function

1 Power Socket Opening Suitable for a single power socket or the optional insert kit

for TBUS

2 Blank Plates Two blank covers that can be replaced with wall plates as

required

3 Split Grommets Push apart slightly to insert cables

4 Split Brackets Support the split grommet for the pass through-cables

5 Adjustable Height Screw

Holes

For adjusting the height of the inner frame

5.1.2 Mounting the Power Socket Assemblies

To mount the power socket, place the power socket under the frame in its

appropriate place and tighten with the two screws (supplied).

Power socket kits come with assembly instructions.
