Kramer TBUS-4xl [7/20] Your tbus 4xl enclosure

4 TBUS-4xl - Your TBUS-4xl Enclosure

4 Your TBUS-4xl Enclosure

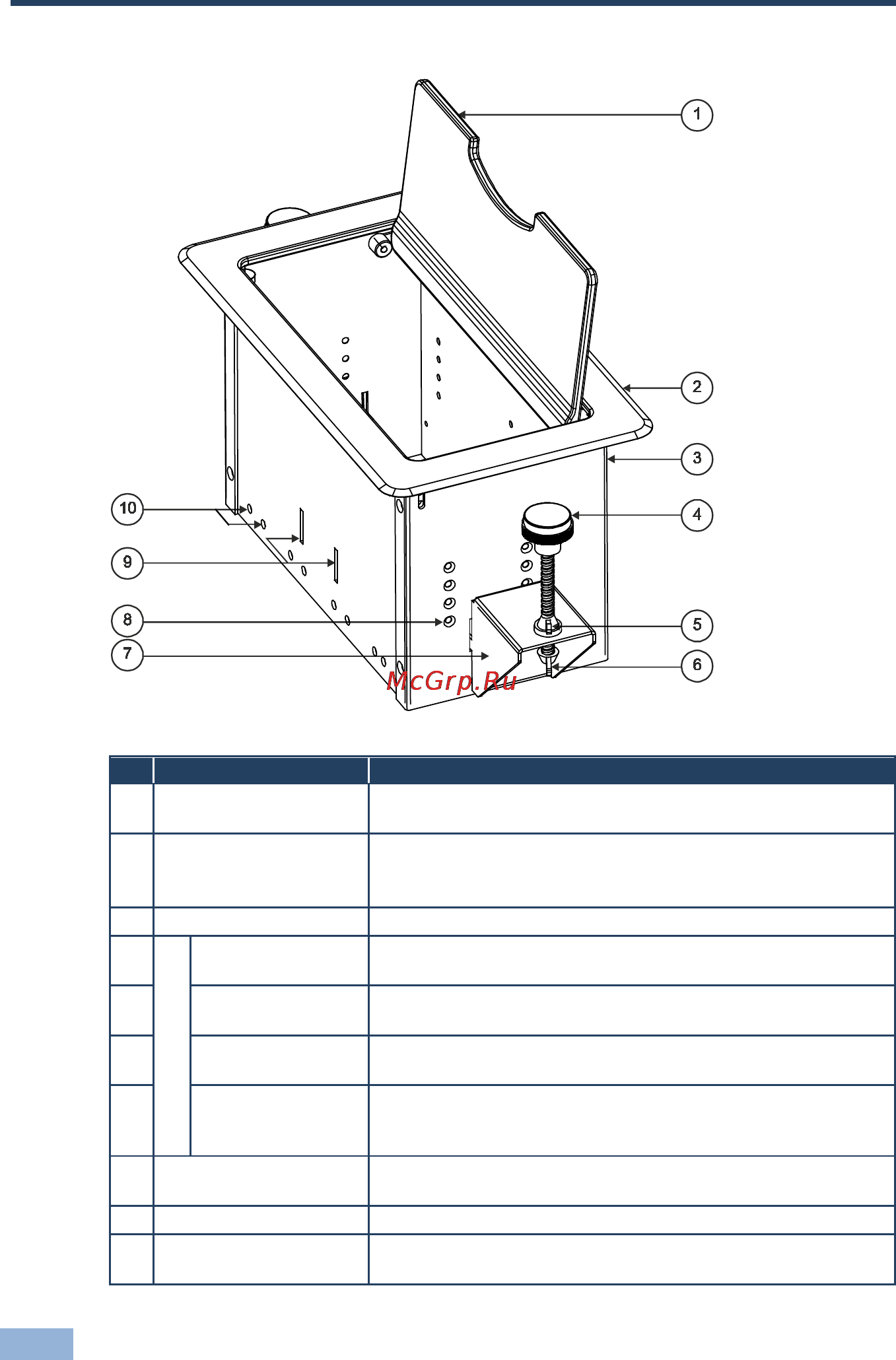

Figure 2: TBUS-4xl Enclosure Top View

Feature

Function

1 Black Anodized/Brushed

Clear Textured Lid

Includes an opening for cable pass-through; covers the Inner

Frame, leaving the table surface neat and tidy

2 Outer Rim Fits over the table surface.

A protective rubber guard protects the outer rim during

shipping. Remove it before installing the unit

3 Enclosure Inserted into the table cut out

Table Clamping Set

Rubber Protectors Protect the table surface when mounting the unit (one for each

clamp)

5 Locking Butterfly

Screws

Tighten to lock the mounting butterfly screw (one for each

clamp)

6 Mounting Butterfly

Screws

Tighten to secure the unit to the table surface (one for each

clamp)

7 Mounting Brackets Fit in the bracket slits after inserting the enclosure into the

table – to secure the unit to the table surface (one for each

clamp)

8 Height Adjustment

Screw holes

The screw holes on each side panel are used for adjusting the

height of the Inner Frame

9 Bracket Slits For attaching the two mounting brackets on opposite sides

10 Tie Holes Insert the self-locking tie through the holes to fix the pass-

through cables to the inside walls of the unit
