26
English

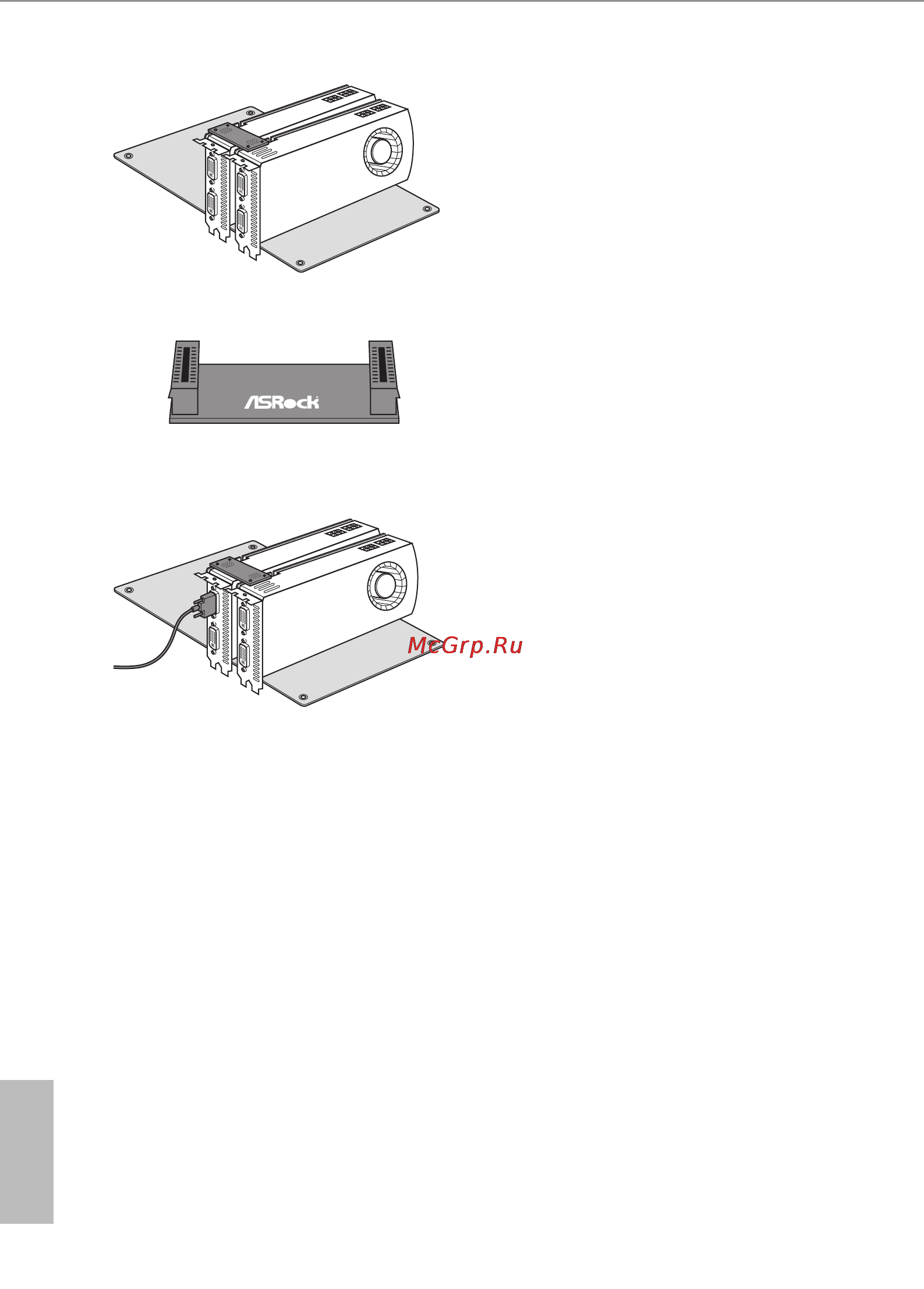

Step 3
Align and insert the ASRock Flexible SLI
Bridge Connector Cable to the goldngers
on each graphics card. Make sure the AS-
Rock Flexible SLI Bridge Connector Cable
is rmly in place.
Step 4
Connect a VGA cable or a DVI cable to the
monitor connector or the DVI connector of
the graphics card that is inserted to PCIE1
slot.
ASRock Flexible SLI Bridge Connector Cable
