89
English
Z97M OC Formula

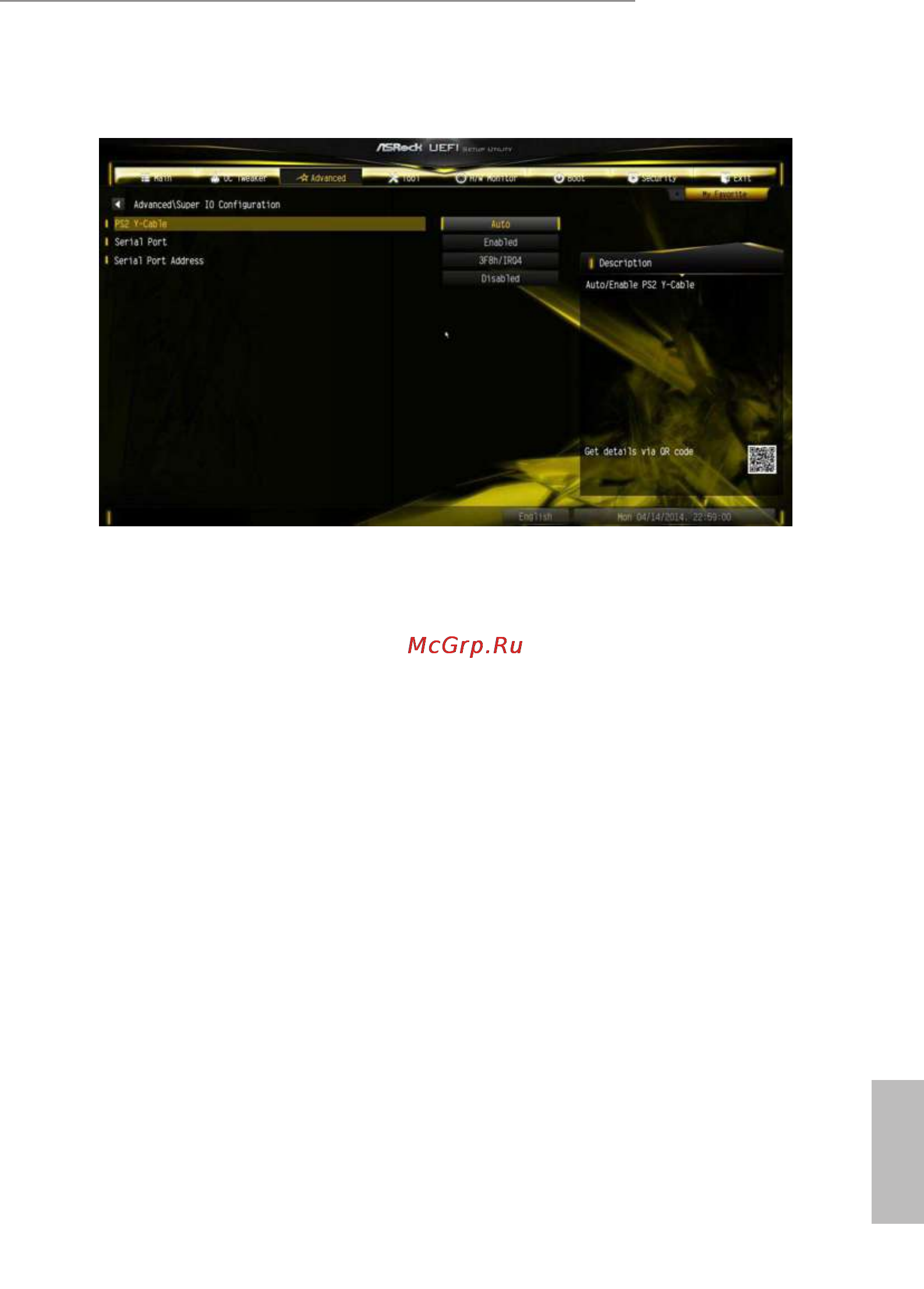

4.4.7 Super IO Conguration
PS2 Y-Cable
Enable the PS2 Y-Cable or set this option to Auto.
Serial Port
Enable or disable the Serial port.
Serial Port Address
Select the address of the Serial port.
