65
English
Z97M OC Formula

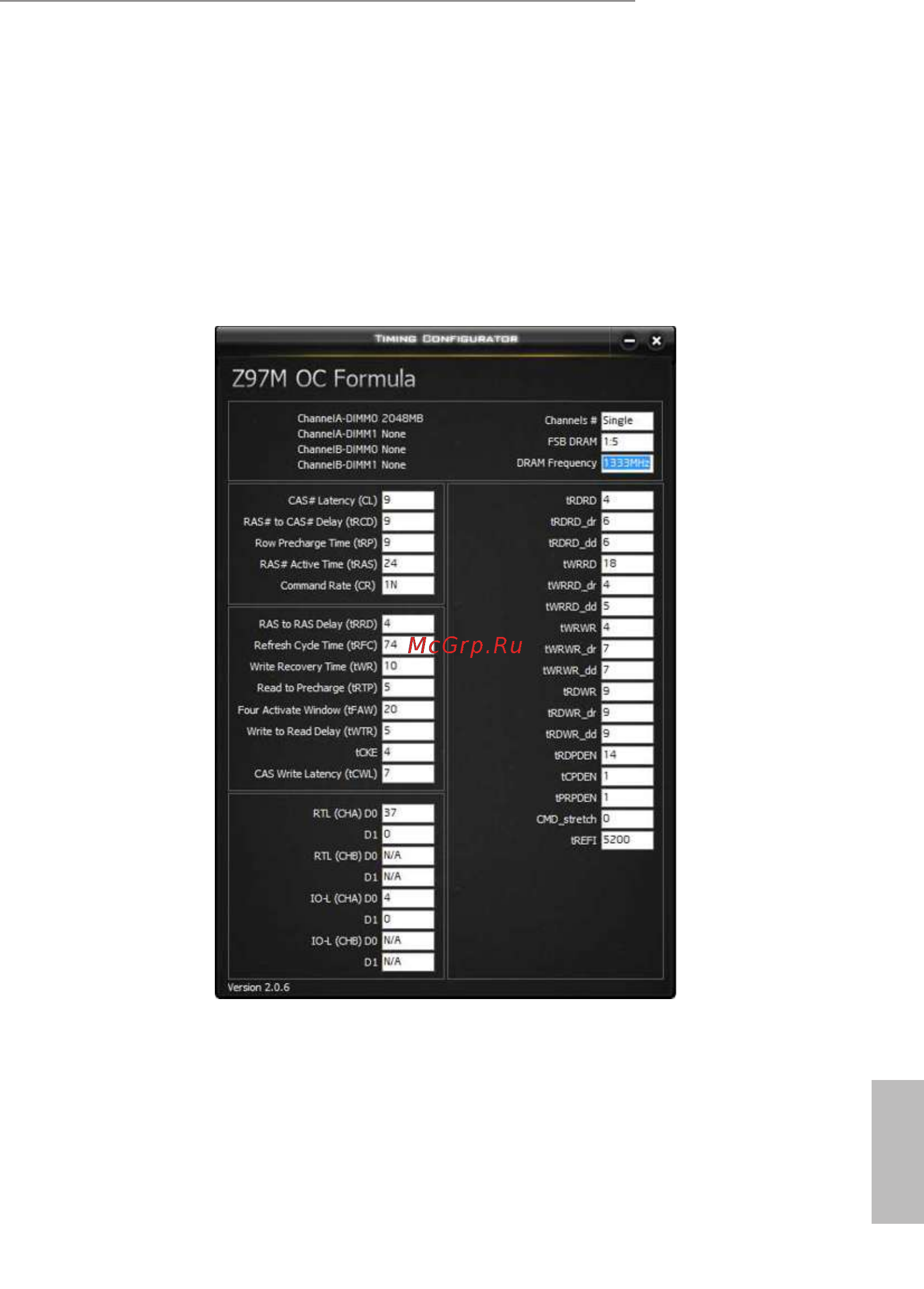

3.9 Timing Congurator
Timing Congurator* is a fast and easy tool that provides users an overview of
abundant collection of subtle DRAM settings. You won’t even have to waste time
on entering into the UEFI or restarting the system, Timing Congurator is an
independent application that runs under Windows® OS and let you know the
current status of all conguration items immediately.
*For Windows 7 and above
*e is for reference only. e actual screen may dier by model.
