ASRock z97m oc formula [65/110] Setting
![ASRock z97m oc formula [65/110] Setting](/views2/1159430/page65/bg41.png)
59
English
Z97M OC Formula
3.6.4 Setting

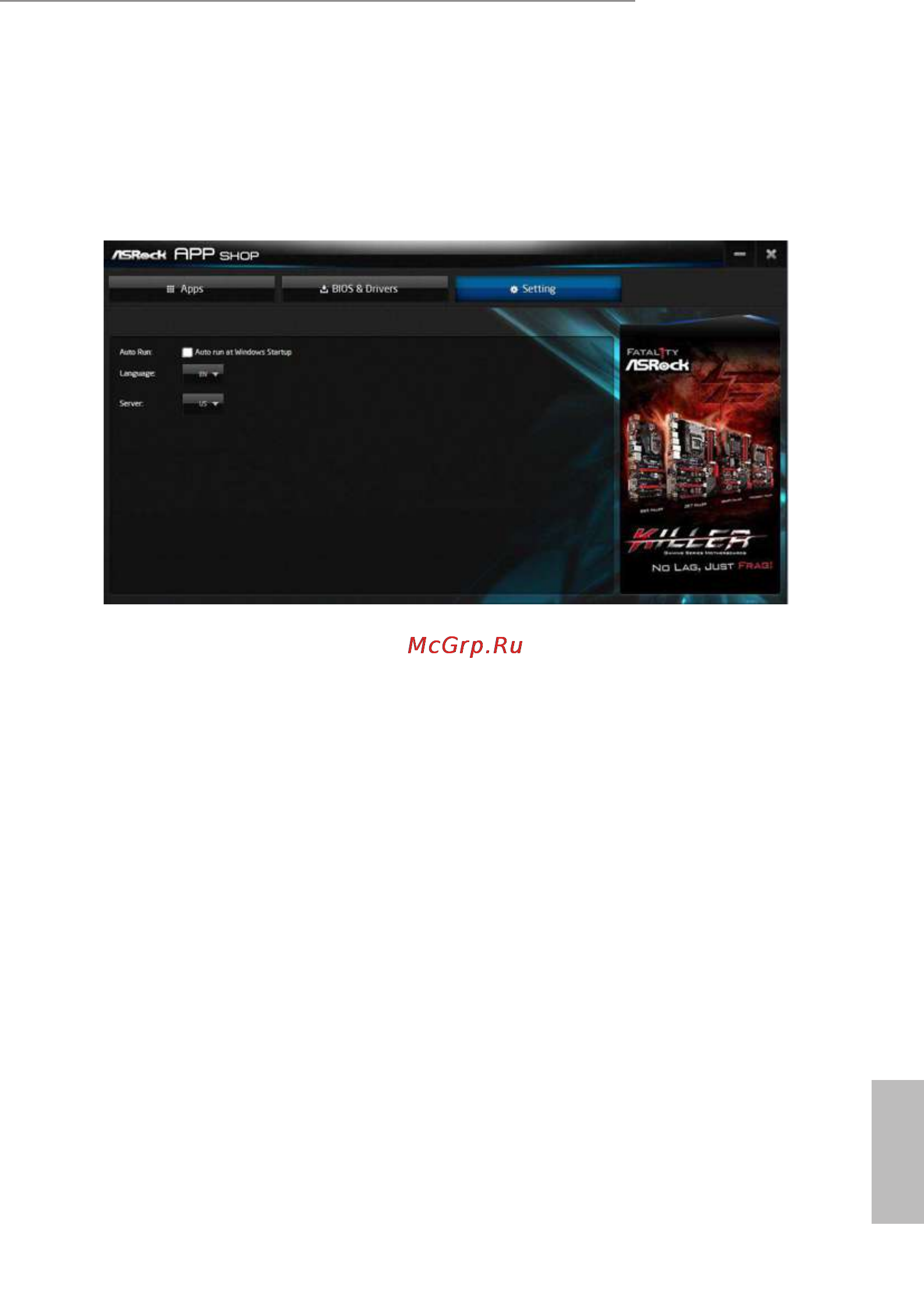

In the "Setting" page, you can change the language, select the server location, and
determine if you want to automatically run the ASRock APP Shop on Windows
startup.
