Z97M OC Formula
Upgrading an App
You can only upgrade the apps you have already installed. When there is an
available new version for your app, you will nd the mark of "New Version"
appears below the installed app icon.

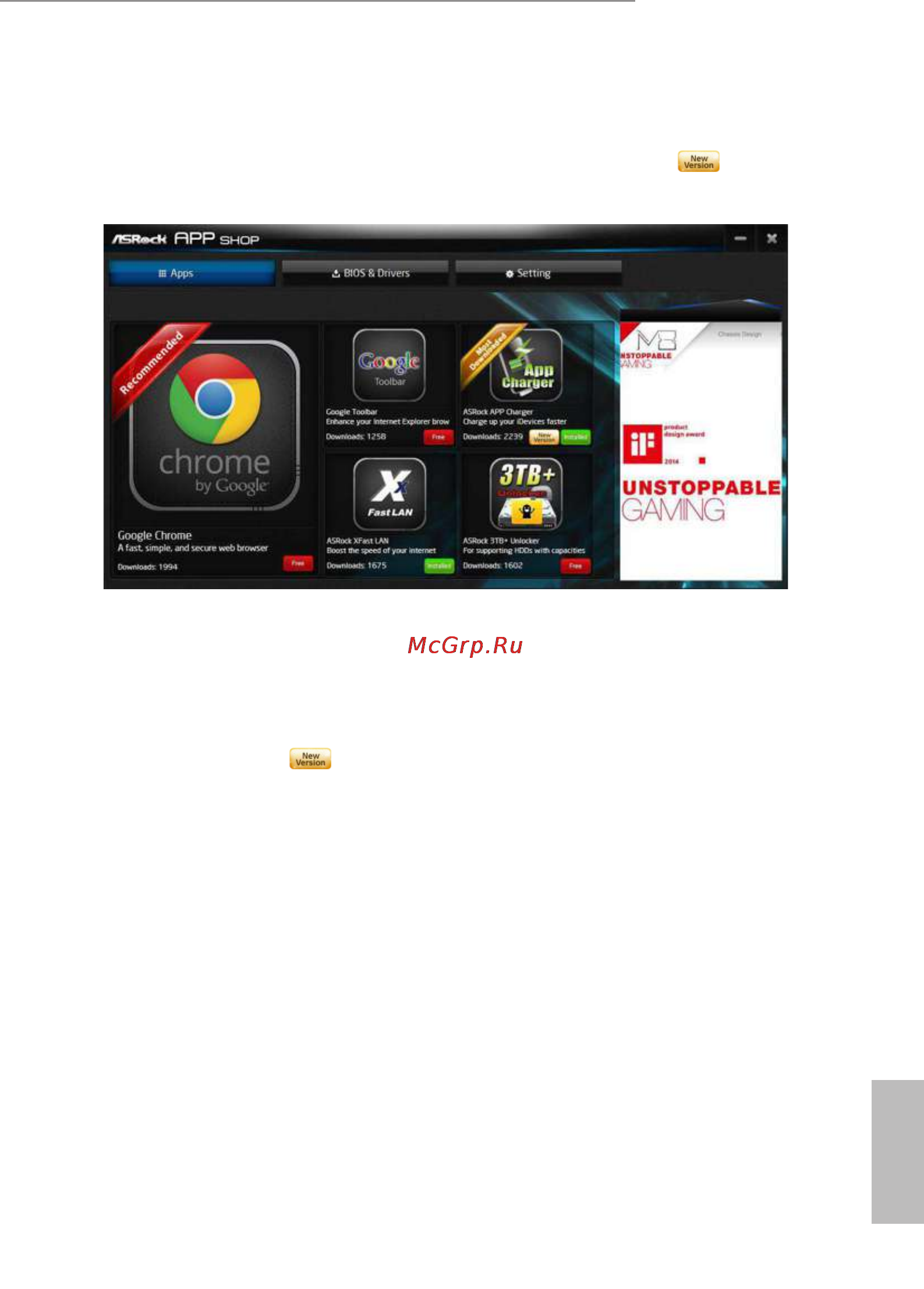

Step 1
Click on the app icon to see more details.
Step 2
Click on the yellow icon
to start upgrading.
