88
English

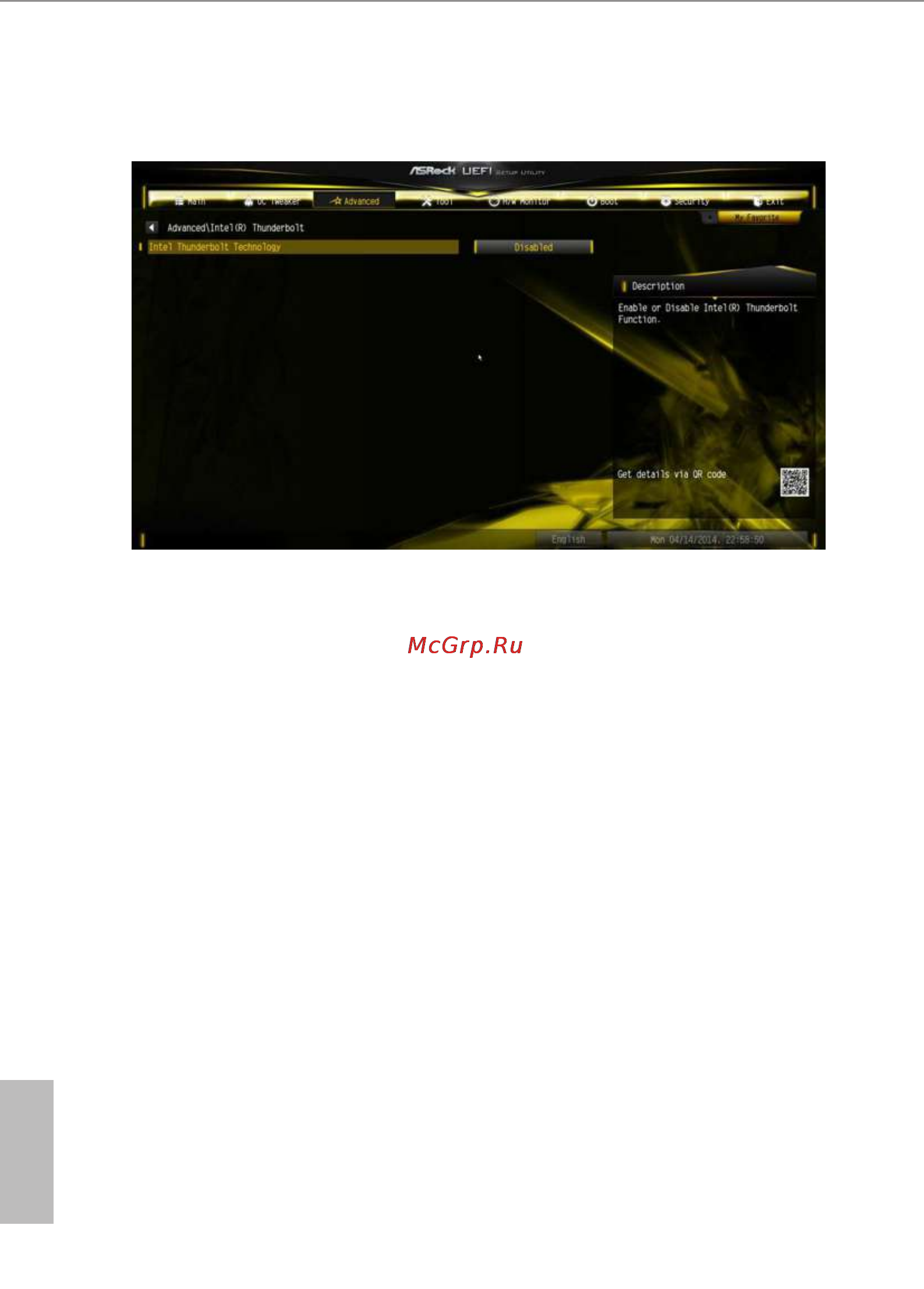

4.4.6 Intel® Thunderbolt
Intel
®
Thunderbolt Technology
Enable or disable the Intel® underbolt™ function.
Security Level
Select Legacy to skip the Windows certication checking process for underbolt™
devices. Select Unique ID for checking the Windows certication, and show
warning messages if the devices aren't certied. Or select DP++ to support DP 1.2.
Wake From Thunderbolt
™
Devices
Allow the system to be waked up by underbolt™ devices.
Ignore Thunderbolt™ Option Rom
Enable to skip underbolt™ Option ROM during POST for faster boot speed.
TBT Device IO resource Support
Enable IO Resource Support if your older underbolt devices have trouble working
properly.
Thunderbolt™ PCIe Cache-line Size
Congure the cache-line size of the underbolt PCIe subtree.
