Asus h81-plus [10/74] Motherboard layout
![Asus h81-plus [10/74] Motherboard layout](/views2/1159647/page10/bga.png)
1-2
Chapter 1: Product introduction
H81-PLUS
Place this side
towards the rear
of the chassis

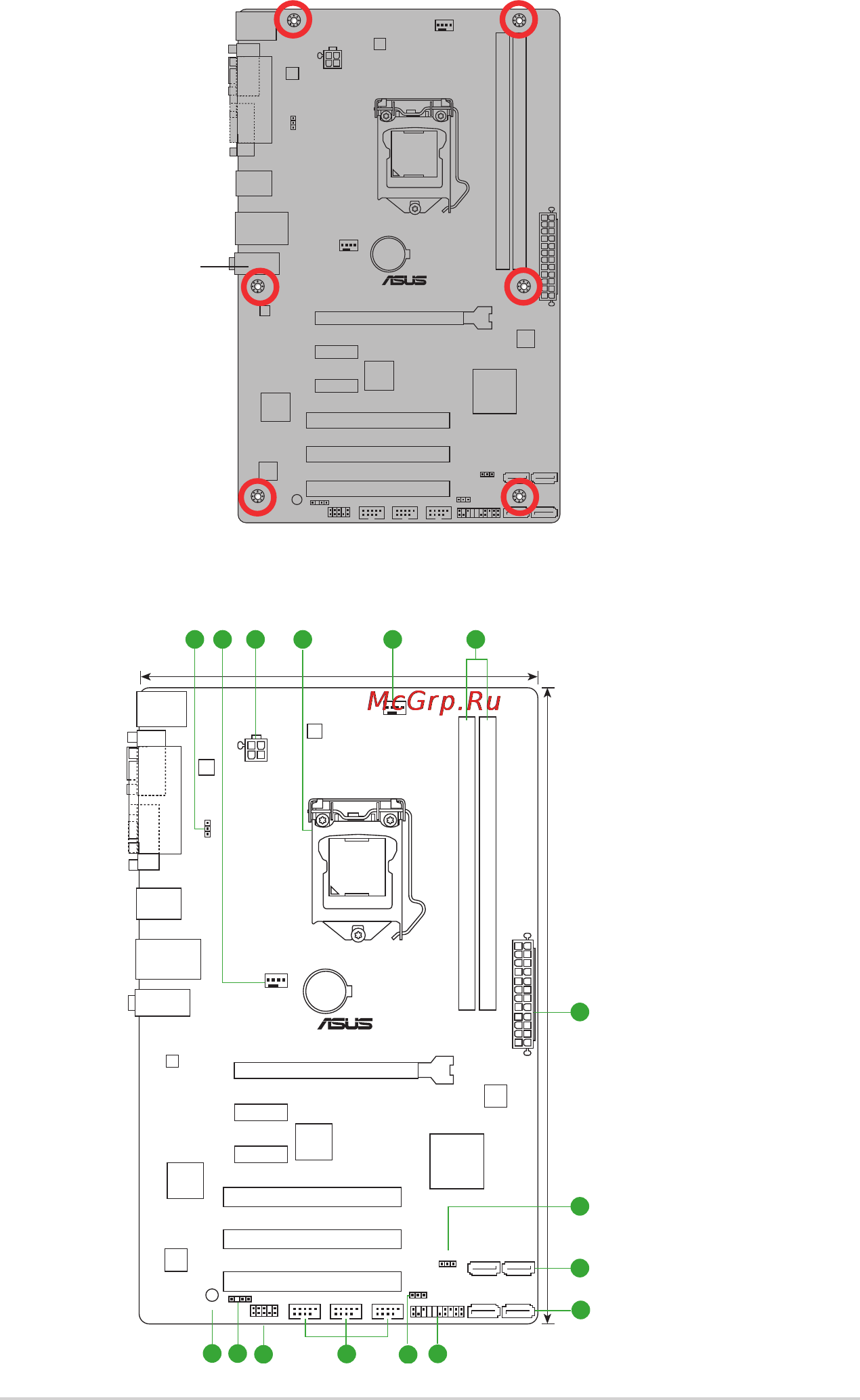

1.2.3 Motherboard layout
H81-PLUS
PCIEX16_1
PCIEX1_1
PCIEX1_2
ASM
1083
PCI2
PCI1
PCI3
USB910 USB1112 USB1314
AAFP
EATXPWR
CPU_FAN
BATTERY
Super
I/O
RTL
ALC887
RTL 8111G
KBMS
64Mb
BIOS
SB_PWR
CLRTC
USBPWF
KB_USBPWB
18.8cm(7.4in)
Intel
®
H81
DDR3 DIMM_A1 (64bit, 240-pin module)
DDR3 DIMM_B1 (64bit, 240-pin module)
SATA3G_2SATA3G_1
PANEL
SATA6G_2SATA6G_1
AUDIO
LAN_USB34
USB3_12
CHA_FAN
SPDIF_OUT
30.5cm(12.0in)
LGA1150
DIGI
+VRM
ASM
1083
ATX12V
VGA
LPT
COM
23 421 5
8
12
9
10
11
13
6
3
7
8
14
