2-14
Chapter 2: Getting started

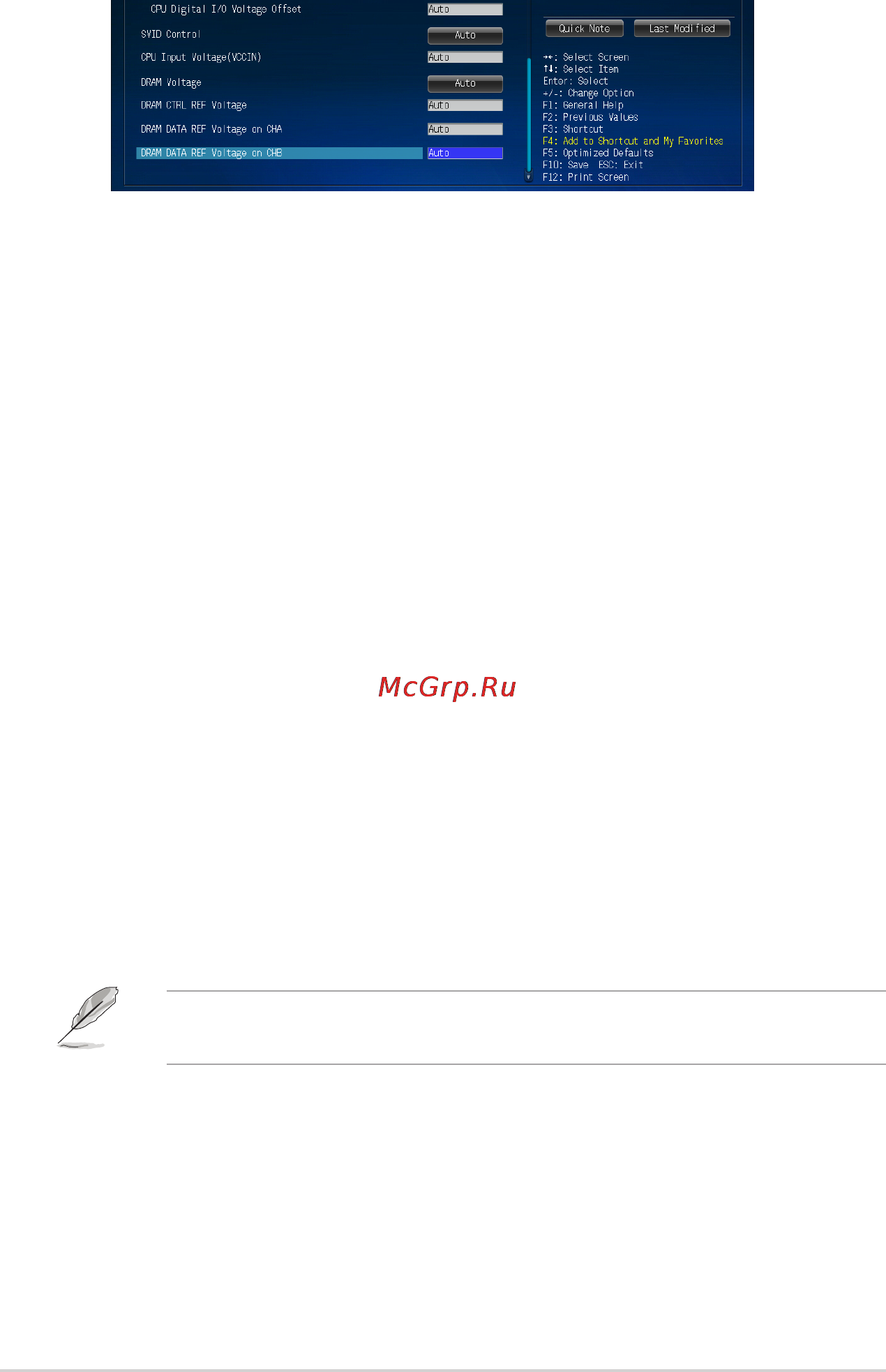

Scroll down to display the following items:
TargetCPUTurbo-ModeSpeed:xxxxMHz
Displays the target CPU Turbo-Mode speed.
TargetDRAMSpeed:xxxxMHz
Displays the target DRAM speed.
TargetCacheSpeed:xxxxMHz
Displays the target Cache speed.
TargetDMI/PEGClock:xxxxMHz
Displays the target DMI/PEG clock.
TargetiGPUSpeed:xxxxMHz
Displays the target iGPU speed.
2.5.1 ASUS MultiCore Enhancement [Auto]
[Auto] Default set to [Auto] for maximum performance under XMP/Manual/User-
dened memory frequency mode.
[Disabled] Allows you to set to default core ratio settings.
2.5.2 CPU Core Ratio [Auto]
Allows you to set the CPU core ratio automatically or manually.
[Auto] Sets all CPU Core Ratio to Intel
®
CPU default settings automatically.
[Sync All Cores] Allows you to set CPU Core Ratio settings for all cores.
[Per Core] Allows you to set CPU Core Ratio individually.
The following two items appear only when you set the CPU Core Ratio to [Sync All
Cores] or [Per Core].
1-Core Ratio Limit [Auto]
Allows you to set the 1-Core Ratio Limit. Select [Auto] to apply the CPU default Turbo
Ratio setting or manually assign a 1-Core Ratio Limit value that is higher than or equal
to the 2-Core Ratio Limit.
