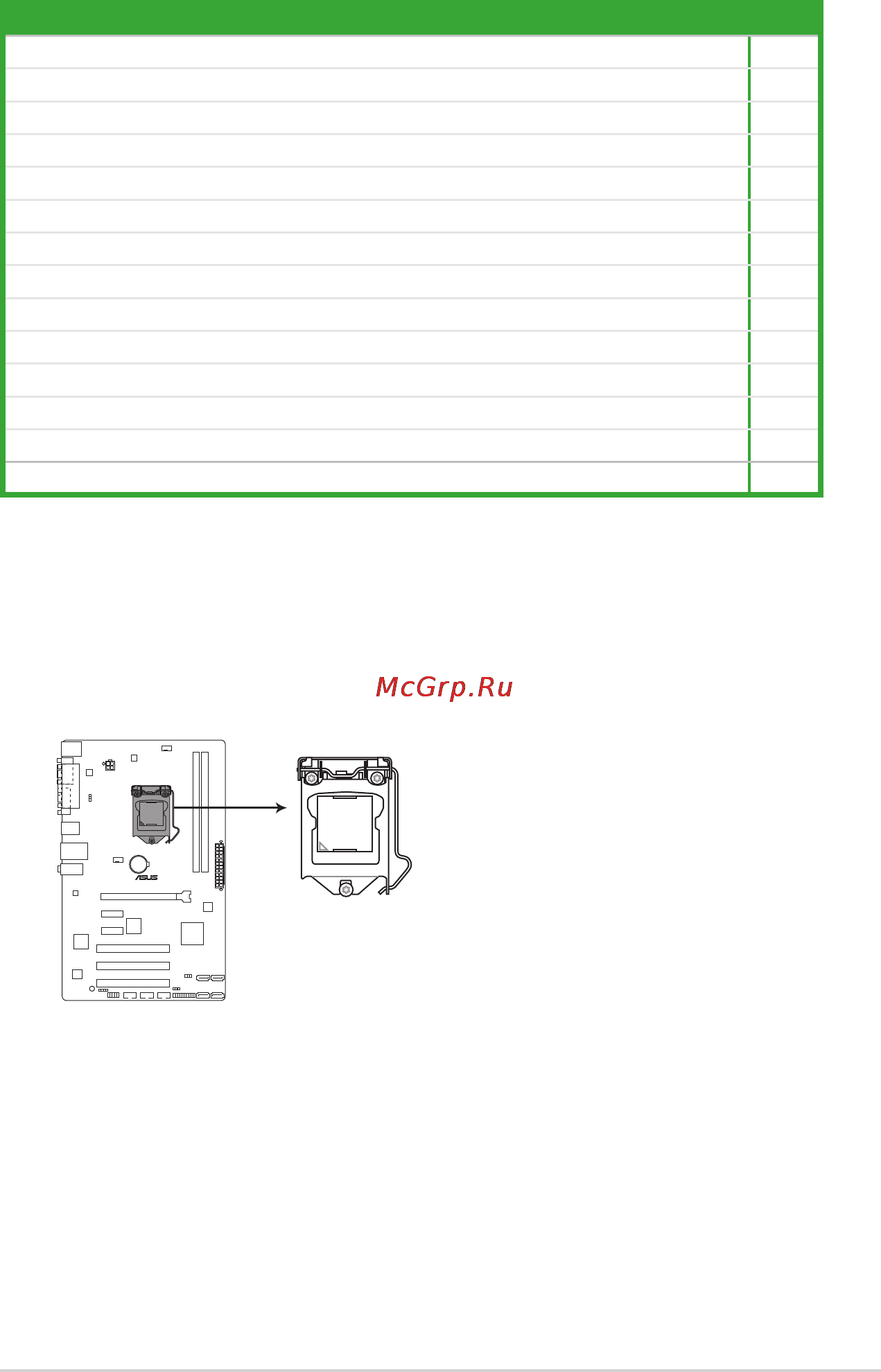

ASUS H81-PLUS
1-3
1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. Keyboard and USB device wakeup (KB_USBPWB) 1-12
2. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN) 1-16
3. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V) 1-14
4. Intel
®
LGA1150 CPU socket 1-3
5. DDR3 DIMM slots 1-7
6. Clear RTC RAM (3-pin CLRTC) 1-10
7. Intel
®
H81 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1~2 [yellow]) 1-15
8. Intel
®
H81 Serial ATA 3.0Gb/s connector (7-pin SATA3G_1~2 [dark brown]) 1-16
9. System panel connector (20-8 pin F_PANEL) 1-17
10. USB device wake-up (USBPWF) 1-11
11. USB 2.0 connectors (10-1 pin USBUSB56, 910, USB1112) 1-17
12. Front panel audio connector (10-1 pin AAFP) 1-15
13. Digital audio connector (4-1 pin SPDIF_OUT) 1-14
14. Onboard LED (SB_PWR) 1-18
1.3 Central Processing Unit (CPU)
This motherboard comes with a surface mount LGA1150 socket designed for the Intel
®
4th
generation Core™ i7 / Core™ i5 / Core™ i3, Pentium
®
, Celeron
®
processors.
H81-PLUS
H81-PLUS CPU socket LGA1150
