Asus h81-plus [18/74] Pci express 2 x1 slots

1-10

Chapter 1: Product introduction

1.5.3 PCI Express 2.0 x1 slots

This motherboard supports PCI Express x1 network cards, SCSI cards, and other cards that

comply with the PCI Express specications.

1.5.4 PCI Express x16 slot

This motherboard supports PCI Express x16 network cards, SCSI cards, and other cards that

comply with the PCI Express specications.

1.5.5 PCI slots

The PCI slots support cards such as a LAN card, SCSI card, USB card, and other cards that

comply with PCI specications.

1.6 Jumpers

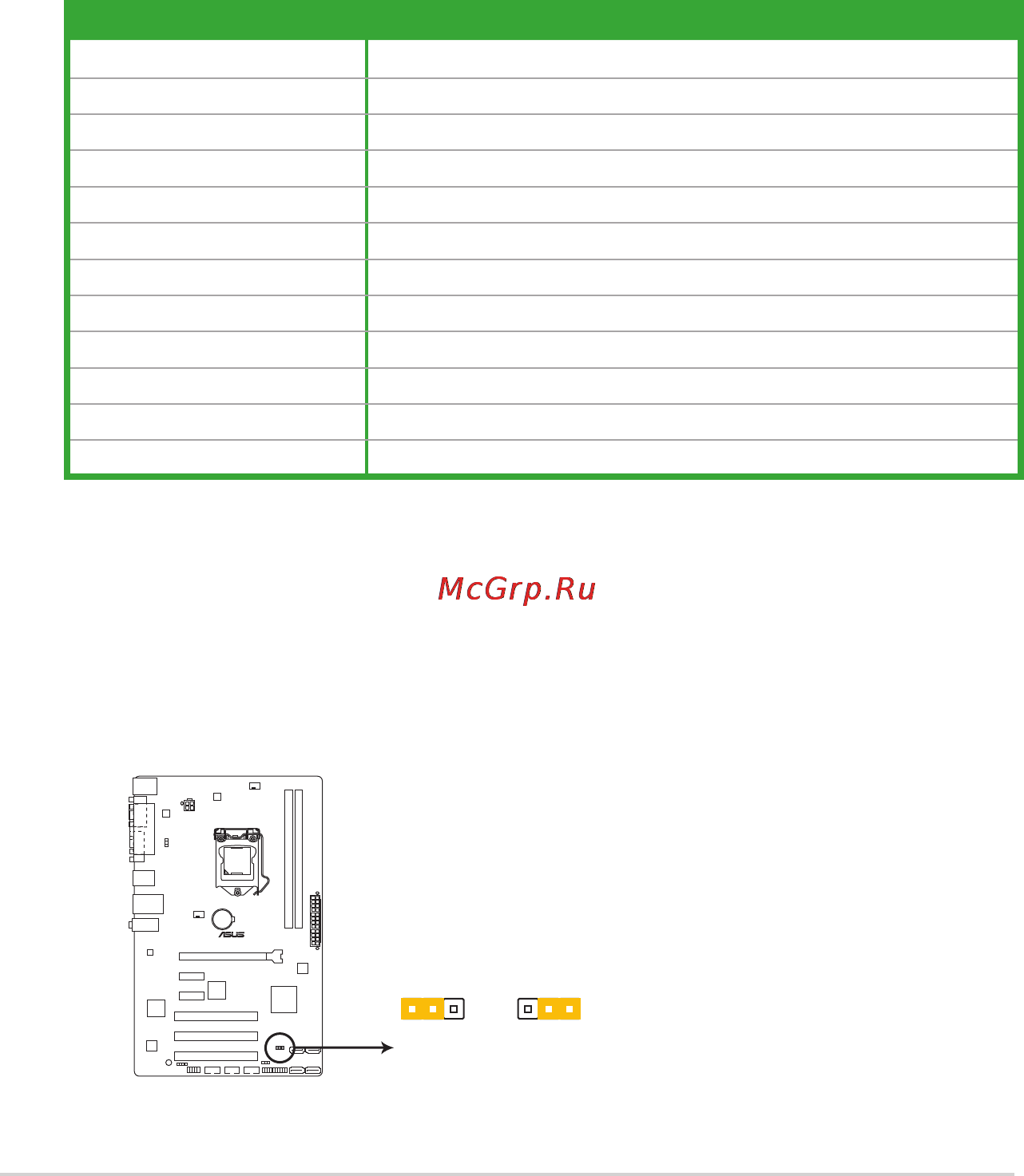

1. Clear RTC RAM (3-pin CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can

clear the CMOS memory of date, time, and system setup parameters by erasing

the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in

CMOS, which include system setup information such as system passwords.

IRQ assignments for this motherboard

H81-PLUS

H81-PLUS Clear RTC RAM

1 2 2 3

Normal

(Default)

Clear RTC

CLRTC

A B C D E F G H

LAN

– – shared – – – – –

PCIE x16

shared – – – – – – –

PCIE x1_1

shared – – – – – – –

PCIE x1_2

– shared – – – – – –

PCI_1

– – – shared – – – –

PCI_2

shared – – – – – – –

PCI_3

– shared – – – – – –

Intel PCH SATA Controller

– – – shared – – – –

HD Audio

– – – – – – shared –

USB2.0_1

– – – – – – – shared

USB2.0_2

– – – – shared – – –

USB3.0

– – – – – shared – –
