ASUS Z9PA-U8 2-31

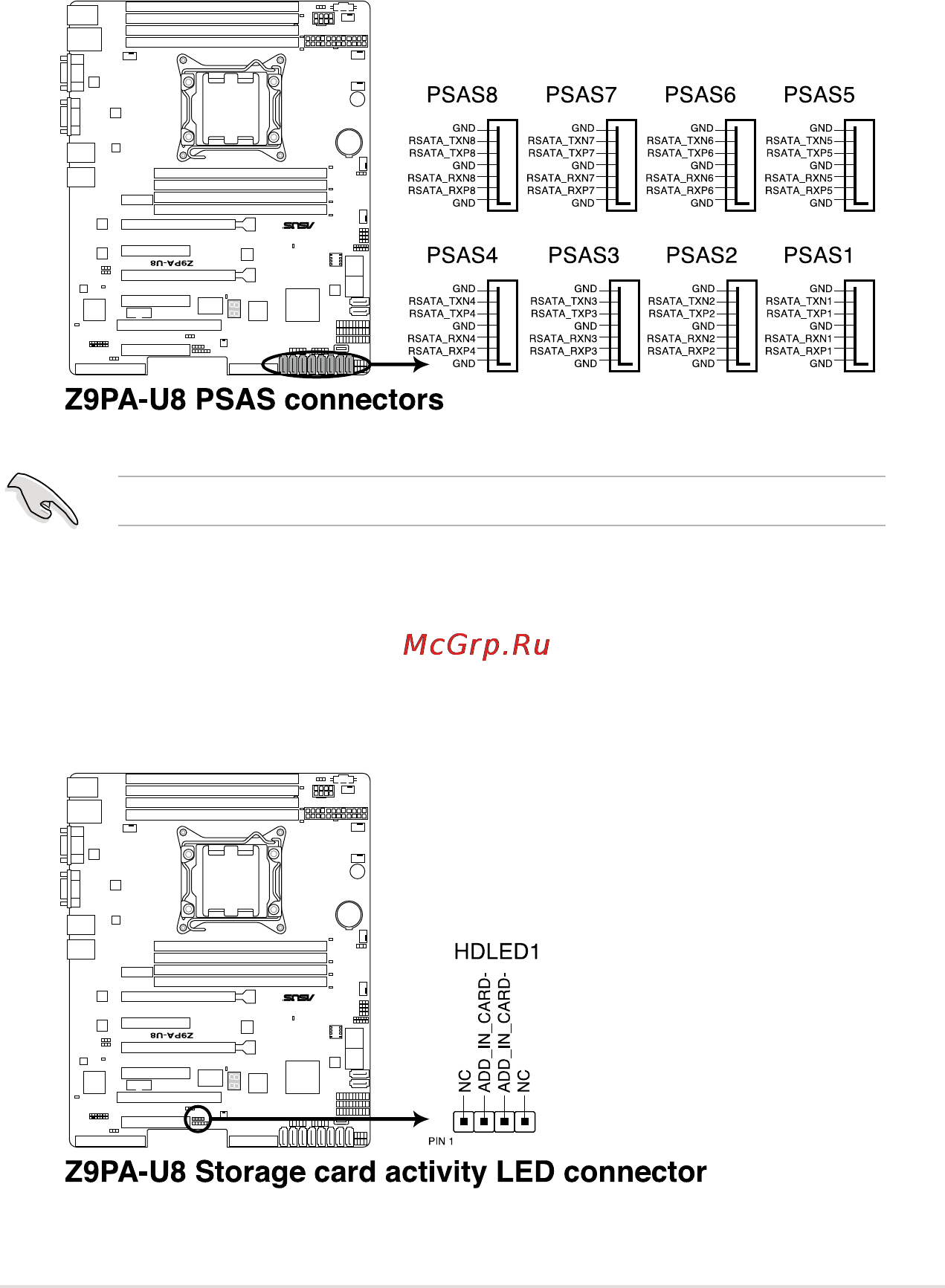

3. Hard disk activity LED connector (4-pin HDLED1)

This LED connector is for the storage add-on card cable connected to

the SATA or SAS add-on card. The read or write activities of any device

connected to the SATA or SAS add-on card causes the front panel LED to

light up.

2. PSAS connectors (PIKE required)

SAS connector - PSAS connectors are for the SAS signal cables for SAS

hard disk drives that allows up to 6Gb/s of data transfer rate.

If you installed SAS hard disk drives, you can create a RAID 0, RAID 1, RAID

10, or RAID 5 conguration.

The actual data transfer rate depends on the speed of SAS hard disks installed.
