2-32 Chapter 2: Hardware information

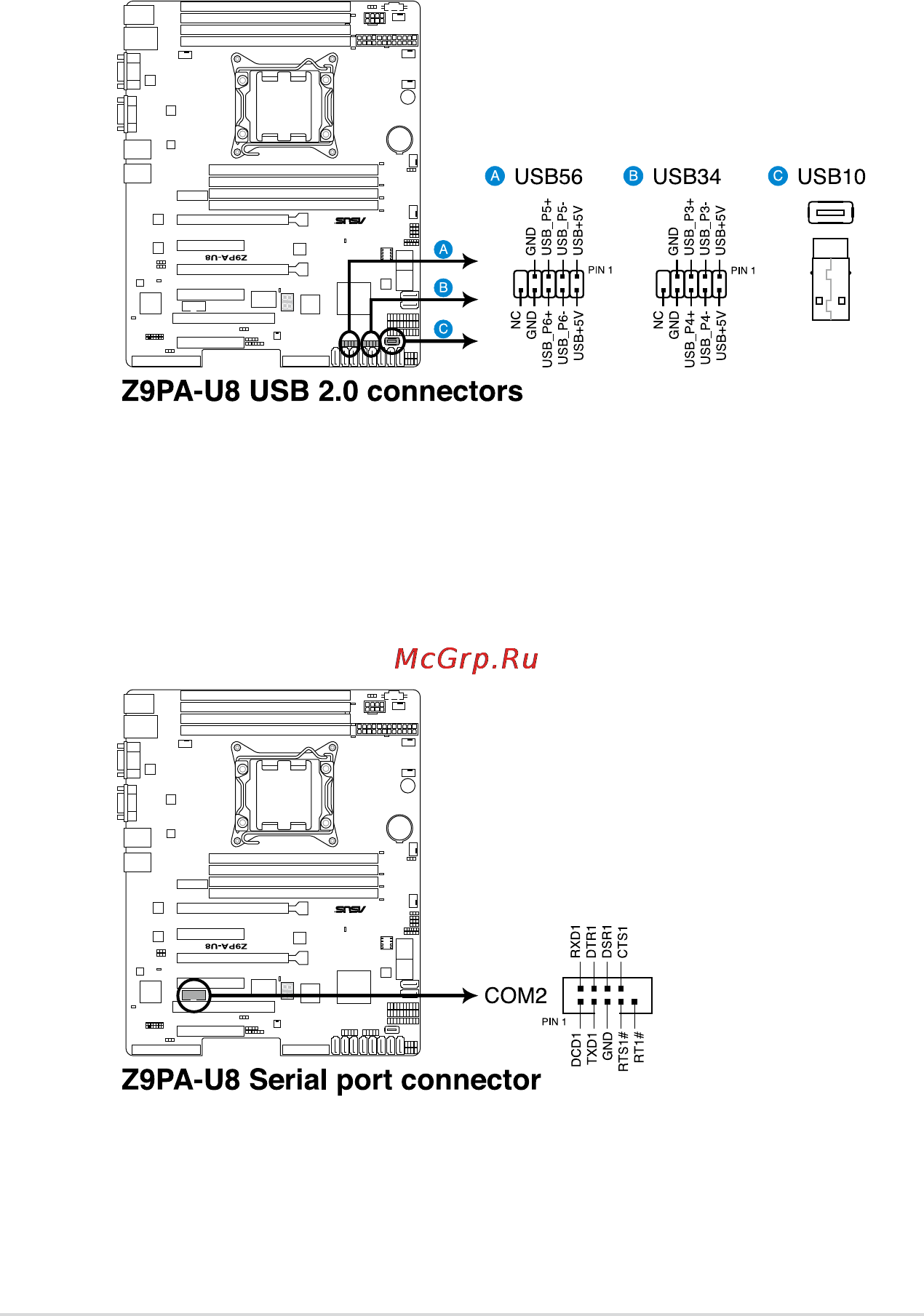

4. USB connectors (10-1 pin USB34, USB56; A-Type USB10)

These connectors are for USB 2.0 ports. Connect the USB module cables to

connectors USB34 and USB56, then install the modules to a slot opening at

the back of the system chassis. These USB connectors comply with USB 2.0

specication that supports up to 480 Mbps connection speed.

5. Serial port connector (10-1 pin COM2)

These connectors are for the serial (COM) ports. Connect the serial port

module cable to one of these connectors, then install the module to a slot

opening at the back of the system chassis.
