Asus rog maximus vii ranger [171/200] Chapter 4

ASUS MAXIMUS VII RANGER

4-29

Chapter 4

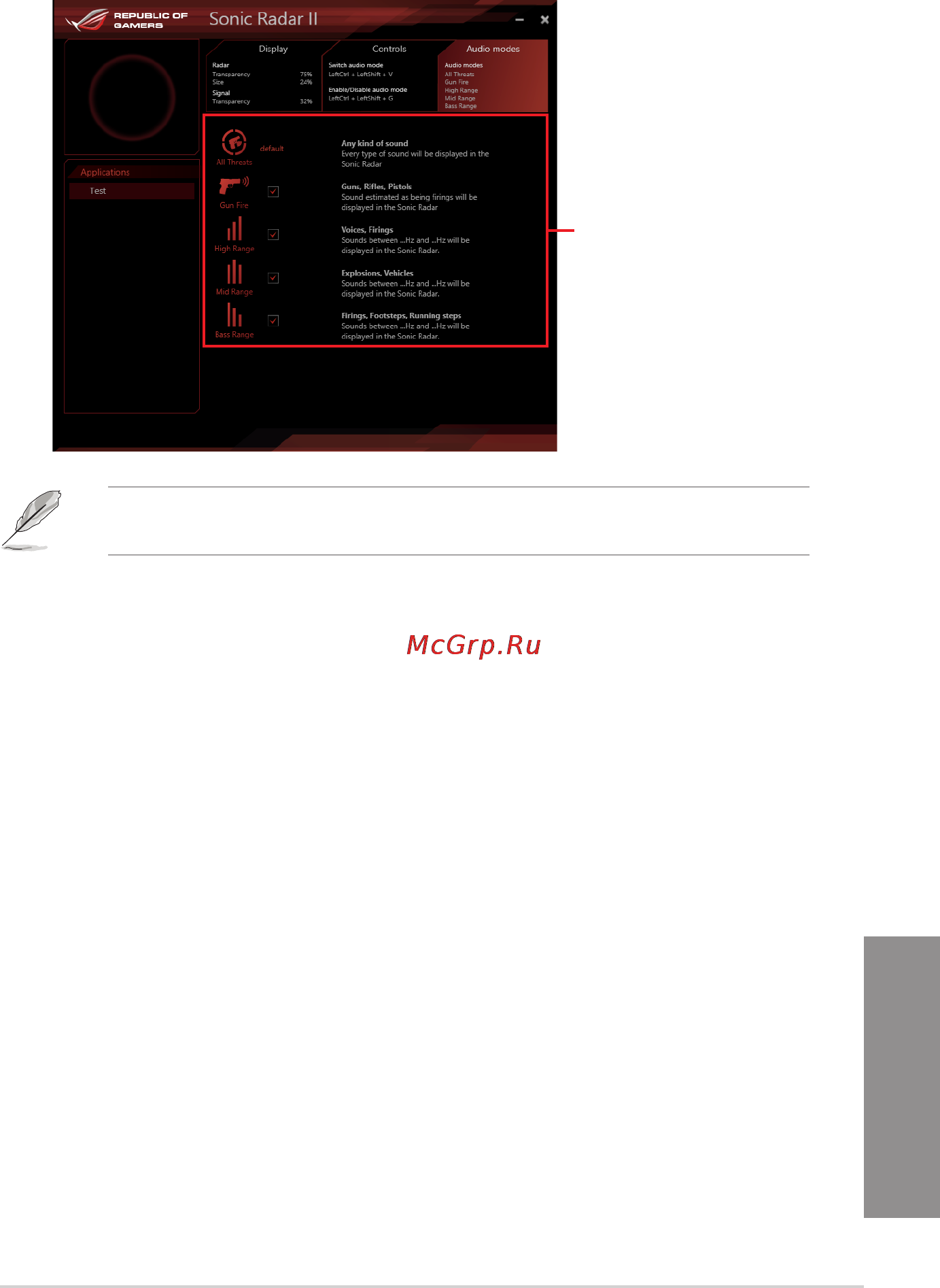

Audio Mode/Radar Selection menu

Allowsyoutocongurethesoundenhancers.

Tick to choose the

desired sound enhancer

AudioMode/RadarSelectionareenabledwithshortcutkeysinthegame.Refertothe

Controlstabformoreinformationabouttheshortcutkeysettings.
