Asus rog maximus vii ranger [61/200] Chapter 1

ASUS MAXIMUS VII RANGER

1-47

Chapter 1

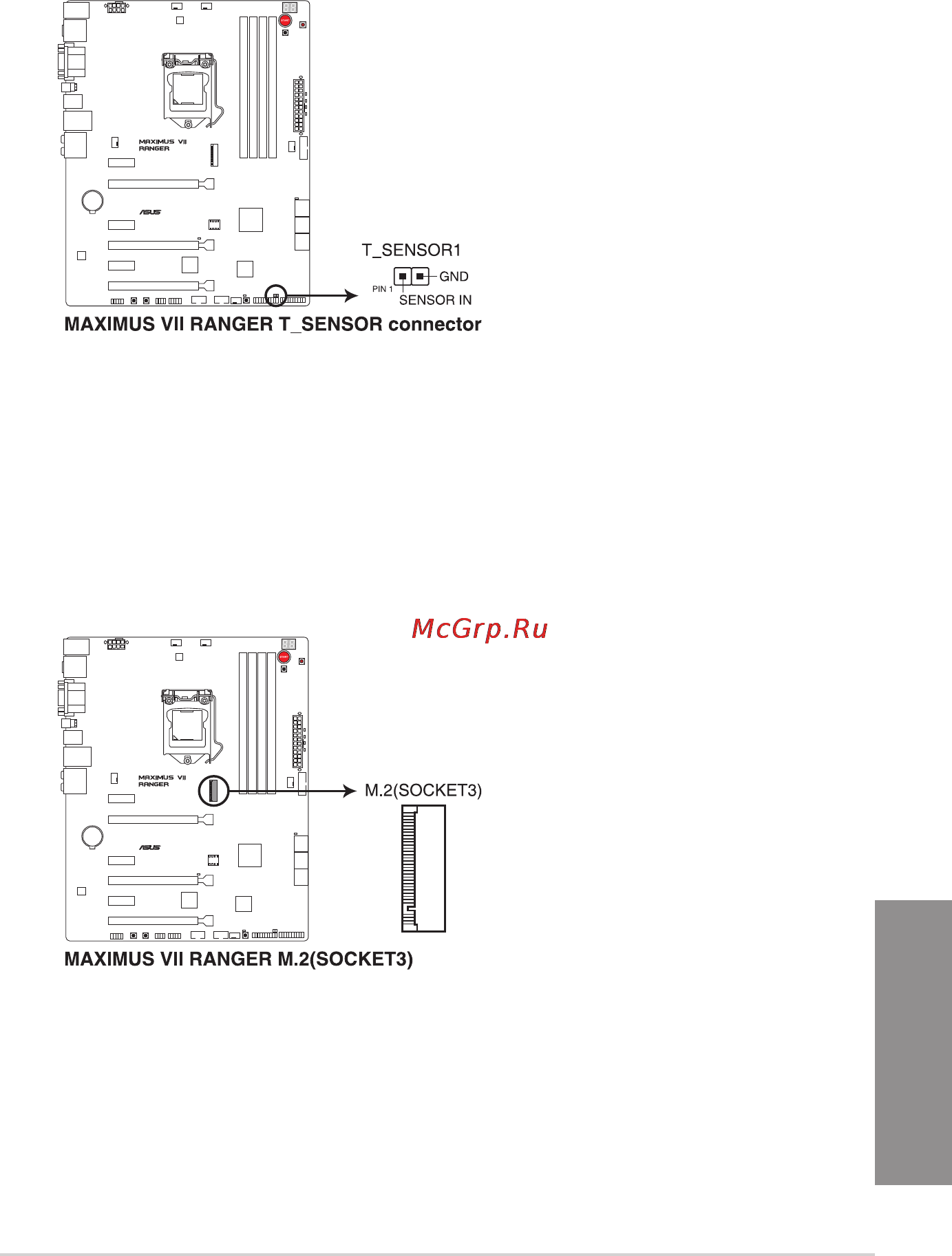

10. T_Sensor connector (2-pin T_SENSOR1)

This connector is for the thermistor cable that allows you to monitor the temperature of

your motherboard’s critical components and connected devices.

11. M.2 (Socket 3)

The M.2 (Socket 3) with M Key supports type 2260 (22 mm x 60 mm) and 2280

(22 mm x 80 mm) PCIe interface storage devices.
