Asus rog maximus vii ranger [43/200] Chapter 1

ASUS MAXIMUS VII RANGER

1-29

Chapter 1

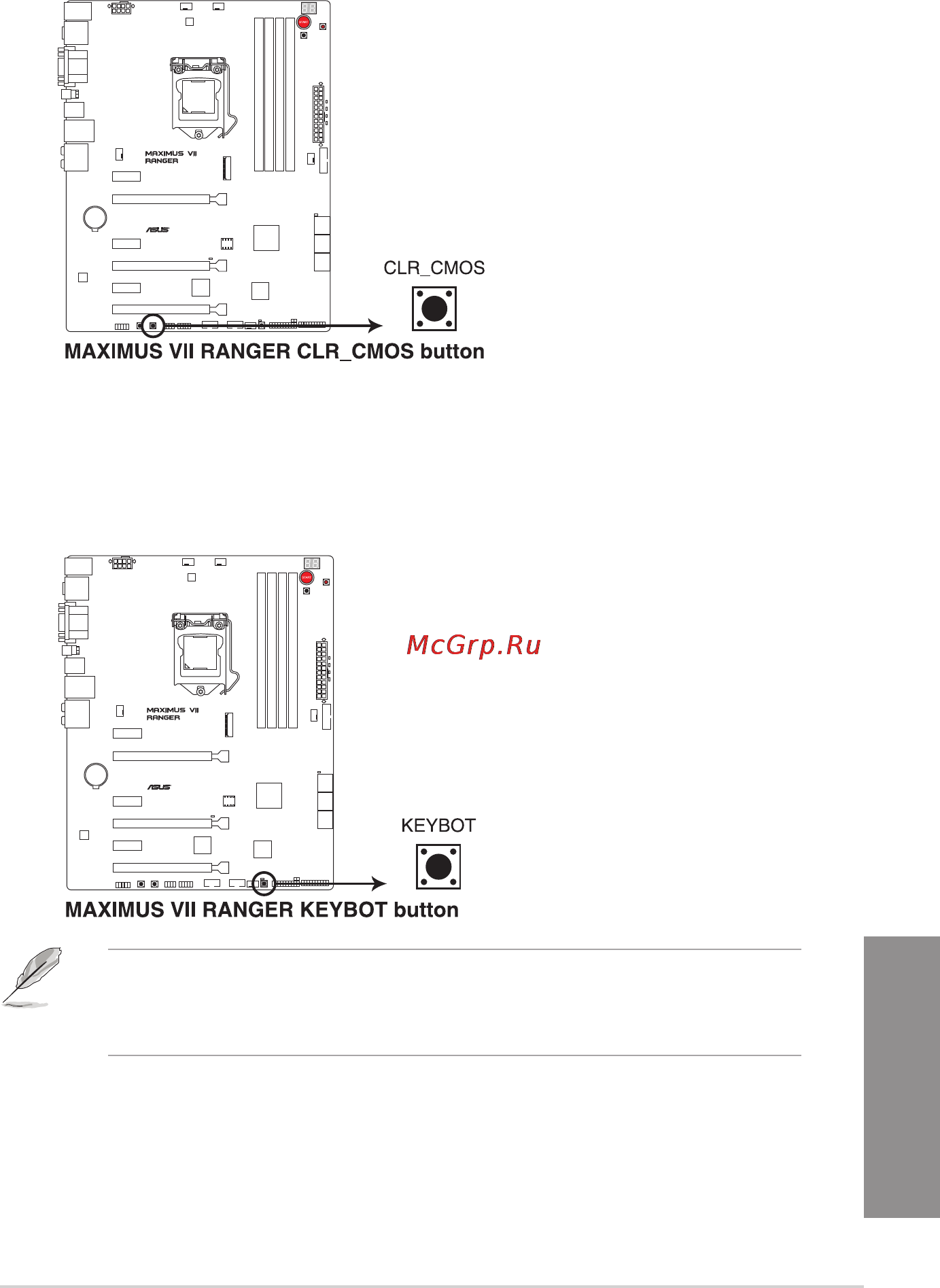

4. Clear CMOS button (CLR_CMOS)

Press this button to clear the BIOS setup information only when the systems hangs

due to overclocking.

5. KeyBot button (KeyBot)

Press this button to activate the KeyBot feature.

• The KeyBot feature supports USB keyboards only.

• For more information about the KeyBot feature, refer to the Software Support

chapter of this user guide.
