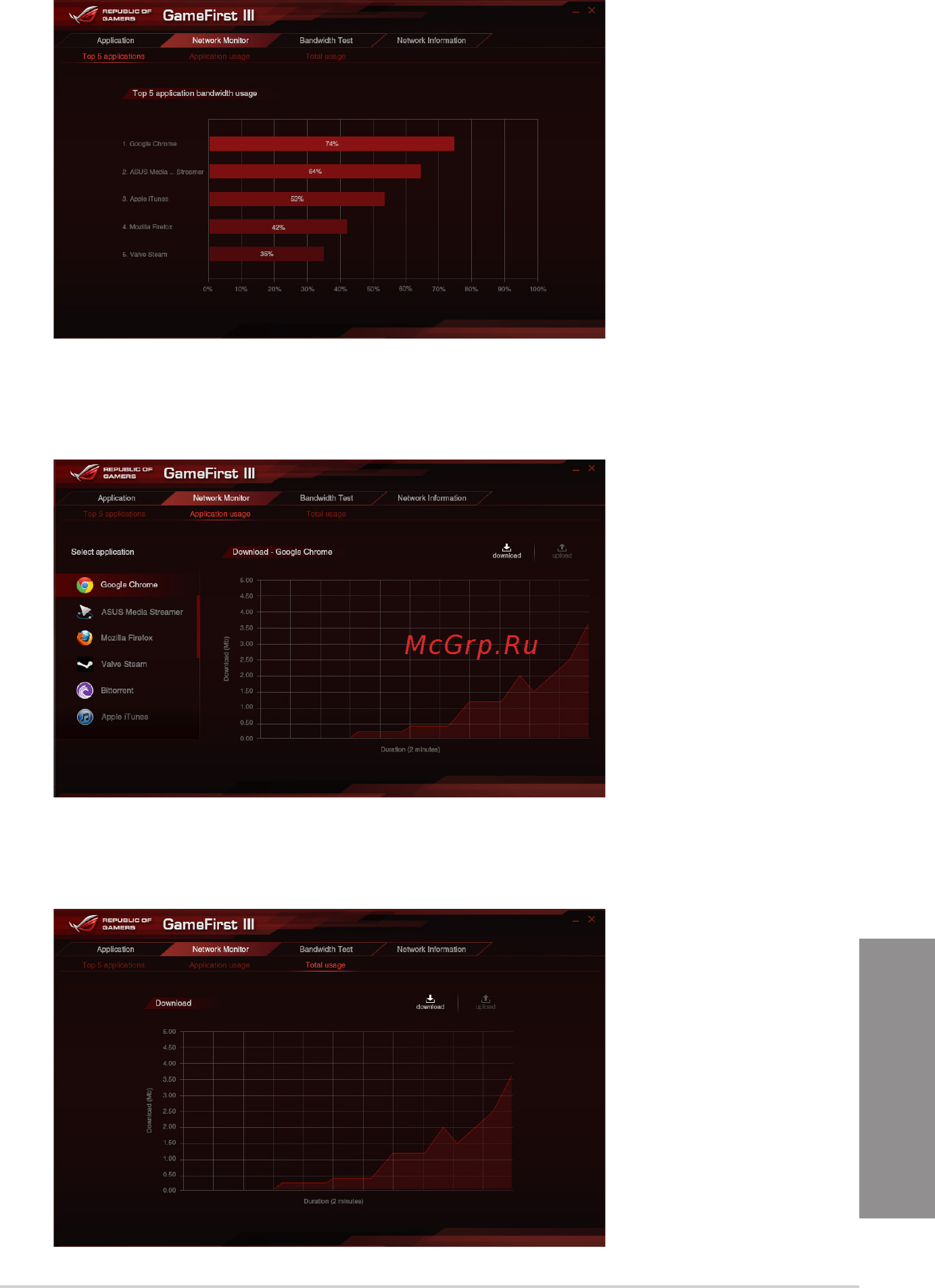

Asus rog maximus vii ranger [173/200] Chapter 4

ASUS MAXIMUS VII RANGER

4-31

Chapter 4

Network Monitor

Top 5 application

Displaysthetop5bandwidthconsumingapplicationscurrentlyused.

Application usage

Displaystheindividualdownloadinganduploadingbandwidthofcurrentlyusedapplications.

Total usage

Displaysthetotaldownloadinganduploadingbandwidthofthecurrentlyusedapplications.
