2-4
Chapter 2: Getting started
Booting the system to a DOS environment
1. Insert the DOS-bootable USB ash drive with the latest BIOS le and BIOS Updater to
your computer’s USB port.

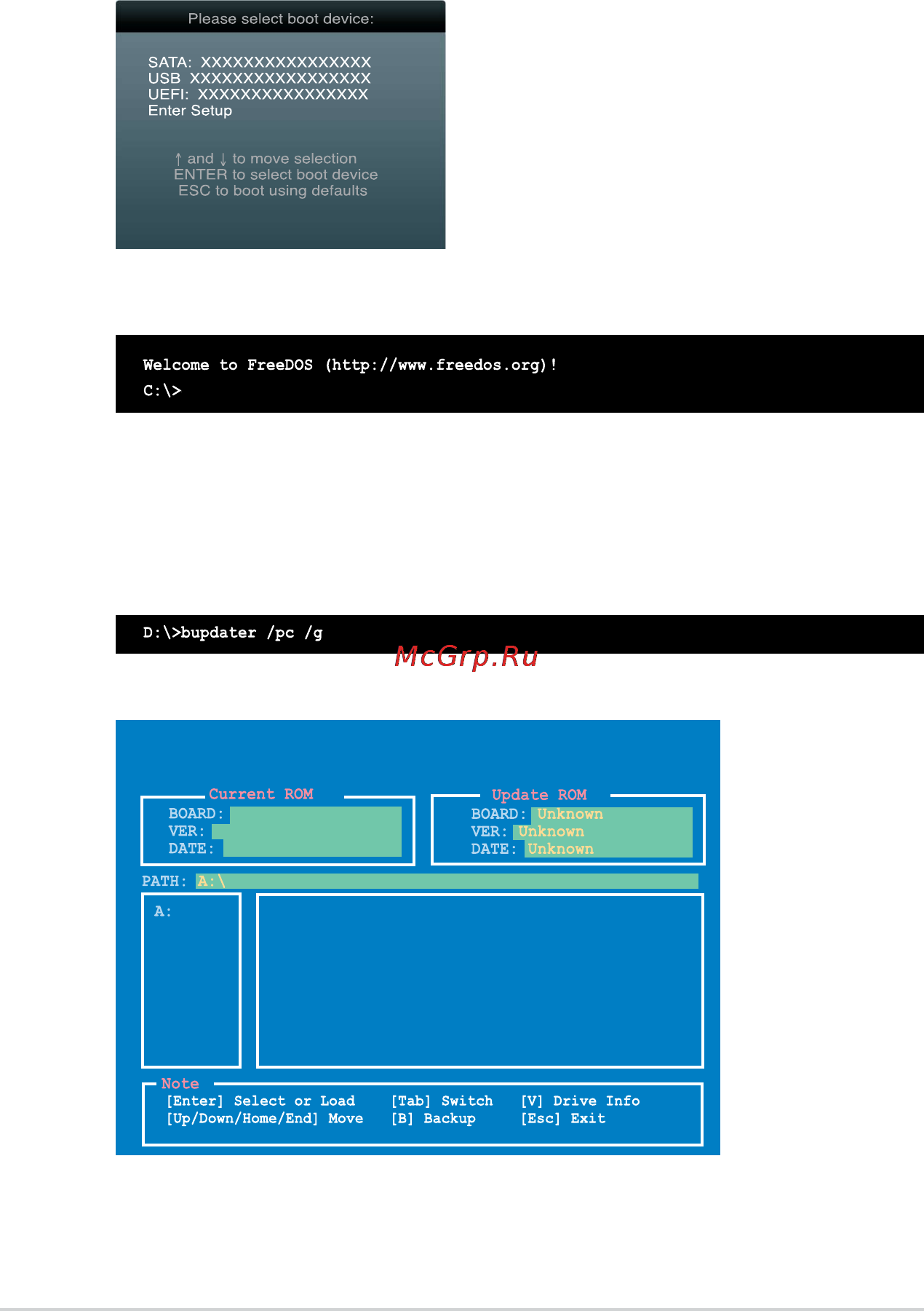

2. Boot your computer. When the ASUS Logo appears, press <F8> to show the
BIOS
Boot Device Select Menu.
3. Select the optical drive as the boot device. The DOS screen appears.
Updating the BIOS le
To update the BIOS le using BIOS Updater:
1. At the FreeDOS prompt, type
bupdater /pc /g and press <Enter>.
2. The BIOS Updater screen appears as below.
0208
H81M2.CAP 8390656 2013-09-02 15:25:48
09/02/2013
H81M2
ASUSTek BIOS Updater for DOS V1.30
