Asus x99-a/usb 3.1 [23/148] System memory

ASUS X99-A/USB 3.1

1-7

Chapter 1

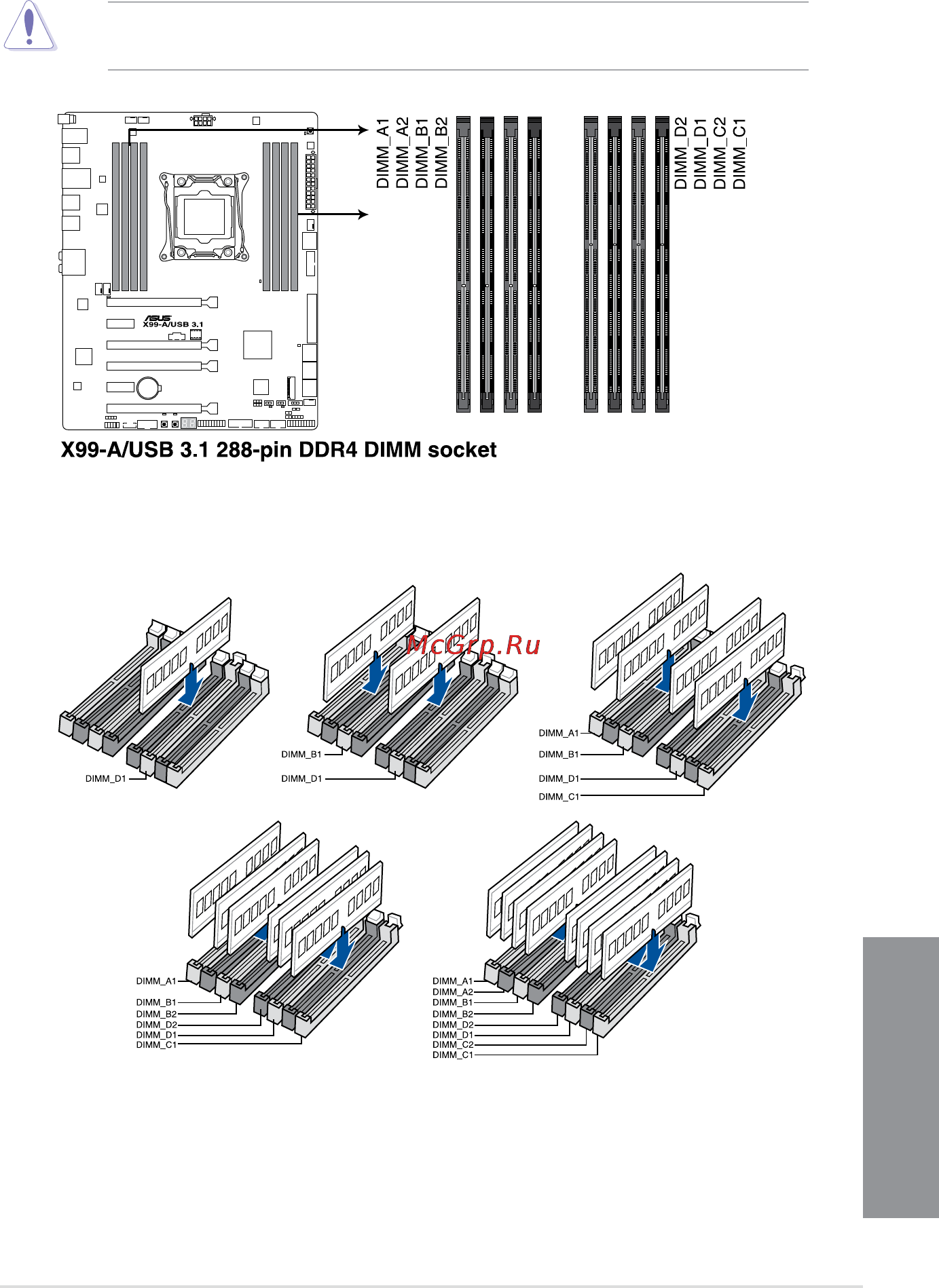

Recommended memory configurations

1.2.4 System memory

The motherboard comes with eight DDR 4 (Double Data Rate 4) Quad Inline Memory

Modules (DIMM) slots.

A DDR4 module is notched differently from a DDR, DDR2, or DDR3 module. DO NOT

install a DDR, DDR2, or DDR3 memory module to the DDR4 slot.
